Lanscape Forms DQ209-01 Assembly Manual

Backdrop
glass whiteboard installation guide
Assembly Guide
DQ209-01
WHITEBOARD, 30IN HT
WHITEBOARD, 38IN HT

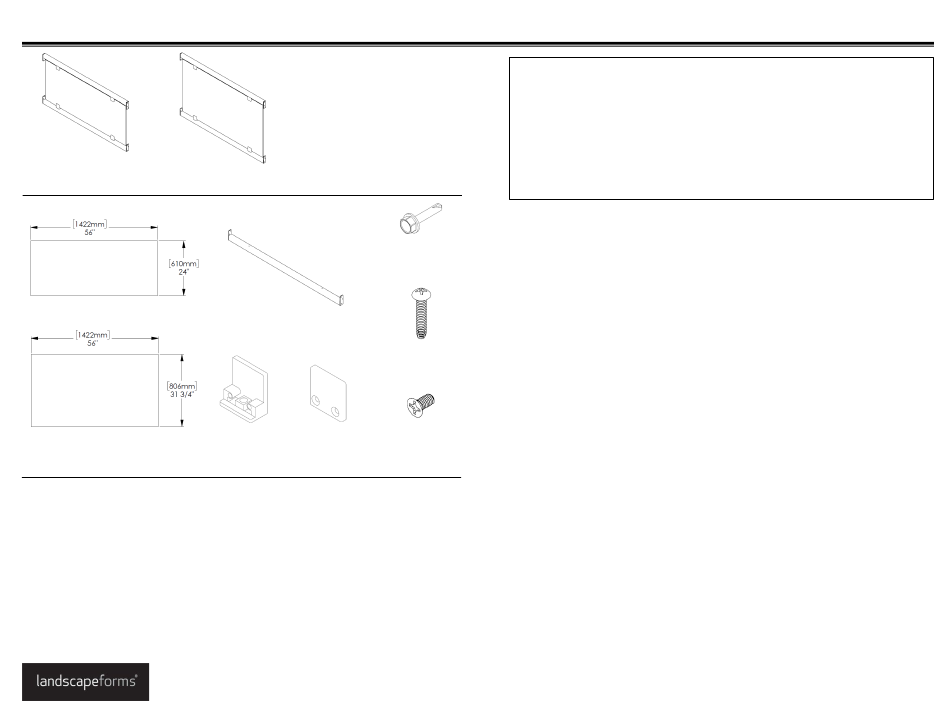

Included components:
30IN WHITEBOARD
– QTY 1
38IN WHITEBOARD
– QTY 1
Tools required for assembly
• Safety glasses
• 6ft level
• 5/16" wrench or socket
• Phillips head screwdriver
• Glass handling equipment
ASSEMBLE WITH CARE! Pangard II Polyester Powdercoat is a strong, long-lasting finish. To protect this finish
during assembly, place unwrapped powdercoated parts on packaging foam or other non-marring surface. Do
not place or slide powdercoated parts on concrete or other hard or textured surface – this will damage the
finish causing rust to occur. Use touch-up paint on any gouges in the finish caused by assembly tools.
DQ209-02
BRACE –
QTY 2
GLASS CLAMP –
GLASS BACK
QTY 4
CLAMP – QTY 4
INSTALLATION: Glass whiteboard panels are designed to be installed in front of
Backdrop wall panels. Panels cannot be installed on L-shaped walls. Refer to
specifier's plan drawings for location and design of Backdrop.
1. Attach glass braces to posts, see Fig. 1 and Fig. 2. Refer to specifier's plan for
mounting height of panel.
2. Attach larger half of glass clamp to braces, ensuring all clamps face to the same
side and are parallel to the brace, see Fig. 3.
3. Using proper glass handling equipment, position glass panel on clamps. Attach
back half of clamps with screws provided, see Fig. 4. Do not overtighten.
#12 x 7/8"HEX HD
THREAD FORMING
SCREWS - QTY 8
1/4-20 x 1-1/4"
PAN HD TAPPING
SCREW – QTY 4
M6 x 12mm
FLAT HD SCREW
QTY - 8
Date: February 8, 2023
www.landscapeforms.com Ph: 800.521.2546
Page 1 of 2
