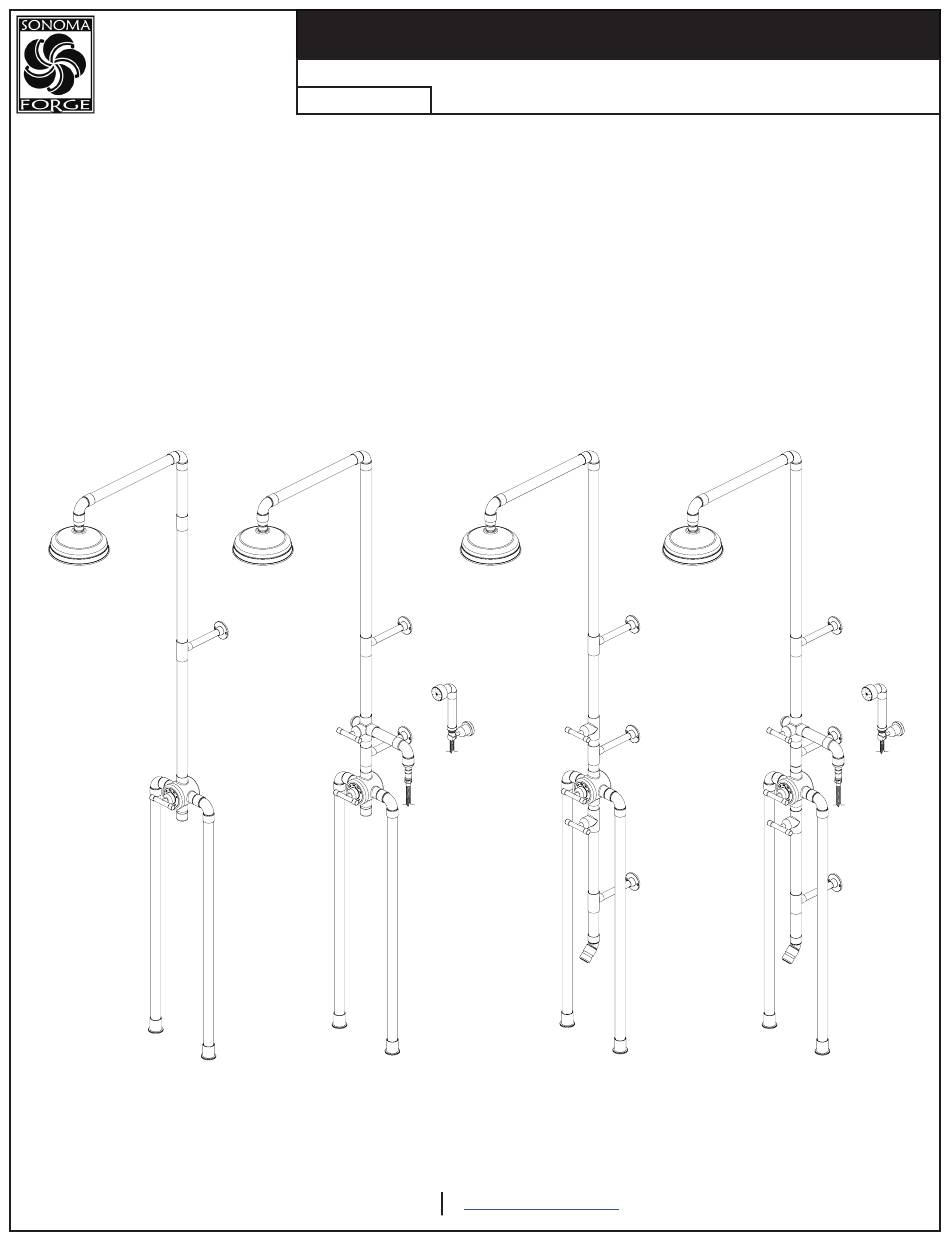

WaterBridge Exposed Showers are available in four standard floor-mounted configurations:
WB SHW 1240
WB SHW 1250
WB SHW 1270
WB SHW 1280
Model 1240
Page 1 of 5
August 2022
Rain head only
Rain head and hand shower
Rain head and foot wash
Rain head, hand shower, and foot wash
Model 1250
It is strongly recommended that this, and all fixtures,
be installed by a licensed professional plumber.
800.330.5553
WaterBridge Floor-Mounted Exposed
Model 1270
info@sonomaforge.com
INSTALLATION GUIDE
Thermostatic Showers
Model 1280
Advertisement
Summary of Contents for Sonoma WB SHW 1240
- Page 1 INSTALLATION GUIDE WaterBridge Floor-Mounted Exposed Thermostatic Showers August 2022 WaterBridge Exposed Showers are available in four standard floor-mounted configurations: WB SHW 1240 Rain head only WB SHW 1250 Rain head and hand shower WB SHW 1270 Rain head and foot wash...
-
Page 2: Trim Installation
INSTALLATION GUIDE WaterBridge Floor-Mounted Exposed Thermostatic Showers August 2022 These Waterbridge Exposed Showers are plumbed to Leg Riser 3/4” straight nipples, which are included with the 5/8” from system. The Shower employs compression fittings to Finished attach to nipples that have been stubbed out. The Floor or Cover Sleeve hot and cold lines should be plumbed 10”... -
Page 3: Final Check
INSTALLATION GUIDE WaterBridge Floor-Mounted Exposed Thermostatic Showers August 2022 Trim Installation 4) Install the Rain Head: Shower a) Unscrew the Collar from the top of the Rain Head. Rubber Washer b) Thread the Ball Joint into the Shower Arm using Ball Joint a 8mm Hex Wrench. - Page 4 INSTALLATION GUIDE WaterBridge Floor-Mounted Exposed Thermostatic Showers August 2022 Cartridge Calibration Due to differences in Pressures and Temperatures in Thermostatic your system the Thermostatic Cartridge will need to be Cartridge Calibrated in accordance with your Local Plumbing Trim Plate Codes and Standards. Friction 1) Removing Trim Washers...
-
Page 5: Care And Maintenance
August 2022 Care & Maintenance No abrasives should be used to clean Sonoma Forge products. Mild soap and water can be used, and 100% carnauba wax can be applied to protect the finish. All exterior plumbing should be winterized if freezing temperatures are expected..
