Summary of Contents for Durst Rho P10 200

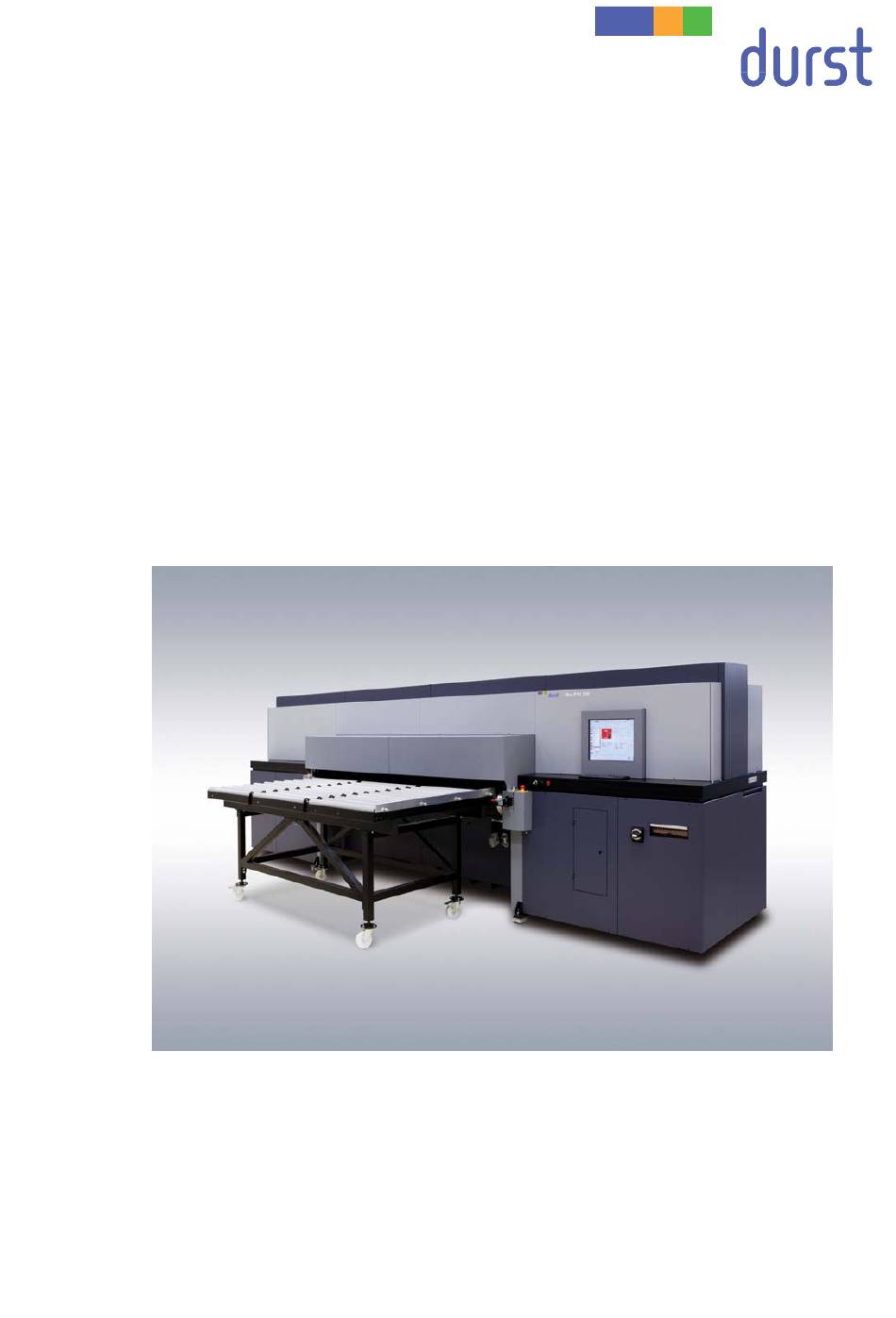

  • Page 1 Rho P10 200 Operating Instructions Issued 10/2013 Retain for future use! Original instructions...
  • Page 3 ..............118 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 4: Table Of Contents

    Avoiding damage to property....... . . 20 4 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 5 Switch-on times ..........51 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 6 Service intervals of the owner ....... . 75 Service intervals of Durst customer service ....78 Creating a backup .
  • Page 7 Index ............... 118 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 8: A About These Operating Instructions

    Potentially hazardous situation that, if not avoided, may result in property damage. The following typographical markings (e.g. bold) are used in these operating instructions for differentiating between types of information: 8 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 9: Structure Of Warnings

    Warnings are structured as follows (here: example for the warning level WARNING): Type and source of danger! Consequence of the danger Measure for avoiding the danger Read and observe the warnings. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 9 / 121...
  • Page 10: B Safety

    Provide the personnel with the stipulated protective equipment. Keep the warnings on the printer in a legible, visible and clean condition. Ensure sufficient lighting. 10 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 11: Safety And Monitoring Equipment

    3.3.1 Rating plate Fig. 1 Rating plate 3.3.2 Safety signs All safety signs attached to the printer must be observed. The safety signs have the following meaning: 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 11 / 121...
  • Page 12 Wear safety goggles Extremities can be crushed Extremities can be crushed Extremities can be crushed The component is energized even when the main switch is switched off 12 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 13 Warning on UV light  Switch off main switch before opening Warning on UV light Warning on UV light Warning on hot surfaces Warning on chemical substances 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 13 / 121...
  • Page 14: Ambient Conditions

    The UV lamp protection prevents reflected light from drying out the ink in the print head, thus damaging it. The UV lamp protection may therefore not be removed. 14 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 15: Connection Of External Devices

    Before carrying out work on the UV lamp head, wait at least half an hour after the unit has been switched off until the UV lamps have cooled down. During print head maintenance, do not touch UV lamps. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 15 / 121...
  • Page 16: Electrical Energy

    Do not grip the ends of the axes. 8.5 Contact with ink Coming into contact with ink is harmful to your health. Sources of danger include: 16 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 17: Ozone Buildup

    There is a danger of falling when climbing components of the printer. Components can also be damaged. Do not use components of the printer as climbing aids. 8.9 Weights Falling media present the following dangers: 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 17 / 121...
  • Page 18: Protective Equipment

    Refill filter – Ink filter  Information on proper disposal of Durst inks can be found on the data sheet for media safety contained in the ink refilling set or which can be obtained from Durst Phototechnik AG. 18 / 121...
  • Page 19: Emergencies

    12.3 Switching on the printer again after an emergency stop 12.3.1 Reactivating an Emergency-Stop switch 1. Turn Emergency-Stop switch to the right.  Emergency-Stop switch pops out 2. Switch on printer. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 19 / 121...
  • Page 20: Faults

    2. Do not soil the conveyor belt. 3. Do not clean the conveyor belt with aggressive cleaning fluids. 4. Remove soiling from the conveyor belt only by means of adhesive tape. 20 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 21: Media

    Moist, sticky printed media  Unhardened ink on components of the printer Change UV lamps according to the specified intervals (→ Page 75 / Service). 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 21 / 121...
  • Page 22: C Description

    UV lamp head (1) dry the ink on the medium. 1.1 Heavy Roll Tool 30 (optional) Using the Heavy Roll Tool 30, roll media weighing up to 300 kg can be loaded. Task 22 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 23: Light Roll Tool (Optional)

    1.2 Light Roll Tool (optional) Roll media up to a weight of 70 kg are loaded with the Light Roll Tool. Task 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 23 / 121...
  • Page 24: Workstation

    The roll medium is lead through the printer over the rredirection roller (2) and wound on the winding unit on the unloading side. 1.3 Workstation The printing process is controlled and monitored at the workstation. Task 24 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 25: Ink Supply Unit

      Initiation of the printing process 1.4 Ink supply unit The ink supply unit provides the print heads with ink of different colors. Task 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 25 / 121...
  • Page 26: Cleaning System

    1.5 Cleaning system The purging system is used for automatic and manual purging of the print Task heads. 26 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 27: Workflow

    files for printing. The prepared images files are then transferred to an input queue of the printer via the network. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 27 / 121...
  • Page 28 The operator selects or checks the desired print options at the operating panel of the printer. He/she then adds the image files to the printing queue. The image data is printed automatically in succession there. 28 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 29: D Transport, Installation And Commissioning

    Rho P10 200 D Transport, installation and commissioning D Transport, installation and commissioning Transport, installation and commissioning are performed by service technicians authorized by Durst Phototechnik AG. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 29 / 121...
  • Page 30: E Operation

    The ink heating is switched off.  The UV lamp system is switched off. 15. Close all doors to prevent ambient light from shining in. 30 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 31: Main Operating Elements And Displays

    The printer is only switched off at the main switch for maintenance or a longer standstill.  The workstation is still supplied with power when the printer is switched off at the main switch. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 31 / 121...
  • Page 32: Workstation

    Connection of an incompatible device to the workstation! Damage to the workstation Connect only SELV-compatible devices to the workstation. Connect a USB stick/USB hard disk to the USB port of the computer. 32 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 33: Heavy Roll Tool 30 (Optional)

    3. Connect power cable to the connector on the unwinding unit and to the connector on the printer (1). 4. Attach connecting cable (2) to the connectors on the unwinding and winding units. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 33 / 121...
  • Page 34: Operating Drives Of The Unwinding And Winding Units

    2. Press and hold the FORWARD or REVERSE button as long as desired. 4.2.3 Moving unwinding or winding unit up or down Press and hold the UP or DOWN button as long as desired. 34 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 35: Roller Table (Optional)

    – Activate Board. – Deactivate Mechanical Front Stop. – If several media are to be loaded one after another: Activate Manual Continuous Feeding. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 35 / 121...
  • Page 36 2. Lay medium right-aligned on the conveyor belt.  An acoustic signal sounds as soon as the medium contacts the sensor of the mechanical stop. 36 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 37 Enter the number of rows. 5. Lay further media on the roller table while the media are being drawn in.  The media are transported automatically to the printer. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 37 / 121...
  • Page 38: Loading Roll Medium With Heavy Roll Tool 30

    3. Rotate lever (1) to the horizontal position to decouple the roll mount from the drive. 4. Turn roll mount manually until the groove (3) faces upward. 38 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 39 7. Move unwinding unit to the top position. Allow the axis ends to slide into the grooves and take the roll upward. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 39 / 121...
  • Page 40 6.2.3 Inserting empty core on the unloading side Insert empty core to wind up the roll medium in the same manner as the roll medium on the loading side. 40 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 41 – Loosen set screw (1). – Move tensioning roller (3) upward with crank (2). – Secure tensioning roller with set screw. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 41 / 121...
  • Page 42 5. Return tensioning rollers to bottom position on unloading and loading sides. 6.2.5 Aligning the roll medium Carry out the following measures on both the loading and unloading sides. 42 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 43 2. To secure the roll on the axis, place air blow gun on valve and fill compressed air into valve.  The roll is secured to the axis via the locking jaws. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 43 / 121...
  • Page 44 Set the roll-end sensor (1) on the unwinding unit to the desired height. 6.2.7 Commissioning unwinding and winding units Carry out the following measures on both the loading and unloading sides. 44 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 45: Loading Roll Medium With Light Roll Tool

    (1). 6.3 Loading roll medium with Light Roll Tool A roll media is loaded with the Light Roll Tool in the following steps: 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 45 / 121...
  • Page 46 When loading the roll, do not grip the ends of the axes. 1. Insert the axis into the core of the roll. 2. Push core onto the flange provided for this purpose. 46 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 47 Tighten set screws on both flanges to secure the position of the roll. 6. Close protective cover. 7. Switch on motor using the switch (1). 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 47 / 121...
  • Page 48 Ensure that the printing length is suitable for the media length. 1. Load roll medium centrally into the printer. 2. Ensure that central loading is activated in the desired media channel. 48 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 49: F Software

    1 Basic functions 1.1 Installation You can install the software either via the Durst FTP server or from a CD/DVD. During the initial installation, you will have to enter the license number after starting the software in order to access all functions.
  • Page 50: The Status Bar

    1.4.3 Modifying parameters Parameters can be changed on many tabs. The basic procedure is as follows: 1. Press Edit. 2. Modify desired parameters. 3. Press Save. 50 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 51: Configuration

    In order to use the auto timer, the printer must be switched on and initialized. The switch-on times use the system time of the work station for reference. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 51 / 121...
  • Page 52: Input Queue

    52 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 53: General Basic Setup Options

    The selected media family is deleted with the Delete button. Delete 2.4 General basic setup options Define the following settings on the General tab:  Language  Units Validation   Media Transport Options 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 53 / 121...
  • Page 54: Operating Printer Functions

    Special printing options settings are printed at the lower left-hand border of the image. This function must be activated if test images are sent to Durst customer service for assessment. Only then are the settings comprehensible. When the function is activated, a flashing indicator appears on the status bar.
  • Page 55 Position selection list, you specify the image line on which the respective test image is to be printed by repeatedly loading the medium. The software calculates the required advance automatically. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 55 / 121...
  • Page 56: Purging Functions

    Under Colors, you select the print heads to be rinsed during the purge cycle. Colors 3.3 Maintenance The Schedules tab provides an overview of all service activities described in the "Service" chapter (→ Page 75 / Service). 56 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 57: Ink Batch Tracking

    Archiving test images 3.4 Ink batch tracking You can document the refill date, color and batch number of the ink on the Ink Batch Tracking tab. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 57 / 121...
  • Page 58: Changing Uv Lamps

    3.5 Changing UV lamps You can document the changing of the UV lamp on the UV Bulb Exchanges tab. Fig. 27 UV Bulb Exchanges tab 58 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 59: Managing Media Channels

    Edit The selected media channel is deleted with the Delete button. Delete 4.2 Medium type You can define the following parameters on the Type sub-tab: 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 59 / 121...
  • Page 60: Media Specification

    As soon as the plate medium is located under the feed rolls, the feed rolls move downward. 4.3 Media specification You can define the following parameters on the Specifications sub-tab: 60 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 61 Feed Roll Distance: You can change the contact pressure on the medium via the spacing of the transport rollers. With a value of "0", the contact pressure is at its maximum. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 61 / 121...
  • Page 62: Standard Settings For Jobs

    Not all parameters of existing media channels can be edited. The entry boxes for parameters which cannot be edited are deactivated. To edit these parameters, you must create a new media channel. 1. Press Media. 62 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 63: Printing

    As soon as a job is transferred from the RIP server to the workstation, it appears in one of the corresponding input queues. You define the printing parameters on the Basics, Print Options, Borders/Alignment and Size sub-tabs. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 63 / 121...
  • Page 64 Define the following basic settings on the Basics sub-tab:  Job name  Media channel  Number of copies Maximum number of images in a row and rows per page  64 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 65 You can define the following parameters, among others, on the Print Options sub-tab:  Quality level  Print Direction  Surface  Print refinement and special effects 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 65 / 121...
  • Page 66 Durst recommends this function if you have selected Unidirectional. 5.1.3 Image border and alignment You can define the following parameters, among others, on the Borders/Alignment sub-tab:  Border distances  Alignment  Oversize 66 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 67 The printable area is defined by the media margins you entered on the Specifications sub-tab under Media Margins. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 67 / 121...
  • Page 68 Medium border Image Fig. 35 Borders (schematic example) In the Horiz. Spacing, Vert. Spacing input fields, always enter the horizontal or vertical spacing between the images. 68 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 69 Printing then occurs in the image border, image spacing or medium border by the oversize value. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 69 / 121...
  • Page 70 Overprinting with images with borders (schematic example) 5.1.4 Image section You can change the image crop of the ripped image on the Size sub-tab. Slider Fig. 38 Size sub-tab 70 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 71: Printing Queue

    You can change the order of jobs in the queue, delete jobs from the queue and initiate the printing process here. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 71 / 121...
  • Page 72: Borderless Printing

    Press Stop. To stop the printing process after completion of the current job: Press Stop Queue. 5.3 Borderless printing There are two options for borderless printing: 72 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 73 There is no visible effect in this case. The second option (rip image larger and cut to size) is less susceptible to error for this reason. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 73 / 121...
  • Page 74: G Faults

    G Faults Rho P10 200 G Faults Faults are indicated by a message in the software. 74 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 75: H Service

    Protective switches – Housing covers – UV lamp protection Every 2 days Clean air filter of the aerosol extractor (→ Page 87 / Cleaning aerosol extractor). 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 75 / 121...
  • Page 76 filter). Every 6 months Create a backup (→ Page 78 / Creating a backup). Change lubricating plates (→ Page 83 / Changing lubrication plates). 76 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 77 Clean ventilator of the aerosol extractor (→ Page 87 / Cleaning aerosol extractor). In case of fault or defect Check fuses and, if necessary, have replaced by Durst customer service. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 77 / 121...
  • Page 78: Service Intervals Of Durst Customer Service

    Durst recommends backing up the following files on a regular basis:  DurstPrinter.setup: Contains all printer-specific parameters  durst.db: Contains all setting data (e.g. media channels, media transport settings, software validation) 78 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 79: Refilling Ink

    Avoid allowing ink to come into contact with skin and eyes. Do not use inks containing solvents. Unsuitable ink! Damage to the print heads Use only Durst ink. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 79 / 121...
  • Page 80 ✔ The cubitainers are located in the loading compartment Starting refilling procedure 5. Once the ink has been identified correctly, remove the respective fill hose from the park position. 80 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 81: Cleaning Conveyor Belt

    Do not clean the conveyor belt with aggressive cleaning fluids. Remove soiling from the conveyor belt only by means of adhesive tape. Remove soiling from the conveyor belt by means of adhesive tape. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 81 / 121...
  • Page 82: Emptying Catch Tank

    7 Lubricating carriage guide Tools/Accessories:  Lubricating oil Klüber LAMORA D220  Specified cleaning cloth 1. Move the print carriage to the left. 2. Switch off printer. 82 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 83: Changing Lubrication Plates

    7. Clean and lubricate the remaining areas of the rails in the same manner. 8 Changing lubrication plates Tools/Accessories:  Specified cleaning cloth  Specified oil  4 lubricating plates 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 83 / 121...
  • Page 84 5. Place new lubricating plates on the ends of the guide rails and move them to the print carriage. 6. Tighten screws on the lubricating plates. 84 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 85: Lubricating Print Head Height Adjustment Spindle System

    Both air filters are checked and changed in the same way: Energized components, even when the printer has been switched off! Risk of death via electric shock Switch off printer with the main switch. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 85 / 121...
  • Page 86 4. Push print head carriage to a suitable position. 5. Loosen fastening screw (1) at the air filter holder (2). 6. Pull out air filter holder. 7. Check air filter for soiling. 86 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 87: Cleaning Aerosol Extractor

    Wear safety goggles. Avoid allowing ink to come into contact with skin and eyes. 1. Initialize printer.  Print carriage moves upward. 2. Switch off printer. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 87 / 121...
  • Page 88 5. Remove air filter (3). 6. Clean air filter with water or change if heavily soiled. 7. Remove retaining plate (1). 8. Clean retaining plate. 88 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 89: Cleaning The Vacuum Ventilator Air Filter

    Contact with ink! Health hazard Wear protective gloves. Wear safety goggles. Avoid allowing ink to come into contact with skin and eyes. 1. Switch off printer. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 89 / 121...
  • Page 90: Changing The Air Filter For Fusion Board Cooling

    Contact with ink! Health hazard Wear protective gloves. Wear safety goggles. Avoid allowing ink to come into contact with skin and eyes. 1. Switch off printer. 90 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 91: Changing Main Ink Filter

    The main ink filters prevent the print heads from being damaged by soiled inks. Tools/Accessories:  Protective gloves  Protective goggles  Specified cleaning cloth  Specified ink filters 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 91 / 121...
  • Page 92 Before opening, wrap cleaning cloth around connection. 1. Switch off printer. 2. Screw off cover plate. 3. Screw off fitting of top connection and detach hose of the ink filter. 92 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 93: Checking Fuses

    9. Dispose of used ink filters according to local regulations. 15 Checking fuses Wrong fuses! Damage to the printer Allow only Durst service technicians to change fuses. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 93 / 121...
  • Page 94: Changing Uv Lamp

    Switch off printer with the main switch. Hot surfaces! Risk of burns Wait at least half an hour after switching off until the UV lamps have cooled down before attempting replacement. 94 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 95 5. Unscrew fastening screws (1) on the cover of the UV lamp holder (2). 6. Pull out UV lamp holder. 7. Set UV lamp holder (1) down on a surface. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 95 / 121...
  • Page 96 11. Connect cables to the luster terminals. 12. Push UV lamp holder into the UV lamp head. Installing UV lamp holder 13. Insert fastening screws and tighten. 96 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 97: Cleaning Outlet Hole Of Purge Unit

    Clean outlet hole (1) on the purge tray and ensure that the ink can drain. 18 Cleaning encoder ruler Tools/Accessories:  Protective gloves  Protective goggles  Specified cleaning cloth  Isopropyl alcohol 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 97 / 121...
  • Page 98 4. Carefully wipe encoder ruler (1) with the cleaning cloth in the vertical direction. 5. Move print carriage to the right manually. 6. Clean the rest of the encoder ruler in the same way. 98 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 99: Cleaning Electrodes Of The Anti-Static Unit

    1. Clean ink residue from suction holes (1) on both sides of the conveyor belt with a knife. 2. Pierce through suction holes with a thin tool to open them up. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 99 / 121...
  • Page 100: Checking Suction Pressure Of The Conveyor Belt

    22 Checking lung filter for proper seal 1. Initialize printer.  Print carriage moves upward. 2. Switch off printer. 3. Move print carriage on unloading side to the right. 100 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 101 Rho P10 200 H Service 4. Screw off left-hand housing cover (1) on the loading side. 5. Screw off cover (1). 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 101 / 121...
  • Page 102: Print Head Maintenance

    H Service Rho P10 200 6. Check filter visually: If there is fluid in the hoses (1), notify Durst customer service. 23 Print head maintenance 23.1 Required tools/accessories  Protective gloves  Protective goggles  Cleaning cloths (WW3009)  Cleaning solution (Rho Faceplate Solution 1) ...
  • Page 103: Preparation And Completion Of Cleaning

    1. Press Printer > Purge in the software. 2. Under Purge Cycle, press Long, Short or Wipe Only as required.  The UV lamps are switched off automatically. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 103 / 121...
  • Page 104 2. In the software dialog window, choose whether a test image is to be printed or the cleaning process is to be completed without a test image. 104 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 105: Wiping The Print Heads

    ✔ Cleaning has been prepared for (longer or shorter purge cycle) Contact with ink! Health hazard Wear protective gloves. Wear safety goggles. Avoid allowing ink to come into contact with skin and eyes. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 105 / 121...
  • Page 106 Clean print heads with the specified cleaning cloths and cleaning solution only. 1. Pour cleaning solution into dispenser bottle. 2. Saturate cleaning cloth with cleaning solution. 106 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 107: Suction-Cleaning Soiled Nozzles

    4. Print to stabilize the nozzles. 23.5 Suction-cleaning soiled nozzles Soiled nozzles can be vacuumed out either with the integrated vacuum system or a syringe. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 107 / 121...
  • Page 108 ✔ The cleaning is prepared (software: Wipe Only) Contact with ink! Health hazard Wear protective gloves. Wear safety goggles. Avoid allowing ink to come into contact with skin and eyes. 108 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 109 Rho P10 200 H Service 1. Place a new silicone tube on the vacuum hose. 2. Open valve (1). 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 109 / 121...
  • Page 110 If the valve is not closed after vacuuming, the vacuum for degassing the ink drops off. This could cause nozzles to fail during printing. 5. Close valve. 110 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 111 2. Vacuum off print head at the location of the dirty nozzles by drawing out the syringe piston. When doing so, move syringe back and forth approx. 2 cm several times. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 111 / 121...
  • Page 112: Cleaning The Printing Plate

    23.7 Documentation of the print head state 23.7.1 Documenting the state of the print heads 1. Create a test image with the date and serial number of the printer. 112 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 113: Disposal

    24.1 Disposing of ink, cleaning cloths and refill tanks Dispose of ink, cleaning cloths and air filters in an environmentally friendly way according to local regulations. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 113 / 121...
  • Page 114: I Decommissioning And Disassembly

    I Decommissioning and disassembly Rho P10 200 I Decommissioning and disassembly Decommissioning and disassembly are performed by service technicians authorized by Durst Phototechnik AG. 114 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 115: J Appendix

    1.2 Print specifications Parameter Value Printing mode DraftMode 205 m HighSpeed 110 m 2 passes 60 m 3 passes 40 m 4 passes 30 m 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 115 / 121...
  • Page 116: Media Specifications

    Value Type HP workstation 2 GB Hard disks  Separate hard disks for system and image data  At least 146 GB for image data 116 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 117: Requirements Of Location

    Hardware service contract Rho Hardware Contract 3 CE Declaration of Conformity The CE Declaration of Conformity is attached to the User Manual as an appendix. 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 117 / 121...
  • Page 118: Index

    63 cleaning 81 Language Description setting 53 components 22 License main operating elements 31 entering code 49 Emergency Loading behavior in 19 medium 35 Emergency-stop 118 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 119 Printing Queue overview 65 overview 71 Units Protective equipment setting 53 overview 11, 18 UV lamp Purge cycle changing 94 carrying out 102 changing filter 85 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 119 / 121...
  • Page 120 105 Validation Wiping with dry cloth entering code 49 print heads 105 Warning signs Wiping with wet cloth overview 11 print heads 105 Warnings 120 / 121 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013...
  • Page 121 Rho P10 200 J Index 2013 © Durst Phototechnik AG - www.durst-online.com, Rho P10 200, Issued 10/2013 121 / 121...
  • Page 122 Durst products. Illustrations and Julius-Durst-Straße 11 descriptions are therefore subject to modification. All rights reserved on A-9900 Lienz, Austria images and illustrations. Phone +43/4852/7 17 77 Fax +43/4852/7 17 77 50 © Durst Phototechnik AG Durst Rho P10 200, Edition 10/2013 www.durst-online.com info@durst-online.at...

Table of Contents
