SSET CE-S 28-4MD4-0.2 Series Instructions

Two input two output DC current signal
isolator
Two input two output DC voltage signal
isolator
Istructions
CE-S*28-**4MD4-0.2

1Overview

The main function of the signal isolator is to isolated transmit the
input DC voltage (current) signal into the standard current or
voltage signal. The product contains two efficient micro power
isolated power supplies that provides an isolated power supply to
the pre-stage primary sensor while powering the internal signal
processing circuitry. The products are widely used in analog
signal isolation conversion of industrial field, such as
communications, power rail, industrial control and other
automation and control fields
Features:
Ø
Fully isolated circuit structure:
Ø
Two signal inputs are isolated from each other; two signal
outputs are isolated from each other; signal input, output and
auxiliary power supply are isolated from each other;
Ø
Using electromagnetic isolation technology, stable and
reliable performance;
Ø
The output port and power port can withstand 2KV surge
impact;
Ø
The accuracy is better than 0.2;
Ø
Provides the isolated 24V distribution power output,
facilitates a sensor power supply;
Ø
Using 18mm thin shell guide rail installation, space
utilization is high;
Ø
Wiring using plug terminals, easy wiring and maintenance.

2 Case style

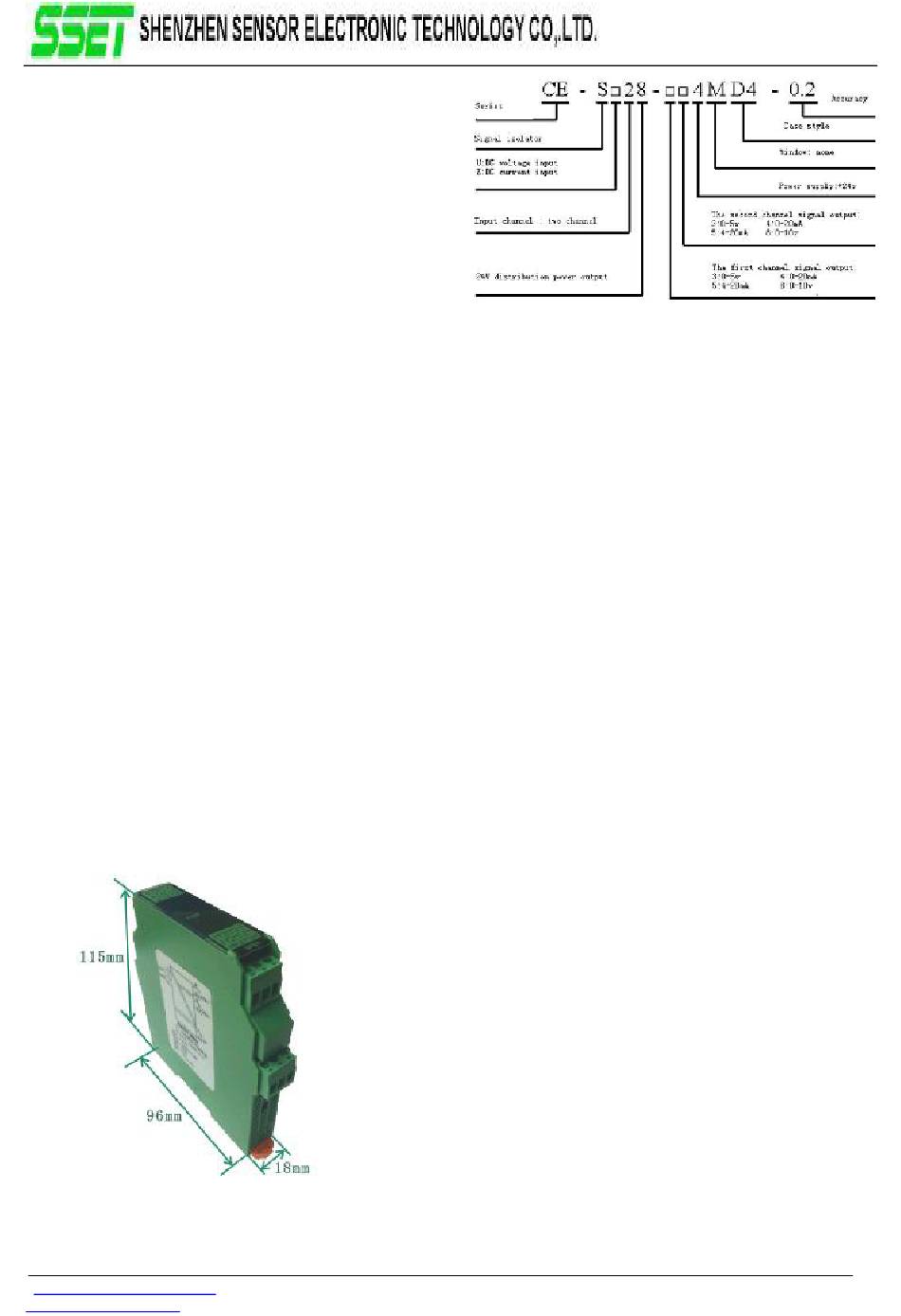

Figure 1, MD4 case

3 Part number

http://www.ce-transducer.com
sales@ce-transducer.com
3rd Floor, building 1, Zaimao industrial park, Baoji road, Bantian, Longgang district,
Shenzhen City, China Post code: 518049

4 Specifications

Test conditions: auxiliary power: +24 V
Input range:
Voltage range: 75mV~300V DC,
The first way current range: 10mA~5A DC,
The second way current range：10mA~200mA DC;
Output: 0-20mA, 4-20mA, 0-5V, 0-10V, 0-15V(special)
Note: When input signal is 1-5V or 4-20mA, it is not allowed to
output a negative signal. Please specify the requirements of
"shielding negative signal" when ordering, as described in section
IX.1.
Power supply: +24VDC(-15%~+20%);
Power distribution output: 24VDC±3.6V/25mADC;
Accuracy: 0.2;
Load capacity: current output ≤500Ω; voltage output ≥2kΩ;
Temperature drift: ≤200ppm/℃;
Isolation voltage: 2500VDC;
Response time: ≤100 mS;
Rated power consumption: <3W;
Output ripple: <10mV
Frequency response range: none;
Surge immunity:
Power port three ±2KV(L-N/2Ω/ integrated wave)
Output port three±2KV (L-N/40Ω/ integrated wave);
Impulse immunity:
input/power port ± 2KV, analog I/O port ± 1KV;
Input overload capacity:
2 times nominal value for the measured voltage(apply a second,
repeat 10 times, interval 10S);
20 times nominal value for the measured current apply a second,
repeat 5 times, interval 300S);
Operating temperature: -20~70℃, humidity: ≤95%(no dew);
Storage temperature: -40~+70℃.

5 Connections Diagram

(Only for reference only, the actual application to the product
wiring diagram shall prevail)
