Summary of Contents for Hohem MIC-01

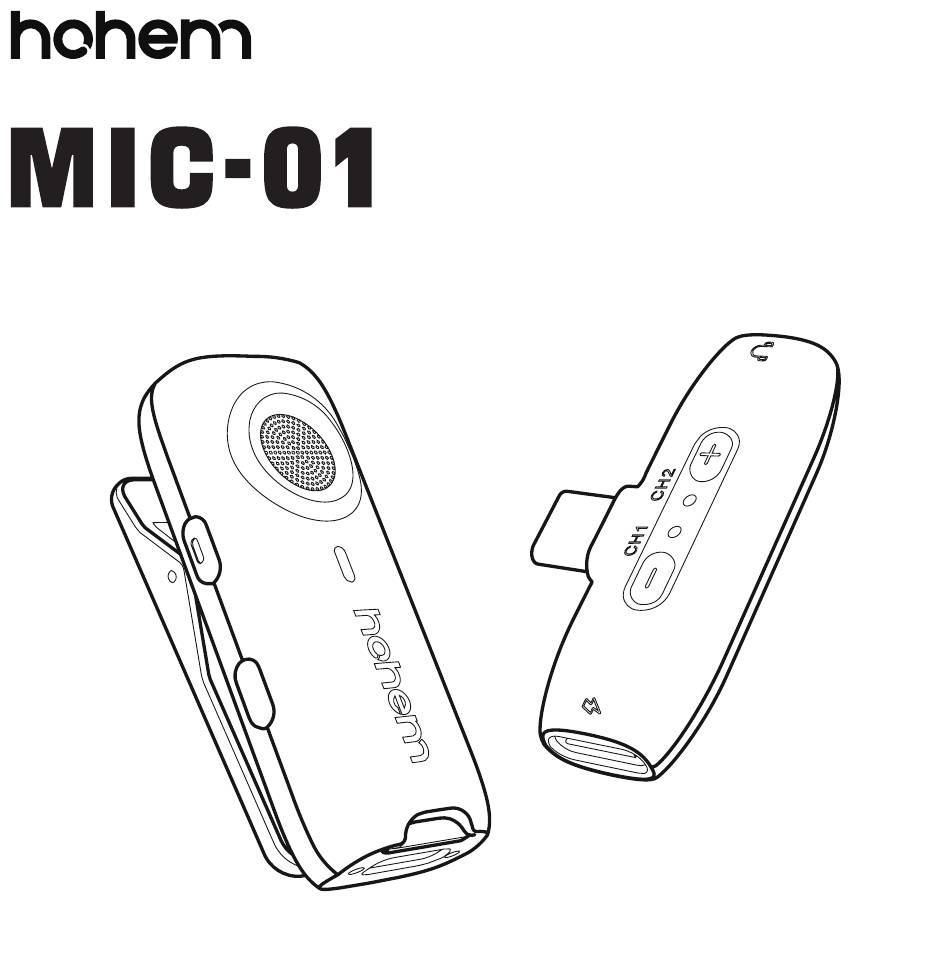

- Page 1 Wireless Lavalier Microphone User Manual V1.0...
- Page 2 01 - 23 User Manual 24 - 46 ユーザーマニュアル 47 - 69 사용자 매뉴얼 70 - 96 Benutzerhandbuch 97 - 122 Manuale d'uso 123 - 147 Manuel de l'utilisateur 148 - 172 Manual del usuario 173 - 197 Руководство пользователя...
- Page 3 Warning & Disclaimer Thank you for purchasing Hohem MIC-01. By using this product, you hereby signify that you have read this disclaimer and warning carefully. In addition, you understand and agree to abide by the terms and conditions herein. You acknowledge that you are solely responsible for your own conduct while interacting with this product, and for any consequences thereof.
-
Page 4: Table Of Contents
Contents 01 Product List· ·················· 02 Introduction· ·················· 03 Charging Operation················ 04 TX Transmitter · ················· 05 RX Receiver· · ·················· Recording Device Connection ··········· TX and RX Pairing ················ 06 Features & Indicators· ·············· Noise Cancellation ················ Reverb * ···················· Shutter Control * ················ Mute * ·····················... -
Page 5: Product
01 Product List Before using this product, please carefully check that all the following items are included in the product package. In case that any item is found missing, please contact Hohem customer service or the local distributor. Type-C Charging Transmitter(TX) *1... -
Page 6: Introduction
02 Introduction Transmitter(TX) ⑤ ① ⑥ ② ⑦ ③ ⑨ ④ ⑩ ⑧ ① Back Clip ⑥ Built-In Microphone ② Power Button(Shutter/Mute) ⑦ Status Indicator ③ Clip Magnet ⑧ Charging Contact ④ Mode Button(Noise Cancellation/ ⑨ TF Card Slot Linking/Reverb) ⑩ Type-C Charging Port ⑤ 3.5mm TRS Output... - Page 7 Receiver(RX) ⑥ ① ② ⑦ ③ ④ ⑤ ① Type-C Charging Port ⑤ "+" Button(Gain / Linking) ② "-" Button(Gain / Linking) ⑥ 3.5mm Monitor Port ③ CH1 Indicator ⑦ Type-C/Lightning Port ④ CH2 Indicator...
- Page 8 03 Charging Operation Before use, please ensure that the TX has sufficient battery power. TX Low-Battery: Blinks red slowly: Battery below 10%. Blinks red quickly: Battery below 3% *For TX status indicator, during low battery state, the battery level indicator takes priority, and other mode indicators will not be displayed.
-
Page 9: Tx Transmitter
04 TX Transmitter a.Power On/Off：Press and Power On：Status Indicator blinks hold the power button for 3s. Power Off：Status Indicator is off b.Attach(in Back Clip/Magnetic) the TX at the collar, approximately 3.94in(10cm) away from the mouth. * Clip Magnet... - Page 10 c.Attach the windscreen to the transmitter to protect the microphone diaphragm from plosives and wind noise.
-
Page 11: Rx Receiver
Recording Device Connection 1. Using with a Smartphone Simply plug the RX into your mobile phone. (The Hohem MIC-01 receiver is available in two interface options: Lightning and Type-C. Please choose and purchase according to your specific needs and device compatibility.) - Page 12 Type-C * The RX indicator light blinks indicating a successful connection. It's recommended to remove the case before connecting, if you have a thick phone case. 2. Using with a Camera *The RX does not contain a built-in battery. When connecting it to a camera, external power is required.
- Page 13 a. Insert the RX into the output port of external power. Next, use the 3.5mm TRS cable to connect the RX and the camera audio input port(usually marked with a microphone symbol). b. Adjust the camera's microphone sensitivity to a range of 1 to 3 simultaneously.
-
Page 14: Tx And Rx Pairing
TX and RX Pairing （Please make sure that the RX receiver is already plugged into your recording device.） a. After powering the TX on, it indicates that the RX has successfully paired with TX when both the status light on TX and the CH1 indicator remain steady. -
Page 15: Noise Cancellation
06 Features & Indicators Please ensure that the TX and RX are successfully paired before using the functionalities marked with an asterisk (*). Noise Cancellation （The following operations require ensuring that the TX is powered on.） Intensity Control: Single press the Off: Solid blue indicator Mode Button to switch between Standard: Solid green indicator... -
Page 16: Reverb
Reverb * On/Off: Double press On: Purple and blue/green/yellow(current noise the TX Mode Button cancellation mode) flashing alternately Off: Current noise cancellation status indicator Shutter Control * Mobile Phone Shutter: Single Status Indicator Blinks Once: Take a press the TX power button photo or start/stop recording... -
Page 17: Mute
Mute * On/Off: Double press the TX On: Solid white indicator power button Off: Current noise cancellation status indicator Real-Time Monitor * Insert the wired (not included) into the 3.5mm monitor port on RX to monitor the spoken voice and recording status in real-time from the connected TX. -
Page 18: Gain
Exit Gain Mode: Double press the "-" button(or wait for 10s with no operation) Tips： ① Hohem MIC-01 supports 5 levels of gain control. Levels 2 to 4 prompt a single "beep" in the earphone. Levels 5 (highest) and 1 (lowest) prompt a double "beep."... -
Page 19: External Mic
External Mic * Simply insert the external microphone into the 3.5mm monitor port on the top of TX. *External microphone is not included in the package. Voice Recorder （Please ensure the TX is already powered on.） The TX features a TF card slot. When TX is not connected to RX and a TF card is detected, the product can function as a standalone recorder. - Page 20 optimal recording results, you can select a suitable noise cancellation mode based on the environment. *It supports up to a 32GB TF card (in FAT format) with the capacity to record up to 94 hours. Start/Stop: Single press Start: White and yellow/blue/green(noise the TX power button cancellation mode) flashing alternately Stop: Current noise cancellation status...
-
Page 21: Specification
a. Inserting the TF card into a card reader and connecting it to a computer for export. b. Directly connect the TX to a computer using a Type-C data cable for exporting. ④ If the TF card space is insufficient and audio isn't exported, new recordings will overwrite the oldest ones. - Page 22 150mAh Battery Capacity Operating Time 7.5hrs Charging Time About 1.5hrs *The data above are based on tests in the standard environment at the Hohem lab. Under different scenarios, data is different to some extent. Please refer to the actual use.
-
Page 23: Warranty Terms
08 Warranty Terms ① Customers are entitled to replacement service in case of quality deficits or functional disorders found in the product within seven (7) calendar days of receiving a product. But ensure the commodity and package with no damage, and we will offer a brand new replacement after confirming the product's problem is not related to artificial damage. - Page 24 Warranty Card User Name: Contact No.: Address: Purchase Date: Prod. Serial No.: Failure Cause:...
- Page 25 Scan the QR code to access the tutorial...
