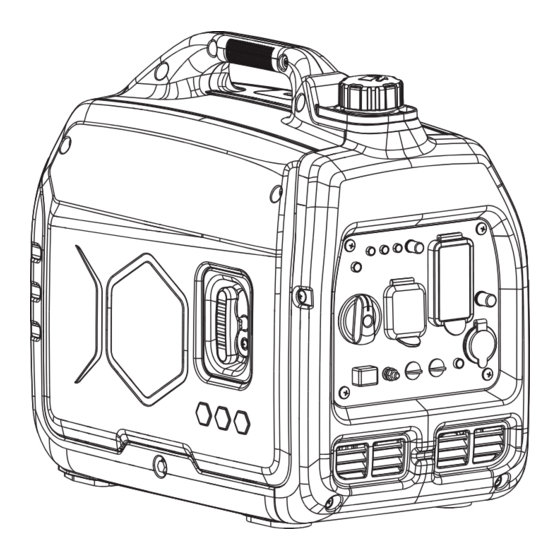

INVERTER GENERATOR
USER'S MANUAL
DK4000i
WARNING: SAVE THIS MANUAL FOR FUTURE REFERENCE
This manual contains important information regarding safety. Operation,
maintenance and storage of this product. Before use, read carefully and
understand all cautions, warnings, instructions and product labels. Failure to do
so could result in serious personal injury and/or property damage.
Portable Inverter Generator
Advertisement
Table of Contents
Related Manuals for DINKING DK4000i
Summary of Contents for DINKING DK4000i
- Page 1 Portable Inverter Generator INVERTER GENERATOR USER'S MANUAL DK4000i WARNING: SAVE THIS MANUAL FOR FUTURE REFERENCE This manual contains important information regarding safety. Operation, maintenance and storage of this product. Before use, read carefully and understand all cautions, warnings, instructions and product labels. Failure to do...
- Page 2 Thank you very much for choosing generator set product manufactured by our Company! This Manual will instruct you how to operate and use the generator set safely and properly.Please be sure to read it carefully before using. All technical data and diagrammatic presentations in this User’s Manual are consistent with the latest product at the time of publication.
-
Page 3: Limited Warranty
(90) days from the date of purchase. 2. WHO GIVES THIS WARRANTY (WARRANTOR): CHONGQING DINKING POWER MACHINERY CO., LTD 3. WHO RECEIVES THIS WARRANTY(PURCHASER):The original purchaser (other than for purposes of resale) of the DINKING generator. -
Page 4: Table Of Contents
TABLE OF CONTENTS LIMITED WARRANTY SAFETY WARNING SAFETY INSTRUCTIONS NAMES OF COMPONENTS CONTROL FUNCTIONS PREPARATIONS 1.Fuel..............................9 2.Oil..............................9 3.Pre-operation inspection......................1 0 STARTING UP THE GENERATOR SHUTTING DOWN THE GENERATOR USING THE GENERATOR 1.Service environment of the generator..................13 2.Generator wiring........................13 3.Generator grounding.........................14 SERVICE AND MAINTENANCE 1.Spark plug inspection.......................16 2.Adjustment of the carburetor.....................17... -
Page 5: Safety Warning
SAFETY WARNING Personal and property safeties of you and others are very vital. Please read the Safety Warning in the User's Manual and the decals of the generator set carefully.The Safety Warning can alert you to those potential hazards that could harm you and others. In front of each Safety Warning, there is one of four words "DANGER"... -
Page 6: Safety Instructions
SAFETY INSTRUCTIONS Before operating the generator, it will help you avoid accidents to read and understand the Manual and familiarize yourself with the safe operation procedures of the generator. Please do not use in humid Please do not use indoors environment Please do not connect it to Please do not smoke when refueling... - Page 7 SAFETY INSTRUCTIONS S A F E T Y LA B E LS A N D D E C A LS...
-
Page 8: Names Of Components
NAMES OF COMPONENTS Lifting handle Fuel tank cap 4000 3200 STARTING WATTS RUNNING WATTS Control panel Startup handle Left enclosure Spark plug cover plate 4000 3200 STARTING WATTS RUNNING WATTS Muffler Oil cover plate Right enclosure... -
Page 9: Control Functions
CONTROL FUNCTIONS C O N T R O L PA N E L FE A T U R E S CO Alarm: Low Idle: Press the button to turn green and Flashing red light: dangerous levels of enter low idle mode, where the engine will sense carbon monoxide gas have built up leave immediately the required load and run at a slower RPM to until area has aired out. -
Page 10: Preparations
PREPARATIONS Fuel DANGER • Fuel is flammable and toxic, please read the Safety Instruction carefully before refueling; • Do not fuel too full, otherwise fuel will spill after fuel tank is warmed; • After refueling, confirm that the fuel tank cap has been tightened. ATTENTION •... -
Page 11: Pre-Operation Inspection
PREPARATIONS Pre-use Inspection WARNING Even if the generator is not in service, its important component may suddenly fails. Before the generator is started up, if any of following components is unable to work properly, please inspect and repair carefully. Tip: The condition of the generator shall be inspected before using every time. Pre-operation inspection Fuel •... -
Page 12: Starting Up The Generator
STARTING UP THE GENERATOR Remove the load from all output ends; Switch low idle switch to "OFF"; Turn multi-switch control to "START" position; Tip: When hot engine is started up, it is unnecessary to close the choke valve, but turn the combination switch to "RUN". First gently pull startup handle, until guy cable is hooked tight, and then pull it with effort. -
Page 13: Shutting Down The Generator
SHUTTING DOWN THE GENERATOR Unplug the power cord; Turn the combination switch to "OFF" position;... -
Page 14: Using The Generator
USING THE GENERATOR Service environment of the generator • Applicable temperature: -5°C ~ 40°C (23°F ~ 104°F); • Applicable humidity: below 95%; • Applicable altitude: regions below 1,500 m (It shall be used by reducing power in regions above 1,000 m). Standard atmospheric condition •... -
Page 15: Generator Grounding
USING THE GENERATOR Connection of AC power WARNING All electrical equipment shall be disconnected before inserting the plug. ATTENTION • Make sure that all electrical equipment, including wires and plugs, are in good condition before connecting to the generator; • Make sure that all loads driven by the generator are within rated load range; •... -
Page 16: Service And Maintenance
SERVICE AND MAINTENANCE Good maintenance and service is the best guarantee for safe, economical and zero-failure operation. It also contributes to environmental protection. In order to keep the generator in good condition, you must inspect and maintain it regularly. The maintenance schedule is as follows: Then every three Maintenance cycle... -
Page 17: Spark Plug Inspection
SERVICE AND MAINTENANCE WARNING Please shut down the engine first before performing any maintenance. The engine shall be placed in a horizontal position. In order to prevent the engine from starting up, separate spark plug cap shall be separated from spark plug. Do not use it indoors or use it in a tunnel, cave or other places ventilated poorly. -
Page 18: Adjustment Of The Carburetor
SERVICE AND MAINTENANCE Install the spark plugs in reverse order of removal. Spark plug torque: 14±1N.m(123.9±8.8in-lb) Tip: If there is no torque wrench when installing the spark plug, a better estimation method is to screw it 1/4-1/2 turns by force after screwing it in place, but the spark plug shall be screwed to specified torque as soon as possible. Adjustment of the carburetor The carburetor is an important components of the engine. -
Page 19: Air Filter
SERVICE AND MAINTENANCE Place an oil pan under the engine, tilt the generator to quickly pour out oil; After discharging the oil, put the generator back on level ground; Refill oil to a proper level, tighten oil dipstick, Don't go over the scale cover external cover plate and tighten the knob. -
Page 20: Fuel Filter Screen
SERVICE AND MAINTENANCE 1. Reassemble empty air filter cap back to original position, and tighten screws. 2. Assemble air filter cover and tighten the knob. Fuel filter screen WARNING Be sure not to open fuel tank of the generator in a place where smoking or with flame. 1. -
Page 21: Storage And Transport
STORAGE AND TRANSPORT Generator storage If it is stored long-term, in order to prevent aging, you shall take some storage measures. Turn the multi-swtich to "OFF". Open fuel tank cap, to take out fuel filter screen. Pump all fuel in fuel tank into special fuel tank, and then reassemble fuel tank cap back. -
Page 22: Generator Transport
STORAGE AND TRANSPORT Unscrew oil dipstick, and drain oil in the crankcase off. Fill new oil to upper oil limit, and then assemble oil dipstick. Gently pull startup handle until you feel resistance, allowing both inlet valve and exhaust valve to be closed. Place the generator set in a clean and dry area. -
Page 23: Troubleshooting
TROUBLESHOOTING... - Page 24 TROUBLESHOOTING...
-
Page 25: Technical Parameters
TECHNICAL PARAMETERS Engine Model 164F/P Engine Type Single Cylinder, Four Stroke, Air Cooled, Overhead Valve Cylinder Diameter×Stroke 64x45 (mm) Displacement(cc) Compression Ratio 8.5±0.2 Gas Distribution Mode Cooling Mode Forced Cold Air Output Power(kW/r/min) 4.0/4850 Starting Mode Manual Recoil Starting Fuel Tank Capacity(US 1.0 (3.7L) gallon) Type And Grade Of Fuel... -
Page 26: Circuit Diagram
CIRCUIT DIAGRAM DK4000i SCHEMATICS... -
Page 27: Choosing A Generator
CHOOSING A GENERATOR...
