Summary of Contents for egber VandalVeto 800711

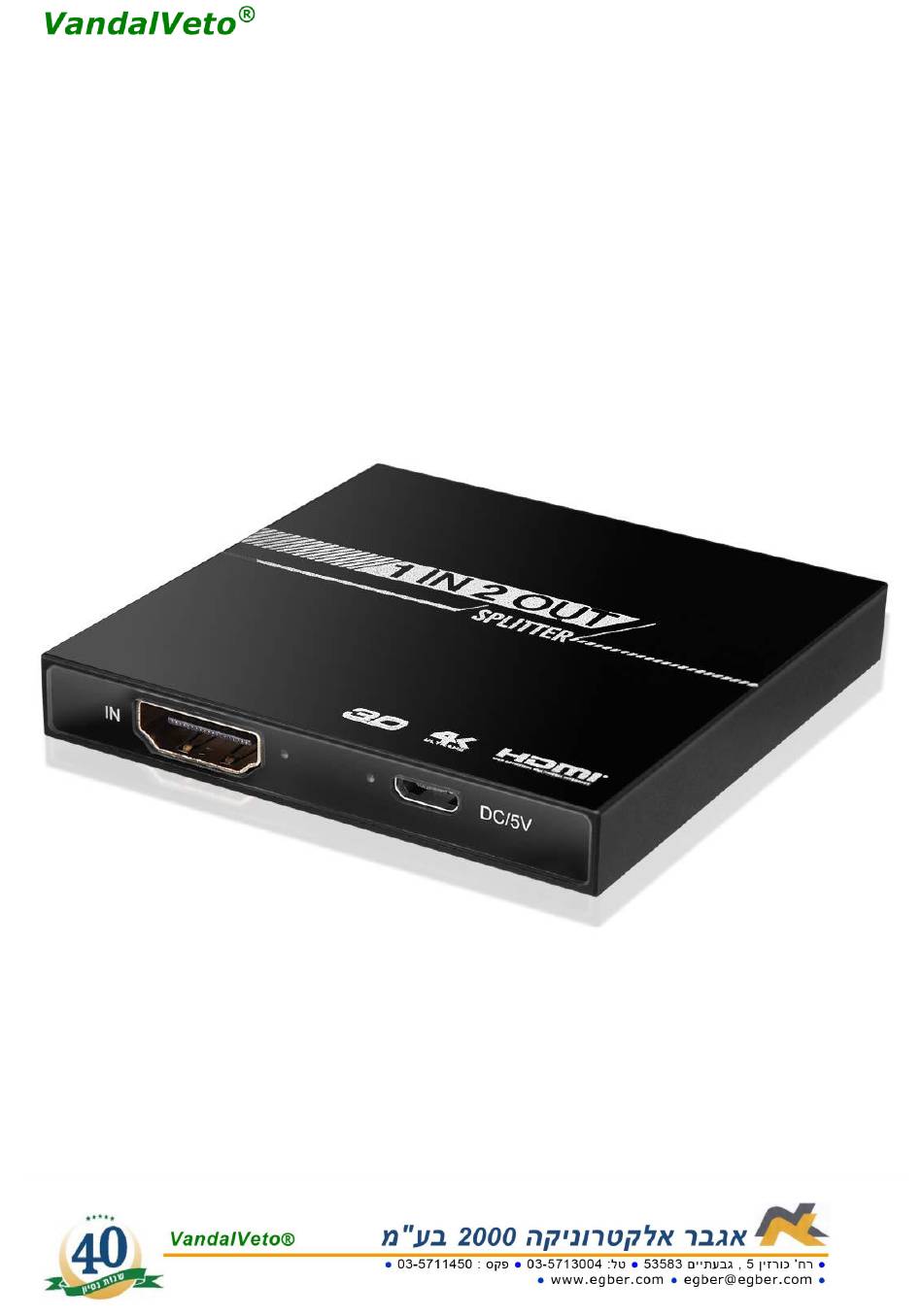

- Page 1 800711 Mini 1x2 4K HDMI Splitter...
- Page 2 User manual Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. I. Introduction This 1 by 2 HDMI UHD Splitter with HDCP 2.2 is an advanced solution for splitting a single HDMI input to two HDMI outputs.
- Page 3 IV. Specifications Video Bandwidth 600MHz/18Gbps Input Ports 1 × HDMI (Female type) Output Ports 2 × HDMI (Female type), Output Resolution 480i ~1080p50/60, 4Kx2K@24/30, 4k2k@60Hz ESD Protection Human Body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified) Chassis Material Aluminum...
- Page 4 V. Interface VI. Connection A) Connect the input source and output displays to the HDMI Splitter. *Please refer to the Connection Image. B) When input source and output displays are connected and turned on, the corresponding LED will light. Attention： In order to protect the splitter and your devices, please make sure the splitter is powered off before you attach in or extract video source and displays.
