Summary of Contents for Breezy BLNK01

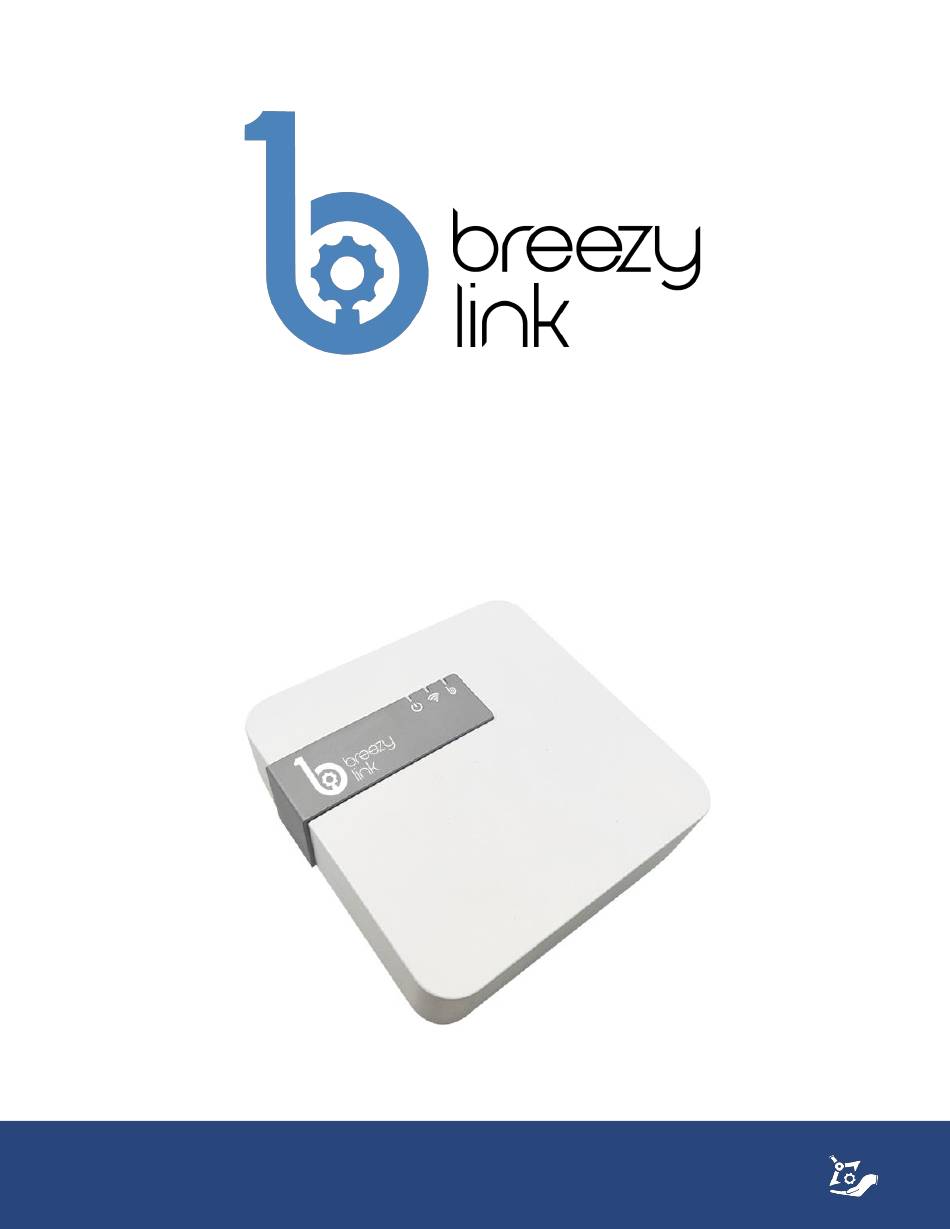

- Page 1 User Manual Model: Breezy Link (SKU: BLNK01) With Bluetooth® Wireless Technology D001154 Rev A.0 www.BuildWithRobots.com Page 1...
-
Page 2: Manufacturer And Contact Information
For product information, sales, service, and technical support: https://buildwithrobots.com/ Customer Support Phone: (833) 273-3991 Email: info@buildwithrobots.com This manual covers model: Breezy Link (BLNK01) SPECIFICATIONS: Voltage: 5V, Includes USA 100-240VAC/50-60 Hz wall-mount power adapter and 2 meter USB cable Amps: 2A at 5VDC D001154 Rev A.0... -
Page 3: Environmental Considerations
Environmental Considerations This section provides information about the environmental impact of the product. Product End-of-Life Handling Observe the following guidelines when recycling an instrument or component: Equipment recycling. Production of this device required the extraction and use of natural resources. The device may contain substances that could be harmful to the environment or human health if improperly handled at the product’s end of life. -
Page 4: Table Of Contents
Using a permanent ethernet connection ....................12 Using a temporary ethernet connection to setup Link WI-FI ..............13 Using Breezy Smart Controller to setup Breezy Link WI-FI ..............15 Add Breezy Blue devices to site ........................18 Creating a group - optional ......................... 20 Setup notifications - optional........................ -
Page 5: General Information
General Information The Build With Robots Breezy Link™ is a Gateway that connects other Breezy devices to Breezy Cloud™. Breezy Cloud can be accessed in a Web browser and is used to setup devices, monitor device data, and setup device notifications. -
Page 6: Contents Included
1x USA AC power adapter 1x Breezy Link 1x Package mounting hardware 1x Breezy Link quick start guide The appearance or components of the product may differ depending on the model. If anything is missing, please contact Build With Robots. -
Page 7: Product Overview
Product Overview 1. Red LED: Power indicator 2. Green LED: WI-FI / ethernet network connection indicator 3. Blue LED: Breezy Cloud connection indicator 4. Removable bottom cover 5. Bottom cover retention screw 6. Type-C power cable connection 7. Ethernet cable connection D001154 Rev A.0... -
Page 8: Breezy Link Hardware Installation
Install Breezy Link on a shelf or mount on a wall in a centralized location where Breezy Link will be within 60 feet of other Breezy devices and will be less than 6 feet from an electrical outlet – operating range may vary due to wall thickness and materials. -
Page 9: Create Or Log Into Breezy Cloud Account
Create or log into Breezy Cloud account Login to existing account 1. If you already have an existing account, login to the account at https://cloud.buildwithrobots.com/ Create new account 1. To create a new account, navigate to https://cloud.buildwithrobots.com/ and enter your email address and a password of your choice. After reading the End-User License agreement and agreeing to the terms, press the Create Account button. -
Page 10: Create Site
Site Name field and press the Create Site button. Add Breezy Link to Site 1. Add a Breezy Link to the new site by completing the screen shown below using information found on the Breezy Link label and creating an optional Name that describes where the Breezy Link is installed. - Page 11 2. If you already belong to a site and want to add an additional Breezy Link to that site, press the + ADD BREEZY LINK button at the top right of the home screen to navigate to the screen shown above.
-
Page 12: Connect Breezy Link To Breezy Cloud
Connect Breezy Link to Breezy Cloud Power on the Breezy Link as described in the Powering Breezy Link ON and OFF section above. Breezy Link can be connected to Breezy Cloud in the three ways described below. Choose the scenario that best fits your needs. Any WI-FI or ethernet connection used for Breezy Link must be able to connect to the internet without a website login. -
Page 13: Using A Temporary Ethernet Connection To Setup Link Wi-Fi
1. Plug the ethernet cable into the ethernet connector on the bottom of Breezy Link and into an active ethernet connection that has internet access. 2. If the Breezy Link has been added to the site and the ethernet connection is active, all three indicators on Link should be illuminated (blue, green, and red) and the Breezy Link will be visible on the Breezy Cloud site. - Page 14 WI-FI password in the password field and press the connect button. 7. Both the ethernet and WI-FI connections will show they are connected. 8. The ethernet cable can be disconnected and the Breezy Link will continue to operate using WI-FI. All three indicator lights Breezy Link will remain on.
-
Page 15: Using Breezy Smart Controller To Setup Breezy Link Wi-Fi
Using Breezy Smart Controller to setup Breezy Link WI-FI 1. Select the Breezy Link Assistant app on the Breezy Smart Controller screen to open the app. 2. Sign into your Breezy account or Select CONTINUE AS GUEST or CREATE ACCOUNT to proceed as a first-time user. Breezy Link Assistant uses the same account credentials as the Breezy Smart Controller app and Breezy Cloud. - Page 16 3. After signing in or continuing as guest, a list of Breezy Link devices within Bluetooth range will be displayed. Selecting the Link device to be configured will open a notification requesting to pair to the device. 4. After pairing is complete, reselect the Link from the list to open the device control screen.
- Page 17 WI-FI password and Link code from the product label into the text fields. 6. If the Breezy Link has been added to the site and the ethernet connection is successful, all three indicators on Link will be illuminated (blue, green, and red) and the Breezy Link will be visible on the Breezy Cloud site.
-
Page 18: Add Breezy Blue Devices To Site
3. Press the VIEW button for Breezy Blue. 4. All the powered-on Breezy Blue units within range of the Breezy Link will be shown in the list. Note that the information in the “Serial” column will by default be the serial number shown on the bottom label of the Breezy Blue unit, and can later be changed to user defined names as shown below. - Page 19 6. In the case below, all the devices were added to the site and the screen shows they are “Site Devices” now. 7. The data for each device may now be viewed by pressing the VIEW button next to the device. For ease of viewing multiple devices, set up a group as instructed below.
-
Page 20: Creating A Group - Optional
Creating a group - optional 1. Pressing the Groups button on the home screen opens the window below where a new group may be created by pressing the + CREATE GROUP button. D001154 Rev A.0 www.BuildWithRobots.com Page 20... - Page 21 2. Name the group, select the devices that should be added to the group and press the CREATE GROUP button. 3. You will then be able to view the data for these devices by pressing the VIEW button for the group. D001154 Rev A.0 www.BuildWithRobots.com Page 21...
-
Page 22: Setup Notifications - Optional
4. Information such as historic tank levels, current tank level, and fogging history can be viewed from this screen Setup notifications - optional 1. If email or SMS notifications are required, navigate to the Settings page from the home screen to set up the appropriate notifications. D001154 Rev A.0 www.BuildWithRobots.com Page 22... -
Page 23: Add Other Breezy Devices To Site
Add other Breezy devices to site 1. Other Breezy devices such as Breezy Sense can be added to the site and groups in a similar manner to Breezy Blue. Regulatory information FCC ID: 2AUXBDSGW-091 This device complies with part 15 of the FCC Rules. Operation is subject to the following... -
Page 24: Limited Warranty (Usa/Canada)
LIMITED WARRANTY (USA/CANADA) Build With Robots warrants that this product will be free from defects in materials and workmanship for a period of one (1) year from the date of shipment. If any such product proves defective during this warranty period, Build With Robots, at its option, either will repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product.
