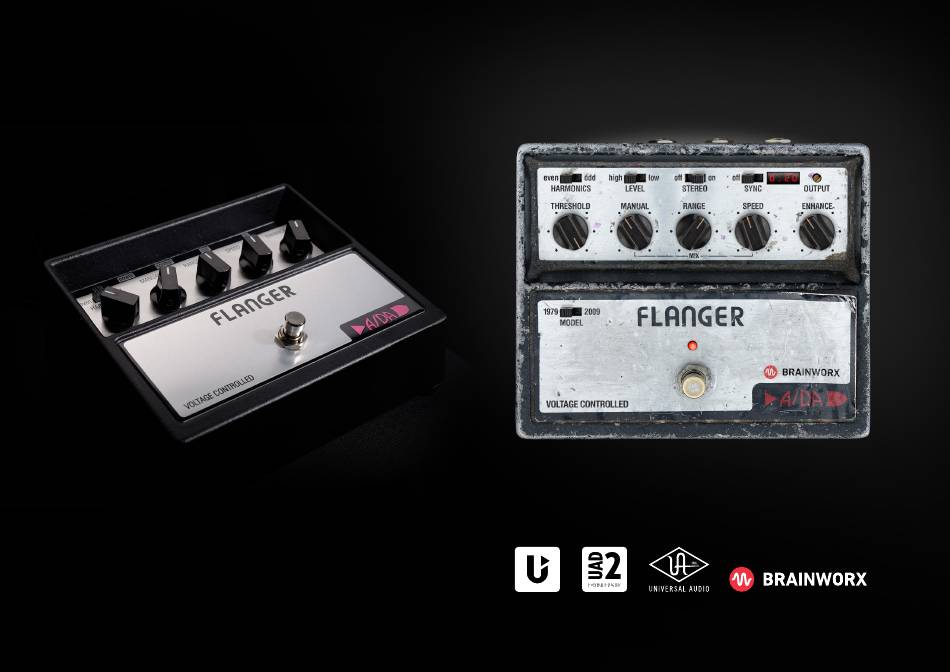

- Page 1 A/DA Flanger Plug-in Manual Developed by Brainworx in partnership with Rocket Amplification LLC DBA A/DA Amplification and Distributed by Universal Audio.
- Page 2 It’s no wonder the A/DA Flanger made its way into genres ranging from Rock, to Funk and Reggae–and onto the records of artists ranging from Pink Floyd to Van Halen to The Police.
- Page 3 The example shows the „comb the A/DA Flanger in the preamp insert position of Apollo’s Console appli- filter“ that occurs at the output of the A/DA Flanger at 1 msec time delay. cation. This will greatly enhance your experience, making the tone and If a 500 Hz signal is introduced into the Flanger at 1 msec delay, it will not behavior of your sound an exacting replication of the original hardware.
- Page 4 A/DA Flanger Features Plug-in Manual Threshold A noise eliminating gate that removes noise when input signal level is low. It allows to highlight the effect on louder passages. Full clockwise position minimizes this function. Manual Sets the time delay. Is disabled when Range is turned fully clockwise.
- Page 5 A/DA Flanger modulation becomes “wider” (a broader sweep). At maximum the delay Plug-in Manual time sweeps throughout its entire range, automatically creating the same sound as moving the Manual control repeatedly back and forth from minimum to maximum. Speed A continuously variable sweep that moves over the entire delay range, shifting the comb filter up and down the spectrum.
- Page 6 A/DA Flanger Stereo Plug-in Manual This software-only switch modifies the processed signals at the outputs when used in a stereo-output configuration. When Stereo is enabled, a phase difference of 180° (antiphase) is applied between the Sweep LFO of the two channels. This phase offset produces a panning effect. When the Range parameter is at 0% the stereo mode has no effect.
- Page 7 We have provided the following control knobs settings for you to experiment with, so that you may quickly familiarize yourself with the A/DA Flanger. We have left some of the knobs in the following diagrams without pointers because their positioning has little or no effect on the given setting.
- Page 8 A/DA Flanger Leslie Plug-in Manual The adjacent setting is for chorale or slow Leslie. For tremolo or fast Leslie, turn the Speed knob further clockwise. Pitch Change Turning the Speed control further clockwise increases the amount of pitch change. Chorus Effect This setting produces the popular “chorus effect”...
-
Page 9: Top Toolbar
Settings (A/B/C/D) Saturation The Flanger amp plugin offers four internal settings (A/B/C/D) which will Adds Brainworx XL Saturation to the effect signal. Doesn‘t influence dry be stored with every preset. So, one preset can contain up to four amp and signal. - Page 10 Plug in, Rock out! - www.brainworx-music.de...
