Contents of the bag of fasteners:
Assembly instructions
M10x20 pan head screw
M14x100 hex head screw
Eyebolt Ø14 length 100 with chain 2
M10x60 hex head screw
Towing bar eyebolt Ø14
Lynch pin Ø4
Roof bracket
IMPORTANT NOTE:
To avoid any risk of injury when using our hay racks for horses:
1. You are strongly advised to position the runners and roof arches at the highest level.
2. Use the towing protection (reference 1121143).
3. Use the roof protection (reference 1121135).
Height adjustment:
ASSEMBLY SHEET:
RTF & RTLS & RTO & RTC
1
20
10
8
2
2
4
Recommended height for horses
Recommended height for cattle
10109
M14 hex head locknut
M10 hex head nut
M10 washer
Square drive bit 60
M10 locknut
10x70 Zn rectangular
head bolt with nut
Bolted clevis
Page 1/4
20171017
10
40
48
2
8
8
4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for COSNET RTF

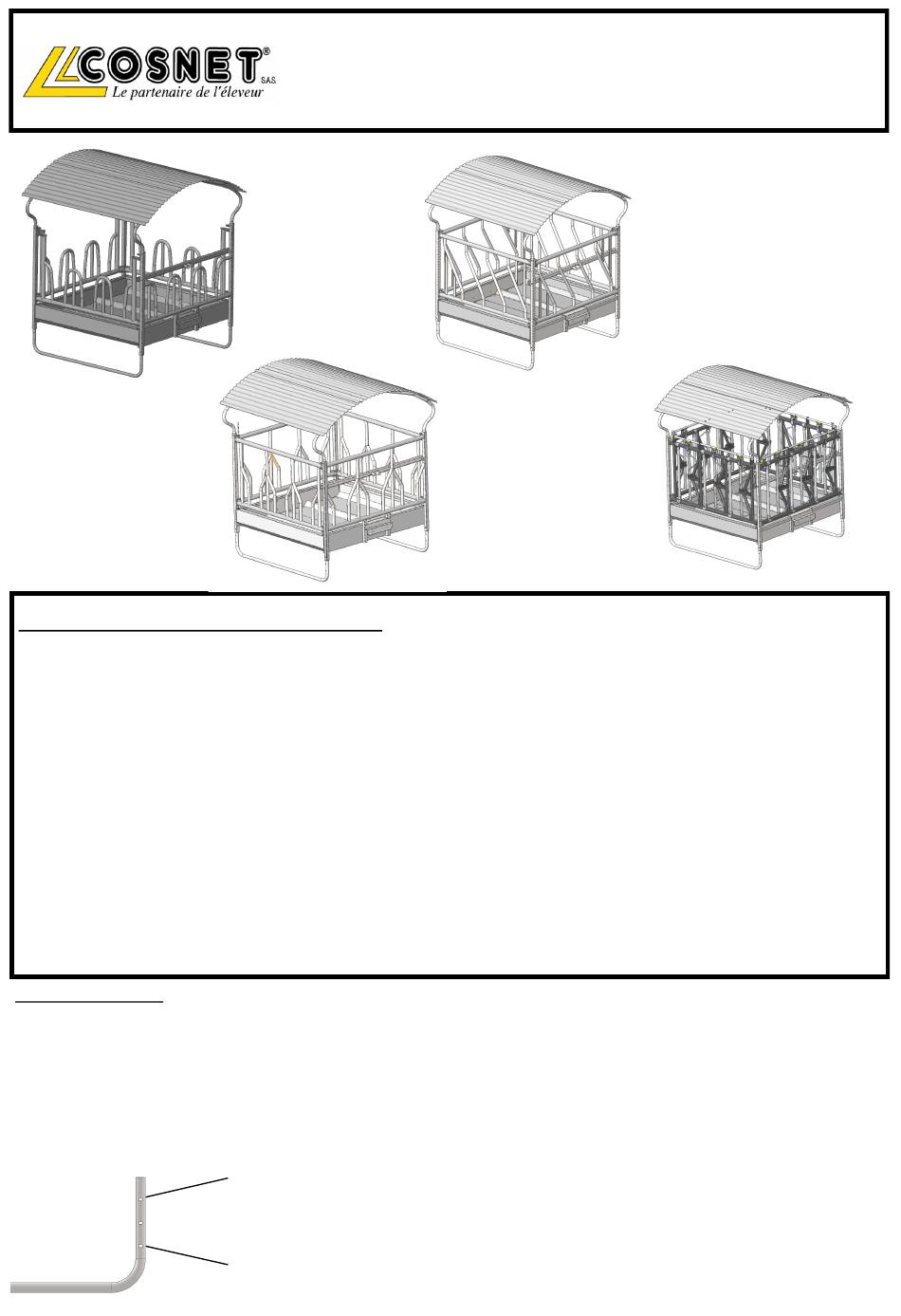

- Page 1 10109 ASSEMBLY SHEET: Page 1/4 RTF & RTLS & RTO & RTC 20171017 Contents of the bag of fasteners: M14 hex head locknut Assembly instructions M10 hex head nut M10x20 pan head screw M10 washer M14x100 hex head screw Square drive bit 60 Eyebolt Ø14 length 100 with chain 2...
- Page 2 10109 ASSEMBLY SHEET: Page 2/4 RTF & RTLS & RTO & RTC 20171017 1. Assembling the bottom plates Assemble the 2 bottom plates with the M10x20 pan head screws. To make the following assembly steps easier, we recommend you place the bottom of the hay rack on 2 pallets.
- Page 3 10109 ASSEMBLY SHEET: Page 3/4 RTF & RTLS & RTO & RTC 20171017 6. Fitting the clevises Fit the 4 clevises with the 8 10x70 rectangular head bolts with nuts + 8 M10 washers + 8 M10 locknuts 7. Assembling the panels 2 m x 2 m hay rack: 1 opening panel + 2 fixed panels.
- Page 4 10109 ASSEMBLY SHEET: Page 4/4 RTF & RTLS & RTO & RTC 20171017 9. Towing bar To prevent harming the animal, you must remove the towing bar after transport. 10. Installing the roof brackets On either side of the arch, add an M10 hex nut and an M10 washer.
