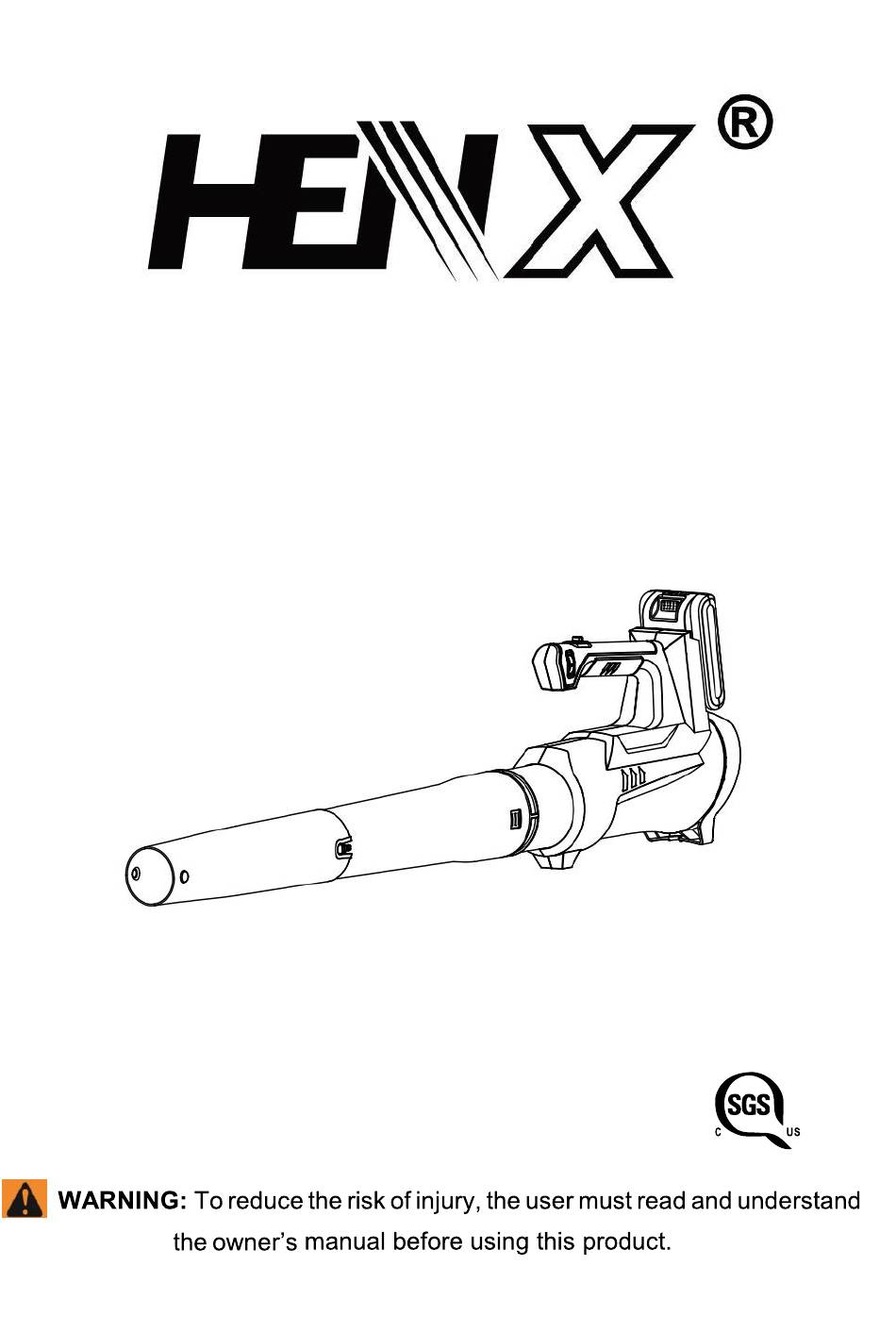

- Page 1 CORDLESS LEAF BLOWER H20CF02 20V H18CF02...
-
Page 2: Product Safety
PRODUCT SAFETY WARNING: some dust created by power sanding,sawing, grinding and drilling and other construction activities contains chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: Lead from lead-based paints ... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING: read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. FOR ALL APPLIANCES Avoid dangerous environment-Don’t use appliances in damp or wet locations. Don’t Use In Rain. Keep Children Away - All visitors should be kept at a distance from work area. -
Page 4: Additional Safety Warnings
Use appliances only with specially designated battery packs. Use of any other battery packs may create a risk of injury and fire. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. -
Page 5: Safety Warnings For Battery Pack
10.Do not handle plug or appliance with wet hands. 11.Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing. 12.Turn off all controls before unplugging. 13.Use extra care when cleaning on stairs. SAFETY WARNINGS FOR BATTERY PACK Do not dismantle,open or shred battery pack. - Page 6 Recharge only with the charger specified by WORX. Do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
- Page 7 SYMBOL To reduce the risk of injury, user must read instruction manual. Warning Wear ear protection Keep bystanders away Warning of hazard...
- Page 8 Do not use in the rain or leave outdoors while it is raining. Remove battery from the socket before carrying out any adjustment, servicing or maintenance. Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.
-
Page 9: Component List
⑧ ② ① ③ ⑤ ⑦ ⑥ ④ COMPONENT LIST Handle On/Off Switch 2-speed switch Motor housing Blower tube 1 Blower tube 2 Battery pack Battery pack release button Not all the accessories illustrated or described are included in standard delivery. -
Page 10: Technical Data
H20CF02 reaches maximum of 21.6 volts while Nominal voltage is 20 volts. ACCESSORIE H20CF02 Battery H20B20/H20B40 pack H20KC40/H20MC10 Charger Only use the appropriate accessories intended for this tool. Accessory information can be found on the product packaging, at a Henx dealer or on our website at www.henxpower.com... - Page 11 click click ② ① ① ② ②’ ② ①...
- Page 12 Switch Switch forward backwards to turn off to turn on High G’ speed speed speed High speed...
-
Page 13: Operation
OPERATION INTENDED USE The blower is intended for residential use only. Use the blower outdoors to move yard debris as needed. ASSEMBLY AND OPERATION ASSEMBLY Assembling & disassembling the Blower Tube（see Figure A&B）. Installing & removing the battery pack NOTE: Press the battery release button to release battery pack from your tool. -
Page 14: Cleaning The Tool
USER TIPS Hold the blow tube approximately 8” (20cm ) above the ground when operating the tool -Use a sweeping motion from side to side.Advance slowly keeping the accumulated debris/leaves in front of you. After blowing the debris/leaves into a pile, it is easy to dispose of the pile. Caution！... - Page 15 Bring Power to Your Garden. www.henxpower.com...
