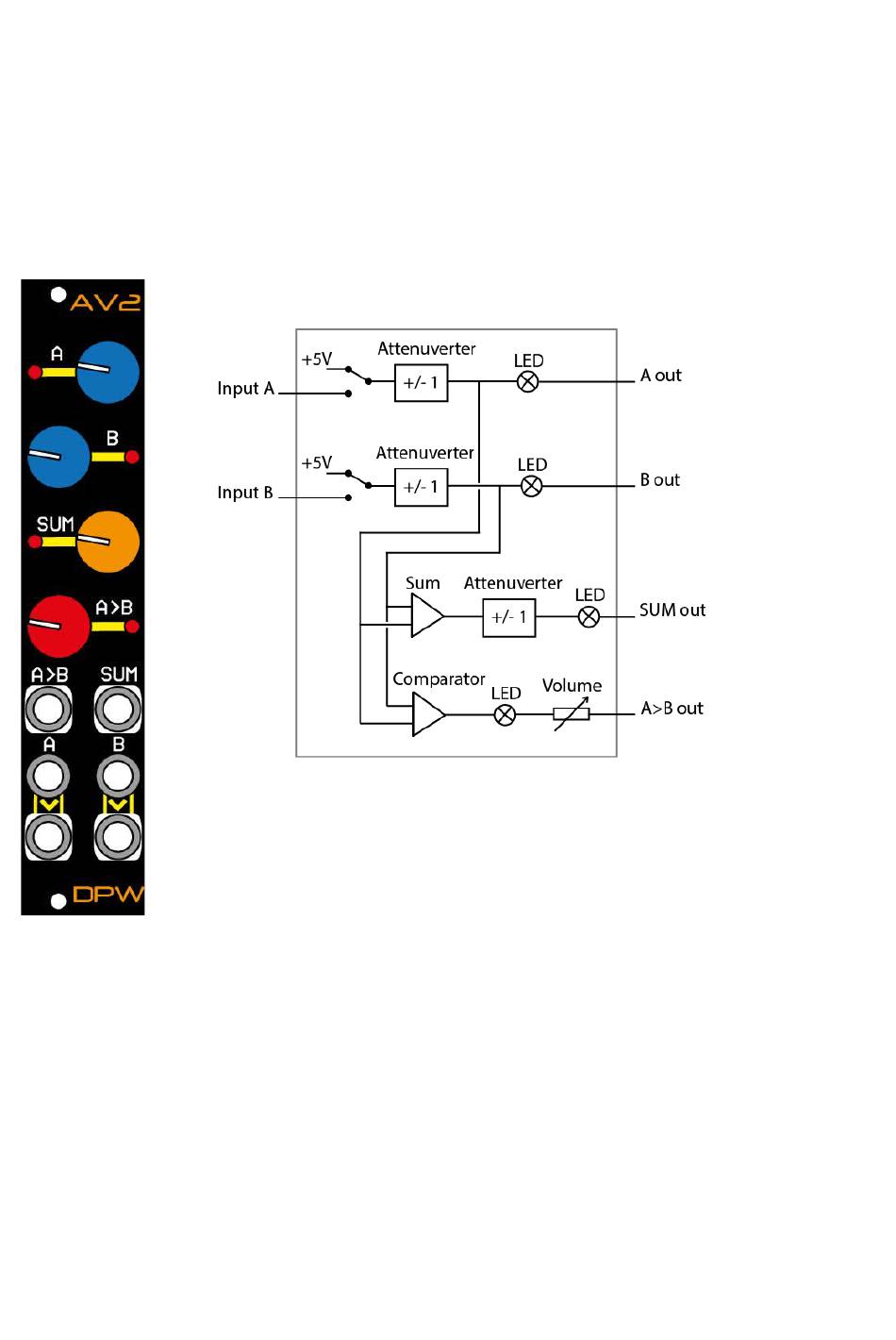

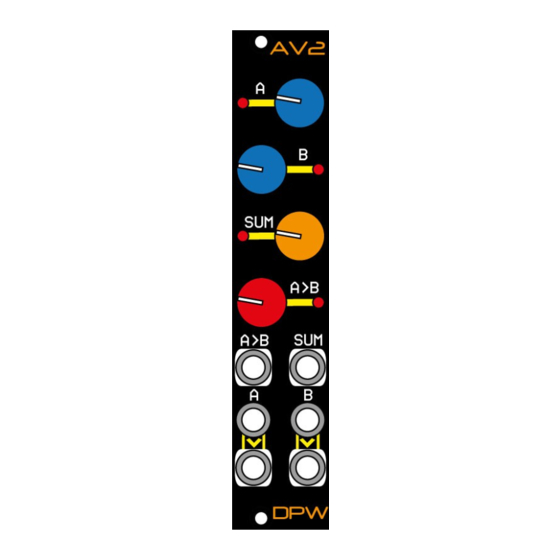

The base-function of the AV2 is a dual attenuverter. To the two attenuverters a mixer with an
attenuverter on the output and a comparator is connected.
The combination of simple functions makes this a very useful module to have in your toolbox.
The unit can be used as a utility module for control voltages or to run audio through. It is DC
coupled.
When something is connected to A or B that signal can be attenuated or inverted and attenuated
via the knob. In the middle position the output is zero. Max clockwise you get 1 times amplification
through the module and any signal passes through unaffected. Max counter clockwise the
amplification is -1 times. That is 180 degrees out of phase with the input.
The LEDs shows the output voltage. Green is positive and red is negative voltage.

SUM

SUM is the sum of A and B after their attenuverters.
The knob on SUM is an attenuverter as on A and B.
The LED shows the output voltage. Green is positive and red is negative voltage.
DPW Design, Häradsvägen 200, 14171 Segeltorp, Sweden
www.dpw.se
Attenuverter

Input A and B

When nothing is connected to A or B the input of the attenuverter is
normalled to +5V.
This gives the possibility to set the output from -5V to +5V DC out via the
knob.
A V2
MAN-AV2 Rev B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Attenuverter AV2 and is the answer not in the manual?

Questions and answers

Summary of Contents for DPW Design Attenuverter AV2

  • Page 1 SUM is the sum of A and B after their attenuverters. The knob on SUM is an attenuverter as on A and B. The LED shows the output voltage. Green is positive and red is negative voltage. DPW Design, Häradsvägen 200, 14171 Segeltorp, Sweden www.dpw.se MAN-AV2 Rev B...
  • Page 2 If you want an extra fat and wide PWM stereo sound you can use two AV2 modules connected to the same sources and set the controls of the two a bit different. DPW Design, Häradsvägen 200, 14171 Segeltorp, Sweden www.dpw.se...
  • Page 3 When set up this way don't forget that you also have the outputs A, B and SUM to modulate other parts of your system. DPW Design, Häradsvägen 200, 14171 Segeltorp, Sweden www.dpw.se MAN-AV2 Rev B...
  • Page 4 The delay after the filter is just to make it a bit more interesting and make tha voice fuller. You can also connect a sequencer to the frequency cutoff of the filter and get melodic patterns. DPW Design, Häradsvägen 200, 14171 Segeltorp, Sweden www.dpw.se...
