Installation

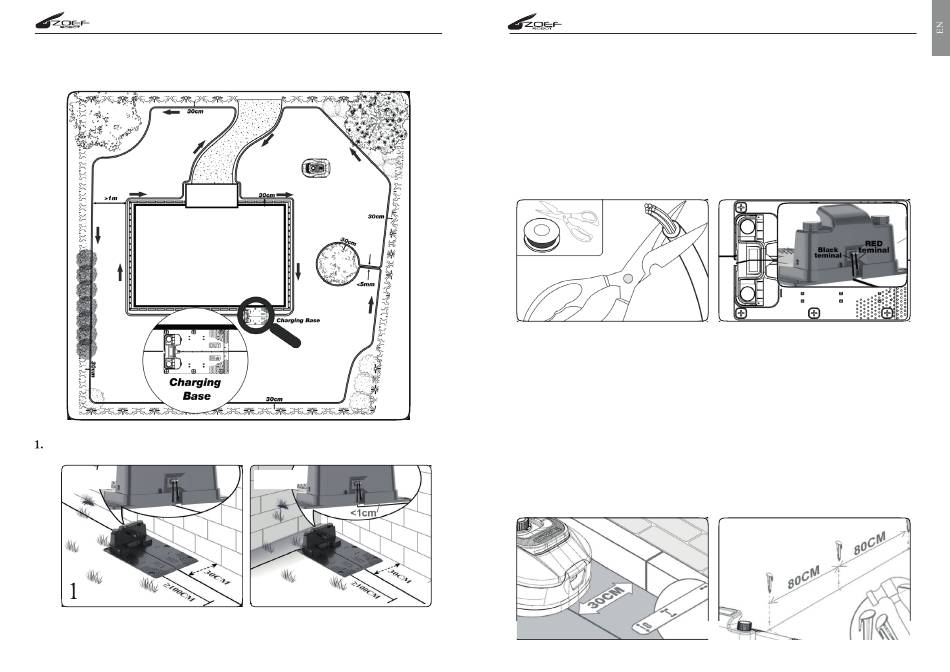

Installation of charging base
case 1
Place the charging station correctly. The robot must drive to the right when you
are standing in the field and looking at the charging station.
16
1
case 2
1.1 The charging base can be placed against Near the tool house OR house, when
laying the boundary wire, leave at least 1m of straight wire with no obstacles front of the
charging base.
NOTE: Boundary wire front of the charging base should be straight for 1m without
corners or obstacles to ensure proper docking. The charging station must be positioned on
relatively level ground. It must not be positioned on an inclined surface or anywhere that
makes its plate bend.
1.2 We recommended the Power supply placed the wall at least 30cm height, and the
power supply cord is outside the lawnmower working area. If not, you may bury it if
desired.
1.3 Stripping boundary wire about 10mm one end
2
1.4 Boundary wire insert the wire terminal(RED)----it's an OUT side, then the
boundary wire through the slot under the charging base plate.
1.5 When you laying boundary wire the working area loop, cut off unnecessary
wire, Stripping boundary wire about 10mm the other end, insert the other wire
terminal(Black)---it's an IN side.
2. Installation boundary wire (NOTE)
2.1 When laying the boundary wire, use the distance gauge to keep a 30cm* space
between the wire and perimeter. Each wire peg should be placed around 80cm apart, use
the provided distance gauge to ensure proper installation. The ground is uneven area, the
peg density can be increased appropriately.
NOTE: the maximum permitted length for the boundary wire is 300m.
4
3
5
17
