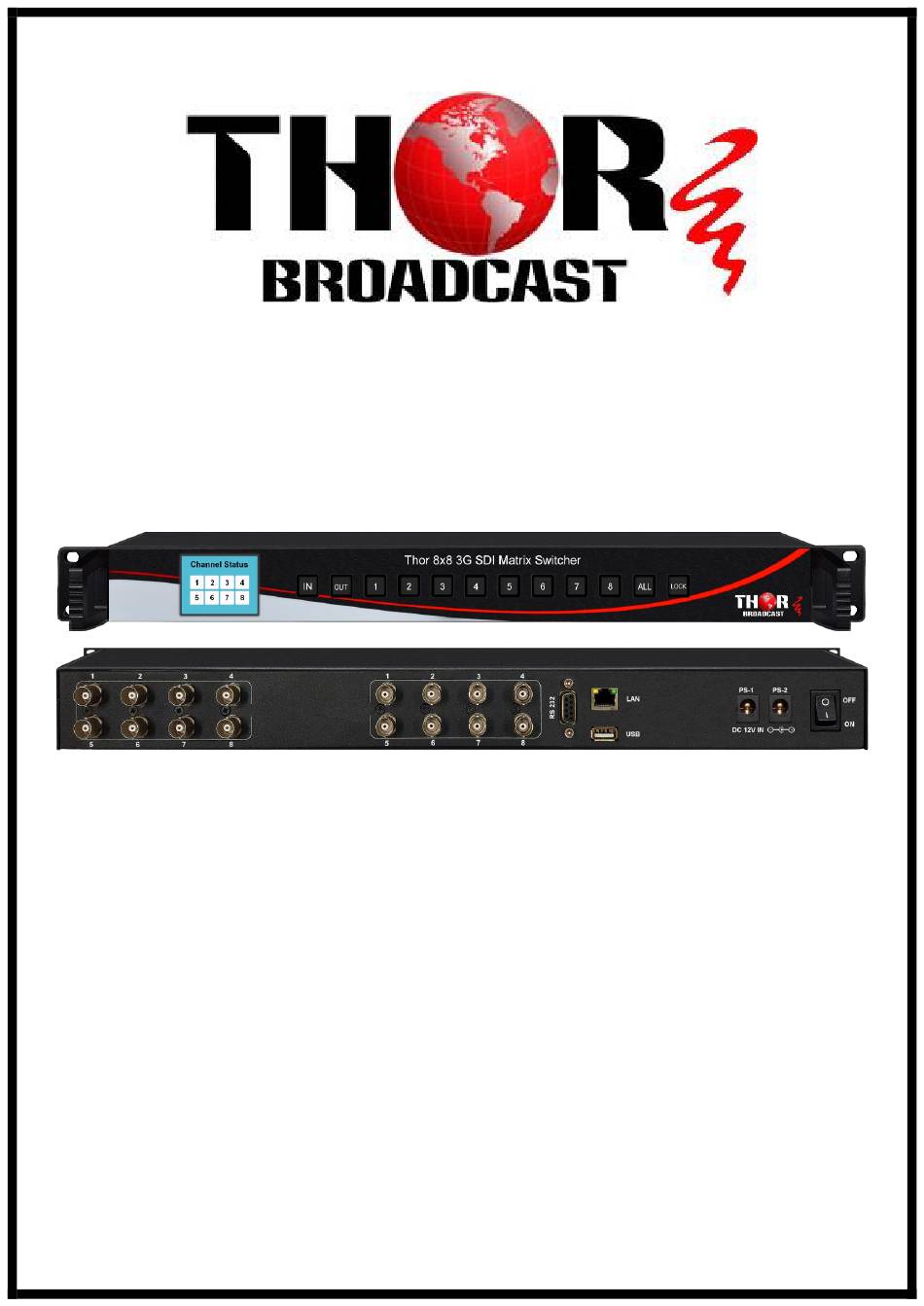

- Page 1 User Manual 8x8 3G SDI HD/SD-SDI Matrix Switcher H-8x8SDI-SW...
- Page 2 This document includes some confidential information. Its usage is limited to the owners of the product that it is relevant to. It cannot be copied, modified, or translated in another language without prior written authorization from Thor Broadcast. Tel: (800) 521-8467 Email: sales@thorfiber.com...
- Page 3 H-8x8SDI-SW The Thor 8x8 SDI Switcher is a 1RU easy to use, compact chassis that can enable you to easily use multiple SDI sources and output them in any arrangement you need. It includes multi format technology so it can auto detect multiple video format sources of SD/HD/3G-SDI (level A &...
- Page 4 H-8x8SDI-SW Connections 8×SD/HD/3G-SDI(75Ω BNC) SDI Video Input SDI Video Output 8×SD/HD/3G-SDI(75Ω BNC) Front panel button, Control USB keyboard, PC software via LAN/RS-232 Updates and Configuration LAN(RJ45) 8×SD/HD/3G-SDI(75Ω BNC) SDI Video Input SDI Video Output 8×SD/HD/3G-SDI(75Ω BNC) Tel: (800) 521-8467 Email: sales@thorfiber.com...
- Page 5 H-8x8SDI-SW Standards (2K) 2048×1080p 30/29.97/25/24/23.98 (2K) 2048×1080PsF 30/29.97/25/24/23.98 (HD) 1920×1080p 60/59.94/50/30/29.97/25/24/23.98 SDI Format Support (HD) 1920×1080PsF 30/29.97/25/24/23.98 (HD) 1920×1080i 60/59.94/50 (HD) 1280×720p 60/59.94/50 (HD) 1280×720p 30/29.97/25/24/23.98 (SD) 625i 50 (SD) 525i 59.94 SDI Auto Switching Automatically detects SD, HD and 3G-SDI...
-
Page 6: Front Panel Control
H-8x8SDI-SW Front Panel Control Switching an input to an output. e.g. press buttons “IN, 1, OUT, 2” to switch input 1 signal to output 2. Switching an input to multiple outputs. e.g. press buttons “IN, 1, OUT, 2, 4, 5” to switch input 1 signal to output 2, 4, 5. -
Page 7: Environmental Specifications
H-8x8SDI-SW Environmental Specifications Operating Temperature -20℃~60℃ Storage Temperature -30℃~70℃ Relative Humidity 0%~90% non-condensing Packing List H-8x8SDI-SW 1 PC User's Manual 1 PC DC 12V 2A Power Adapter x2 1 PC For Further Tech Support 1(800)521-THOR (8467) Ext 2 support@thorfiber.com...
