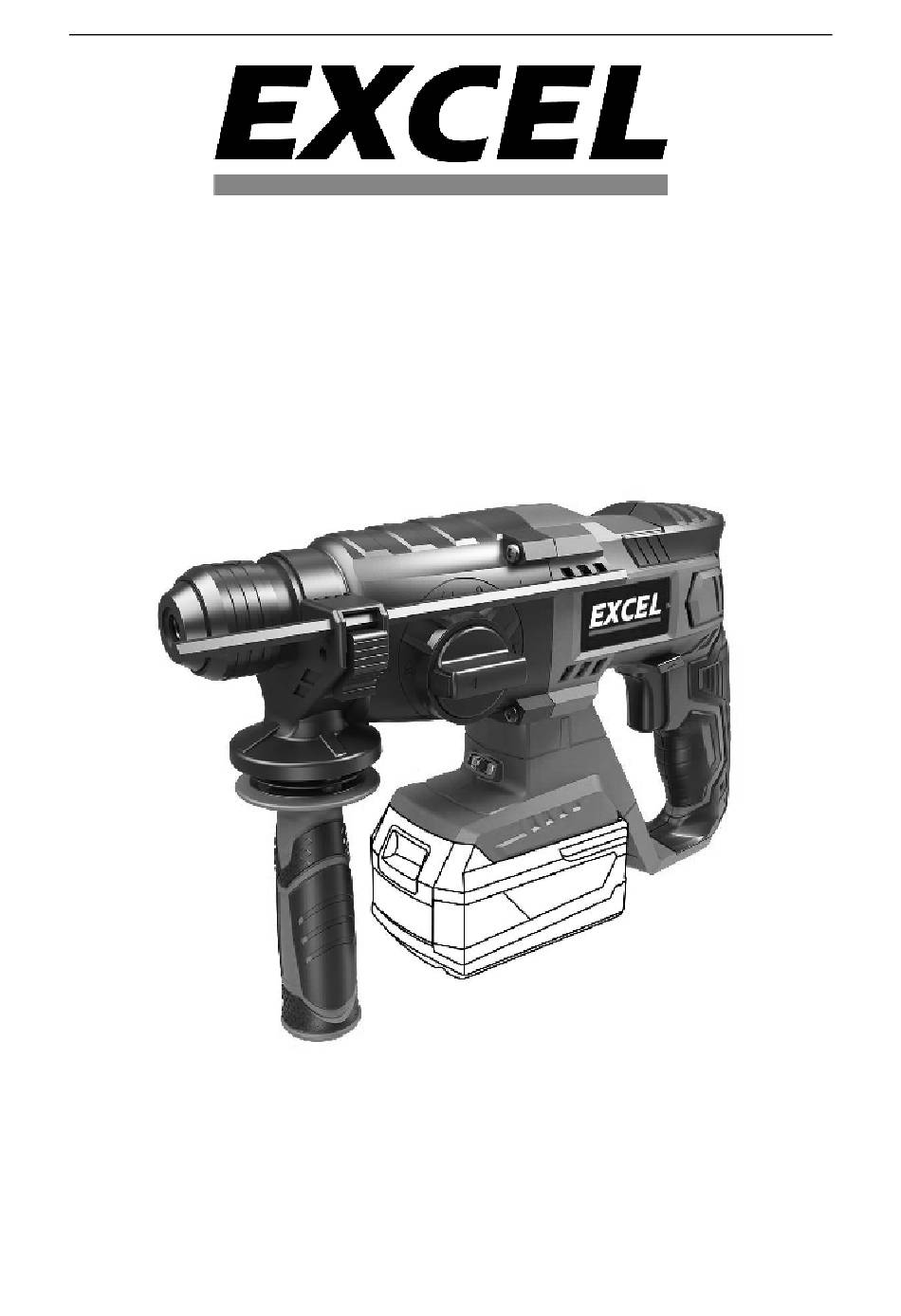

Original Instructions
CORDLESS ROTARY HAMMER 18V
11749/RH-L0118
INSTRUCTION MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 11749/RH-L0118 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Excel 11749/RH-L0118

  • Page 1 Original Instructions CORDLESS ROTARY HAMMER 18V 11749/RH-L0118 INSTRUCTION MANUAL...
  • Page 2: Description Of The Symbols

    Original Instructions DESCRIPTION OF THE SYMBOLS Read instructions carefully before any use Complies with relevant European regulations The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal.
  • Page 3 Original Instructions GENERAL SAFETY WARNINGS FOR THE TOOL WARNING Read all safety warnings and instructions. Failure to follow all the warnings and instructions may result in electric shock, fire and/or serious injury. SAVE ALL THE WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.
  • Page 4 Original Instructions energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
  • Page 5: Special Safety Instructions

    Original Instructions terminals together may cause burns or a fire. e) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
  • Page 6 Original Instructions However, if the outer seal is broken and this leakage comes into contact with your skin: ü Wash the affected area quickly with soap and water. ü Flush your eyes with clean water for a minimum of 10 minutes and seek immediate medical attention.
  • Page 7 Original Instructions DANGER: If the battery pack is cracked or damaged in any other way, do not insert it in the charging base. There is a danger of electric shock or electrocution. WARNING: Do not allow any liquid to come into contact with the charger. There is a danger of electric shock.
  • Page 8: Intended Use

    Original Instructions INTENDED USE The machine is intended for hammer drilling in concrete, brick and stone. It is also suitable for drilling without impact in wood, metal, ceramic and plastic. Machines with electronic control and right/left rotation are also suitable for screwdriving.
  • Page 9: Noise/Vibration Information

    Original Instructions TECHNICAL SPECIFIATIONS Product Description 18V Li-ion Rotary hammer Rated voltage of battery Rated Speed 0-1,500rpm Impact Frequency 0-5,500t/min Chuck SDS PLUS Steel Ø 13 mm Max. Drilling capacity Concrete Ø 20 mm Wood Ø 26mm Noise Sound pressure level K=3 dB(A) 87 dB(A) Sound power level K=3 dB(A)
  • Page 10 Original Instructions An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.
  • Page 11 Original Instructions WARNING: Always disconnect the battery pack from the tool before any assembly, adjustments or changing accessories. b. Insertion and removal of rechargeable battery (Fig.2) Depress the battery-release button located on the front of the battery pack to release battery pack. Pull the battery pack out and remove it from the tool.
  • Page 12: Fitting The Auxiliary Handle

    Original Instructions Your drilling depth can be pre-set and/or repeated by using the depth stop. Insert the required drill bit. Fit the depth stop into the hole of auxiliary handle and set the required depth. FITTING THE AUXILIARY HANDLE Warning: Always use the tool with the auxiliary handle properly assembly. Loosen the auxiliary handle by unscrewing it.
  • Page 13 Original Instructions Functions Switching on and off 1. Press the on/off switch to switch on the power tool. 2. Release the switch to switch off the power tool. Adjust rotational speed The rotational speed of this power tool can be adjusted with the on/off switch: The more you press the on/off switch the faster is the rotation speed.
  • Page 14 Original Instructions Mode setting The rotary hammer drill can be used in the following operation modes: Rotary drilling - For screwdriver and for drilling into steel, wood and plastics. Hammer drilling - Simultaneous rotating and impacting for concrete and masonry drilling. Hammer only - For light chipping, chiselling and demolition applications Bit rotation - Non-working position used only to rotate a flat chisel into the desire position.
  • Page 15 Original Instructions 6. Pay attention to that the rotational speed of the power tool is efficient. Do not expose too high pressure on it. Working light The work light is switched on and off together with the power tool when pressing the on/off switch.
  • Page 16 Exceltools.co.uk Sales@exceltools.co.uk...
