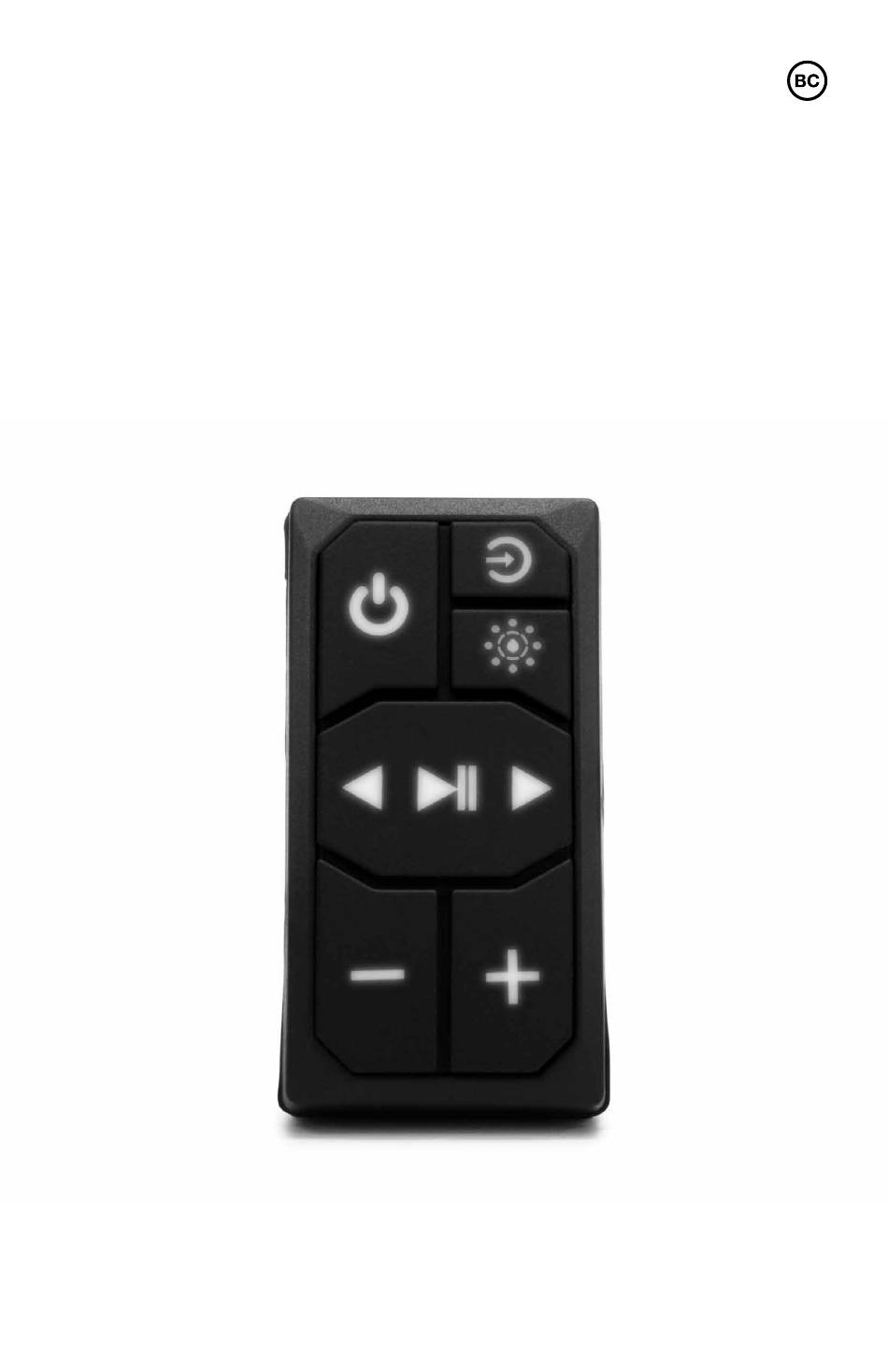

- Page 1 Bluetooth Receiver Remote Control Model: SEI-SERXBT User Guide...
- Page 2 Important · Please read this User Guide before installation and use. · CAUTION: The power input voltage range for your Bluetooth® Receiver Remote Control (referred to as Receiver) is 9V to 16V. It is designed to work with a +12V DC battery power supply. If your vehicle battery power output is not 12V (e.g., 24V, 36V, or 48V), you will need a voltage converter with 12V output (e.g., a 48V-to-12V converter).
- Page 3 EcoCast The Receiver also has EcoCast built-in, which allows the Receiver to broadcast (transmit) or receive audio streams to/from other EcoCast-enabled products. ECOXGEAR and SoundExtreme have a complete line of EcoCast-enabled speakers, soundbars, subwoofers, and radios. If you currently do not have any other EcoCast-enabled product to work with the Receiver, you can skip all EcoCast-related content.
- Page 4 Introduction RECEIVER AUDIO MODE CONNECTED TO PHONE ECOCAST Speaker (Bluetooth) Disabled EcoCast Transmitting Transmitting EcoCast Receiving Receiving Aux-In Disabled or Enabled (Transmitting)
- Page 5 Introduction AUDIO INPUT TO RECEIVER AUDIO OUTPUT TO AMPLIFIER The Receiver is connected to a Audio Output via the RCA cables that phone’s Bluetooth signal. are connected to an amplifier, radio, soundbar, etc. The Receiver is connected to a Audio Output via the RCA cables phone’s Bluetooth signal.
-
Page 6: Receiver Overview

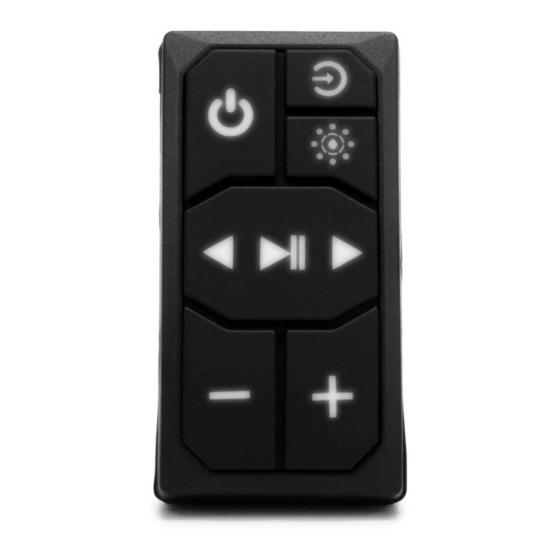

Receiver Overview Receiver Layout Audio Mode Button Power Button EcoCast Button Play / Pause and Tracking Buttons Volume Buttons Inputs and Outputs Power Inputs: +12V Wire (Red) / GND Wire (Black) Remote Turn-On Wire (Dark Blue) Aux-In Input Audio Outputs: Right (Red) / Left (White) Amp-On (Yellow) - Page 7 Receiver Overview Connectors Inputs: · Power +12V, GND · Remote Turn-On (input signal: 12 - 56V) – When this input is connected to your vehicle’s ignition switch (or rocker switch or any switch accessory panel), it will turn on or off without having to press the Power Button ·...
- Page 8 Receiver Overview Mute · When the Receiver is playing music, double-click the Power Button to mute or unmute your audio. · When the Receiver is muted, short-press any button to unmute. Enable Bluetooth and EcoCast Pairing · Short-press EcoCast Button to enable EcoCast pairing.
- Page 9 Receiver Overview Status Indicator behind the Audio Mode Button will flash Red, indicating EcoCast pairing has been enabled. · When the Audio Source is switched to EcoCast Receiving Mode, the Receiver will announce, “EcoCast Receiving”. The Status LED behind the Audio Mode Button will flash Green, indicating EcoCast pairing has been enabled.
- Page 10 Receiver Overview BUTTON ACTION FUNCTION Press and Hold To turn on / off the Receiver. (for 3 seconds) Short-Press To turn on / off the Backlit Buttons. Double-Click To mute / unmute audio. Short-Press To cycle through each of the four Audio Source Modes.
-
Page 11: Led Status Indicator
Receiver Overview LED STATUS INDICATOR VOICE PROMPT · On: The Receiver is connected to a phone. · Off: No LED. Bluetooth Audio Mode · "Speaker Mode. Ready to connect." · Solid Blue – Bluetooth Mode. · " Your phone is connected." Power Button LED Status Indicator ·... - Page 12 Receiver Overview BUTTON ACTION FUNCTION Short-Press EcoCast Pairing. Press and Hold Bluetooth Pairing. (for 3 seconds) Short-Press Play or pause. Short-Press Skip to next track. Short-Press Skip to previous track. Short-Press Increase volume. Press and Hold Increase volume continuously. (for 3 seconds) Short-Press Decrease volume.
- Page 13 Receiver Overview LED STATUS INDICATOR VOICE PROMPT · Flashing Red, Green, or Yellow, depending on the Audio Mode. · Flashing Blue. · "Ready to connect."...
-
Page 14: Installation And Wiring
Installation and Wiring Installing Your Receiver Onto Your Vehicle The Receiver is designed to snap into a standard Carling style rocker switch opening. · If you already have that style of an opening on your vehicle, you can simply snap the Receiver into place. ·... - Page 15 Installation and Wiring WARNING! Only connect to a 12V power supply. Do NOT connect to a 24V, 36V, or 48V power supply. Connecting the Receiver directly to these higher voltages will cause damage to the Receiver and VOID THE PRODUCT WARRANTY. Connecting the Remote Turn-On Input Wire to a Switch Besides the 12V power supply, the Receiver has an optional Remote Turn-On Signal Input to turn on and power off via your vehicle's...
- Page 16 Installation and Wiring Connecting Your Audio Output 1. Connect the audio output to the audio power amplifier inputs with an RCA to RCA cable (not included) or an RCA to 3.5mm audio cable (not included). 2. Connect the AMP-On Wire (Yellow) to the Remote-Control input on the audio power amplifier.
-
Page 17: Audio Functions
Audio Functions First Time Pairing in Speaker (Bluetooth) Mode 1. Press and hold the Power Button to turn on the Receiver. If the Receiver is in Speaker (Bluetooth) Mode, it will announce, "Speaker Mode. Ready to connect,” and the LED Status Indicator behind the Power Button will flash Blue. - Page 18 Audio Functions your family member or friend’s phone. Follow the steps outlined below to switch back and forth between two phones: 1. Connect your phone to the Receiver. 2. Press and hold the EcoCast Button for 3 seconds. This will disconnect your phone and enable Bluetooth pairing.
- Page 19 Audio Functions EcoCast – Stream Music Between Multiple Speakers x100 The Receiver has EcoCast built-in, which allows it to broadcast (transmit) or receive wireless audio streams to or from other EcoCast-enabled products. EcoCast: First Time Pairing in EcoCast Mode Like the Bluetooth pairing between the Receiver and your phone, there is an EcoCast pairing process.
- Page 20 Audio Functions 4. Once the connection between the products is successful, Speaker A will announce, “Connection successful,” and start playing music. EcoCast: Additional Receiving Speakers To add additional EcoCast-enabled products, follow the steps below: 1. Turn on additional EcoCast-enabled products (Speaker B and Speaker C) and put them into EcoCast Receiving Mode.
- Page 21 Audio Functions Receiver). If they do not automatically reconnect, please follow the above steps to reconnect. · The EcoCast functionality has a maximum range of 30 feet between products. · While connecting the speakers, make sure that they are within a few feet of each other.
- Page 22 Audio Functions Note: Your Receiver in EcoCast Receiving Mode will play at the same volume level (Volume Sync) as received in the audio streams from the EcoCast Transmitting product. You can press on the Receiver to adjust the volume for its Audio Outputs only. However, as soon as the EcoCast Transmitting product has a playback change (e.g., track change or a volume change), the Receiver will once again Volume Sync with the Transmitting speaker.
- Page 23 Audio Functions 3. Once the connection between the products is successful, Speaker A will announce, “Connection successful,” and start playing your Aux-In audio. If you wish to disable EcoCast Transmitting again while in Aux-In Audio Mode, you can press the Buttons at the same time.
-
Page 24: Specifications
Specifications Dimensions 0.82 in / 21 mm 1.02 in / 26 mm 2.74 in / 70 mm... -
Page 25: Storage Temperature
Specifications Unit Weight 3.88 oz (110 g) Power Input 9~16V, 1A Remote Turn-on Input 9~56V, 1A AMP-On Output 9~16V, 1≤12mA Bluetooth Frequency Band 2.402~2.480GHz ISM Spectrum Bluetooth Compliance Bluetooth® 5. 1 EcoCast Range 30 ft / 9. 1 m between Casting speaker and the Receiver Storage Temperature -40°F to 122°F / -40°C to 50°C... -
Page 26: Important Legal Information
Important Legal Information FCC STATEMENT: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.) This device may not cause harmful interference, and 2.) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. -
Page 27: Limited Manufacturer's Warranty
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by ECOXGEAR is under license. Other trademarks and trade names are those of their respective owners. Bluetooth Receiver Remote Control by SoundExtreme Inc., Houston, Texas. -
Page 28: What's In The Box
What’s in the Box Bluetooth Receiver Remote Control Bluetooth Receiver Remote Control Model: SEI-SERXBT User Guide User Guide...
