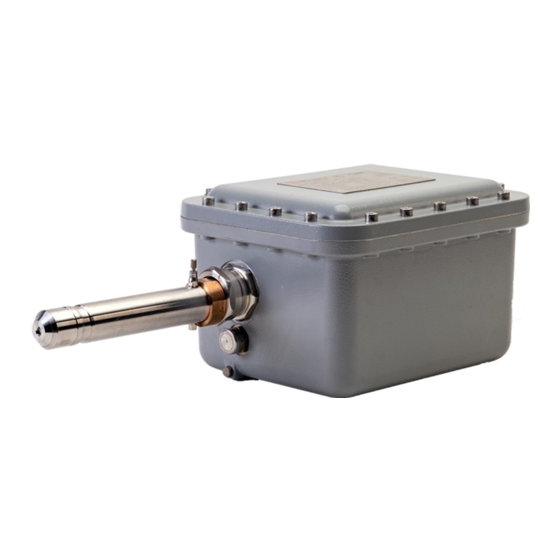

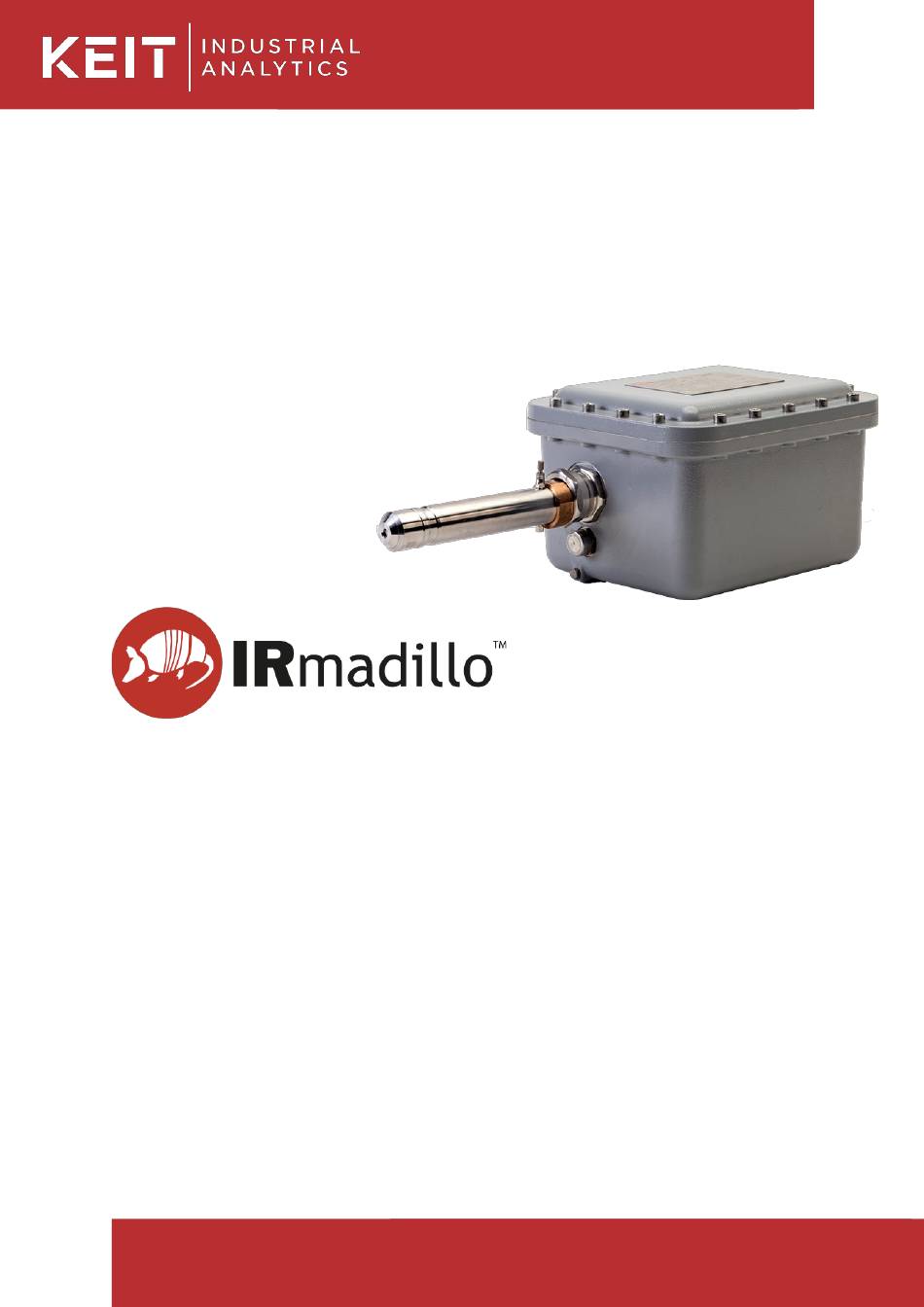

- Page 1 DOC1048R IRmadilloNA User Manual - Safety Model Number: ASM0627-09-N-Cx-O-Gx-D3x www.keit.co.uk support@keit.co.uk DOC1048R 21 December 2023, 17:31...
-
Page 2: Table Of Contents
IRmadilloNA spectrometer ..................15 4.2. Controller specifications ..................17 Welded Hub For Lap Joint Flange Option ..............18 5.1.1. Safety ......................18 5.1.2. Installation ..................... 19 5.1.3. Maintenance ....................20 DOC1048R (21 December 2023 17:31) www.keit.co.uk Back to Table of Contents... - Page 3 Page 2 Troubleshooting ......................22 Appendix 1: Controller Specifications .................. 24 DOC1048R (21 December 2023 17:31) www.keit.co.uk Back to Table of Contents...
-
Page 4: Safety
Le non-respect des exigences ci-dessous peut conduire à des situations dangereuses. If the equipment is used in a manner not specified by Keit, the protection provided by the equipment may be impaired. This manual is intended to be read in conjunction with DOC1049R which describes non-safety aspects of using the IRmadilloNA. -
Page 5: Electrical Safety
Do not exceed the pressure limits on the product label as this could be dangerous and will invalidate the warranty. If in doubt, contact Keit for advice before installing the spectrometer. When purging the instrument, the maximum total flow rate of the purge gas is 3 liters/minute. -
Page 6: Specific Conditions Of Use
It is the responsibility of the manufacturer to confirm conformity with this condition. Instrument design confirms conformity with this condition. iii. It is the responsibility of the manufacturer to confirm conformity with this condition. Does not apply to model number ASM0627-09-N-Cx-O-Gx-D3x. DOC1048R (21 December 2023 17:31) www.keit.co.uk Back to Table of Contents... -
Page 7: Passed On From Redapt Bd-U Breather Certification: Iecex Its 16.0014X
26: Equipment with Equipment Protection Level (EPL) Ga 1.7. Product marking The device is certified for installation in explosive gas atmospheres and uses a flameproof enclosure for protection. It is marked with its certification coding. DOC1048R (21 December 2023 17:31) www.keit.co.uk Back to Table of Contents... -
Page 8: Pressure And Temperature Limits
Refer to the product label to confirm the limits. Do not exceed the pressure limits on the product label as this could be dangerous and will invalidate the warranty. If in doubt, contact Keit for advice before installing the spectrometer. 1.7.2. Partition walls The minimum partition wall thickness is 1 mm. -
Page 9: How To Power And Connect The Irmadillona
(UPS). Contact support@keit.co.uk for further information. If you are unable to use a UPS, you may find that the system fails to start correctly following a power cut. In this situation, Keit recommends power cycling first the IRmadilloNA and then the controller. - Page 10 Failure to properly earth the spectrometer may cause WARNING serious injury or death. AVERTISSEMENT Une mise à la terre incorrecte du spectromètre peut causer des blessures graves, voire la mort. Figure 2: Optional External Earthing point DOC1048R (21 December 2023 17:31) www.keit.co.uk Back to Table of Contents...
-
Page 11: How To Connect Data Communications
Rotate the shell secure and complete the connection • Check that the green and orange lights on the controller are present (Figure 5) Figure 3 Hawke in-line plug and socket DOC1048R (21 December 2023 17:31) www.keit.co.uk Back to Table of Contents... -
Page 12: Connecting The Fibre Data Communication Cable To The Controller
Please refer to the interface drawings of your probe and mounting system for further guidance. If you have not been provided with interface drawings, please contact support@keit.co.uk. To ensure success with installs, it is important to consider the following requirements: DOC1048R (21 December 2023 17:31) www.keit.co.uk... - Page 13 The IRmadilloNA needs to be suitably supported. The weight of the instrument is ~18 kg, and it must be supported using the mounting points at the base, either through a custom stand or using a Keit Cradle. The probe should not be used to support the instrument.
- Page 14 Page 13 • The IRmadilloNA body should not be placed directly in caustic or acidic environments. The body is made from aluminium and will break down. DOC1048R (21 December 2023 17:31) www.keit.co.uk Back to Table of Contents...
-
Page 15: Maintenance
IRmadilloNA functioning at the highest level. Keit requires access to the Spectrometer User account on the controller in order to provide remote support. If this is not possible, any issues will require the system to be returned to Keit for diagnosis. -
Page 16: Components
(D) Probe (gas) purge outlet Allows purge gas to escape the probe. There is a single outlet located on the probe for all purge gas to escape. DOC1048R (21 December 2023 17:31) www.keit.co.uk Back to Table of Contents... - Page 17 Legris push-fit fitting typically fitted with a blanking plug that will need to be removed to allow connections. Rigid or fixed piping may be used if the fitting is compatible and mechanical stress is avoided. DOC1048R (21 December 2023 17:31) www.keit.co.uk Back to Table of Contents...
-
Page 18: Controller Specifications
KeitSpec software application. The system administrator account is provided to make changes to the operating system configuration and install additional software, if required. If providing Keit remote access to the controller, the connection should be to the ‘standard’ Spectrometer user account. Windows... -
Page 19: Welded Hub For Lap Joint Flange Option
The flange and hub form a seal with the process pipework and as such are safety critical to prevent an accidental discharge of the process media. Keit recommends regular inspection of the integrity of the welds on the front and rear in line with local safety procedures. -
Page 20: Installation
The probe body and hub are manufactured from Hastelloy as standard, which is resistant to many aggressive chemicals. However, you are advised to check with Keit before installing on a new process. Before beginning installation, ensure that the gasket is in good condition and that the sealing faces are not scratched or dented. -
Page 21: Maintenance
Ensure that the bolts are sufficiently tight to prevent a leak from your pipework. 5.1.3. Maintenance Keit recommends regular inspection of the integrity of the welds on the front and rear in line with local safety procedures. Inspection of the sealing weld will require removal of the flange and spectrometer from the pressure vessel and can be completed as part of regular inspection/maintenance of the spectrometer and pipework. - Page 22 The lap-joint flange may be manufactured from Hastelloy or stainless steel. Care should be exercised to ensure that it is not corroded by aggressive chemicals during maintenance or installation. DOC1048R (21 December 2023 17:31) www.keit.co.uk Back to Table of Contents...
- Page 23 It will take time to a high temperature stabilise the internal temperature and you must wait for this to occur. Thermal shutdown activated Contact Keit for advice on operation outside of resetting the instrument specification. Check that your purge gas specification is suitable and...
- Page 24 Page 23 Issue Cause Potential Solution Damage to ATR element Contact Keit Contamination of ATR Clean the probe. Refer to element DOC1049R. Unrepeatable measurements Dip probe misaligned by Contact Keit inappropriate use Analyte temperature Some cross sensitivity is changes expected DOC1048R (21 December 2023 17:31) www.keit.co.uk...
- Page 25 The maximum possible length is determined by the fibre optic cable type used: Type OM1 (62.5/125μm): max length 275m Type OM3 (50/125μm): max length 500m Keit offers an optional OM3 extension with ASM0627-09-x-Cx-O-G- Dxx. DOC1048R (21 December 2023 17:31) www.keit.co.uk Back to Table of Contents...
- Page 26 LED green (blinking) when in suspend state DATA LINK: ACTV LED amber (flashing) when data transmission is active between fibre-optic converter and spectrometer LED off when in suspend mode DOC1048R (21 December 2023 17:31) www.keit.co.uk Back to Table of Contents...
- Page 27 The COM ports are terminated with standard 9-way male D-sub Connector Plugs. The COM ports are configured in the BIOS by default to RS485 (RS232 and RS422 is available if required). DOC1048R (21 December 2023 17:31) www.keit.co.uk Back to Table of Contents...
