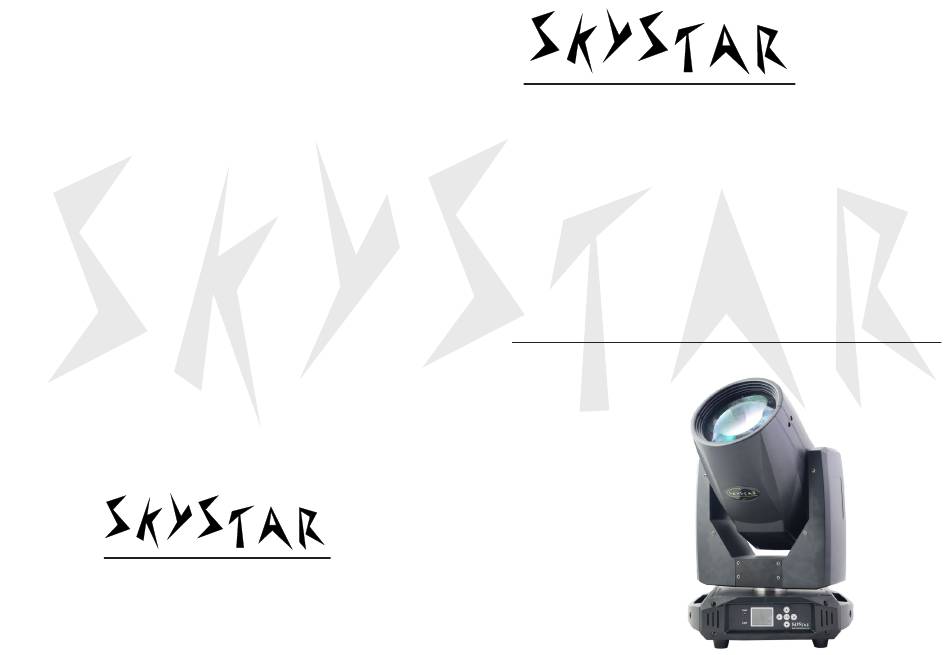

- Page 1 PROFESSIONAL SHOW LIGHTING SR-300 BEAM MOVING-HEAD USER MANUAL GUANGZHOU LIGHTSTAR LIGHT CO.,LTD Http://www.lightskystar.com...
- Page 2 1.INDEX Many thanks for choosing SR-300 beam moving head. Thedesign&production are passed through the full quality control to ensure the fineness ability. This manual covers important information about install- ation&operation of this projector.Please rsad this user manual carefully before installing or operating this projector.Please do follow the safety instruction.list as below carefully and keep this...
- Page 3 3.Install and safe usage 3.1 Install the porjector: 3.1.1 Requirement for the installing place: Please do ensure fasten the mount bracket firmly before installing. The mount bracket must share the weight 10 multiple weight of the projector`s. 3.1.2 The method of installstion and caution: 3.1.2.1 Connect the mount bracket well and fix the clamp firmly to the truss in order to avoid the projector loose or falling.
- Page 4 When fix the orientation of the projector. Please keep the minimum SR-300 DMX Channel Control distance between the flammable retarding subject and the porjector`s shot is 0.8M at least.(Picture1) But the minimum distance between the inflammable and the projector`s lens should be kept away 2m at least.
-
Page 5: Technical Parameter
Color temperature:8000K 4.2 Lamp replacement Per to the SR-300 ,please open the lamp access panel at the rear of the projector by undoing the 4 hand-operated screw.then you can begin to replace the lamp.Pull out the old lamp from the lamp bracket and then pug in the new lamp. - Page 6 4.3 Warning! menu selection Warning1:Disconnecting the power supply if there are no lamp fixed inside the light well. Or it will burn downthe light. Warning2:Disconnecting the power supply before replacing the lamps. Warning3:When the lamp is operating, its temperature will be extremly high.The feature of the recharge lamp couldn`t work un- der the interruption power supply.Therefore,please let the lamp setting:...
- Page 7 6.Set the DMX IP code To make sure every projector react to the control signal correctly a 5.2 Signal connection digital starting IP code should be given to every MAX projector. Digital Please use the round 3-pin XLR plugs&sockets offered by menu star IP code is a channel munber.
