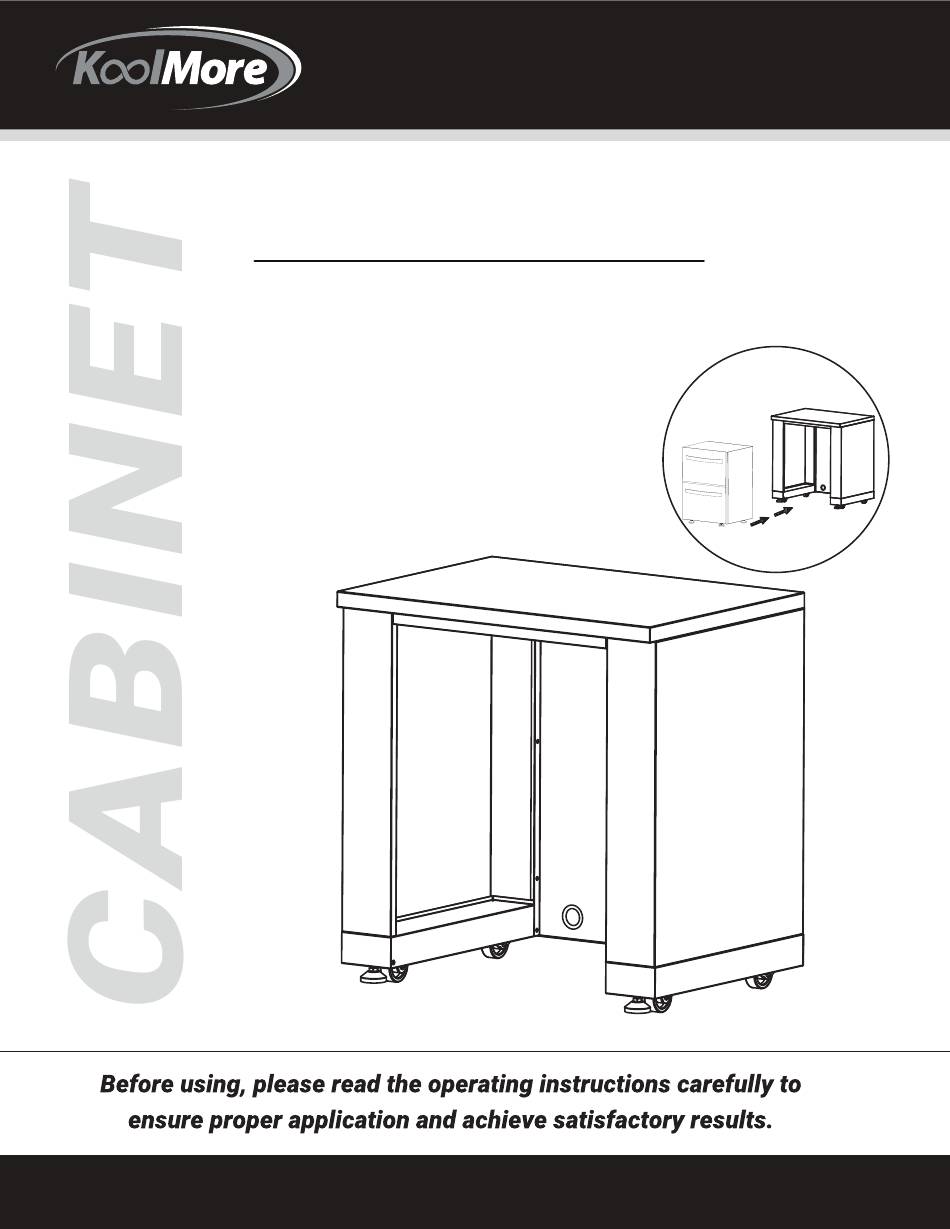

INSTALLATION MANUAL
KoolMore Outdoor Kitchen System
Appliance Cabinet Modular
Model:
KM-OKS-UCRCAB
(Compatible With The KoolMore Outdoor Kitchen System)
For any service-related Issues, please contact
us: Phone Number: 718-576-6342
Email address: support@koolmore.com
Advertisement
Related Manuals for KoolMore KM-OKS-UCRCAB
Summary of Contents for KoolMore KM-OKS-UCRCAB
- Page 1 INSTALLATION MANUAL KoolMore Outdoor Kitchen System Appliance Cabinet Modular Model: KM-OKS-UCRCAB (Compatible With The KoolMore Outdoor Kitchen System) For any service-related Issues, please contact us: Phone Number: 718-576-6342 Email address: support@koolmore.com...
- Page 2 Parts Explosive Drawing 35.1” Part Name Countertop welding assembly Left side panel welding assembly Right side panel welding assembly Back panel welding assembly Beam welding assembly Right bottom panel welding assembly Left bottom panel welding aseembly 24.1” 25” Universal caster with brake Fixed caster Supporting leg Rubber gasket...
-
Page 3: Cabinet Installation
Cabinet Installation STEP 1 1. Attach two supporting legs (Part # 10) to the right and left bottom welding assemblies (Part # 6 and Part # 7, respectively). Manually adjust these legs to achieve an optimal position. 2. Secure two fixed casters (Part # 9) and two universal casters (Part # 8) to Parts #6 and #7 using sixteen ¼"... - Page 4 Cabinet Installation STEP 2 1. Join the left side panel (Part # 2) to Part #6 with five ¼" flat Philip's head screws (Part # 12). 2. Similarly, attach the right side panel (Part # 3) to Part #7 using an additional five ¼" flat Philip's head screws (Part # 12).
- Page 5 Cabinet Installation STEP 3 1. Affix two rubber gaskets (Part # 11) to the Back Panel (Part # 4). 2. Connect Part #4 to Part #2 and #6 by utilizing four ¼" flat Philip's head screws (Part # 12). 3. Similarly, fasten Part #4 to Part #3 and #7 with an additional four ¼" flat Philip's head screws (Part # 12). 4.
- Page 6 Cabinet Installation STEP 4 1. Link the beam welding assembly (Part # 5) to Parts #2 and #3 using two ¼" flat Philip's head screws (Part # 12). 2. Ensure the connections are seamless. Remember, avoid over-tightening the screws until all parts are suitably aligned.
- Page 7 Cabinet Installation STEP 5 1. Assemble the top cover board (Part # 1) with Parts #2, #3, #4, and #5, employing twelve ¼" flat Philip's head screws (Part # 12). 2. Confirm the connections are smooth. Do not over-tighten the screws until the alignment of all parts is confirmed.
- Page 8 KoolMore Outdoor Kitchen System The KoolMore Outdoor Kitchen System is tailored to blend smoothly with any other model in our series. If you have a Corner Cabinet and want to connect it with another cabinet, simply use the Corner Cabinet Connecting Plate and two ¼" screws (Part# 12) for a seamless connection.
-
Page 9: Limited Warranty
At its sole discretion, Koolmore Supply Inc. may decide to replace the product. In such an event, your replace- ment appliance will carry the warranty for the remaining term of the original unit's warranty period.
