Summary of Contents for Torrey WI Series

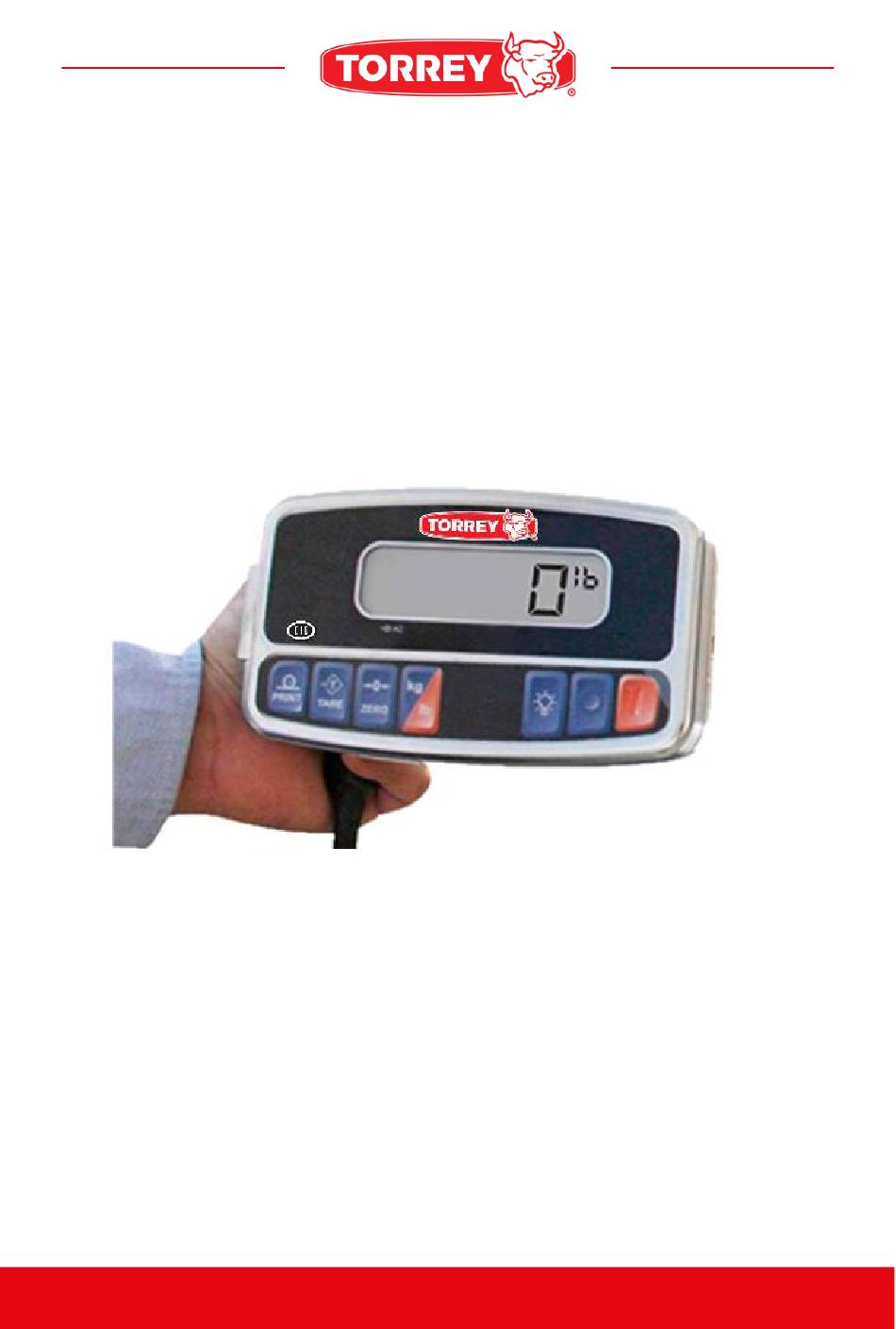

- Page 1 OWNER`S MANUAL ELECTRONIC INDICATOR WI WI SERIES BEFORE OPERATING THIS SCALE, PLEASE READ THIS MANUAL THOROUGHLY. CODE: 13100516 REV 1.1...
-
Page 2: Table Of Contents
HOW TO CONNECT THE LOAD CELL FIXING THE INDICATOR TO THE WALL COMMUNICATION SOFTWARE FOR THE PC TECHNICAL SPECIFICATION FOR THE SERIAL PORT COMMUNICATION FORMAT FOR THE PC POWER OFF TIME FUNCTION THE RECHARGEABLE BATTERY MAINTENANCE AND CLEANNESS TROUBLESHOOTING TECHNICAL SPECIFICATIONS ADDITIONAL DATA WI SERIES... -
Page 3: Introduction
Counting scale INTRODUCTION The Torrey wi indicator is part of the wide range of Torrey products, as industrial scales, receiving labelings, truck, receiving, counter, etc. IMPORTANT WARNINGS In case have problema wiht the scale, firts read the warranty condiction. Do not open the scale on your own. - Page 4 WARNING! Do not open the scale Caution: to reduce the risk of short circuit in your scale, do not remove the cover or sustitute any of the parts for others that are not original only authorized distributor.. WI SERIES...
-
Page 5: Name And Location Of Important Parts
SCALE INDICATOR INDICATOR PARTS 1.-Cabinet: 2.- Display: show the weight 3.- Membrane keyboard 4.- Rechargeable battery lid 5.- Security seal: used for calibrate the scale. Only for only authorized personnel 6.- Jack: connection for the ac/dc power supply 7.- DB9 connector: sends the weight to a printer of pc, using RS-232 8.- Cell connector: receives the weight sensor information... -
Page 6: Keyboard
MEMBRANE KEY BOARD Turn off the scale Turn on the scale Turn on/off the backlight Switch units between kg and lb Send the current weight, shown on display, to a pc or printer using rs-232 serial communication. This key adjust to zero the initial reference, you can use it when you want to eliminate a weight permanently. -
Page 7: Display Section
SCALE INDICATOR DISPLAY SECTION 4. ZERO INDICATOR: TURNS ON WHEN 1. Weight section: it shows the THERE IS A ZERO BALANCE CONDITION. weight of the product. 2. Unit weight section: it shows the 5. AC/DC POWER SUPPLY INDICATOR: unit weight kg or lb TURNS ON WHEN THE AC/DC ADAPTOR IS CONNECTED 6. - Page 8 Press kg/lb to move this value to the left. Example: if you wish to configure the indicator to 150 kg FUNCTION DISPLAY Tare 1 kg Kg/lb 10kg Tare * 5 15kg Kg/lb 150kg Backlight Accept value WI SERIES...
-
Page 9: How To Calibrate The Indicator
SCALE INDICATOR HOW TO CALIBRATE THE INDICATOR Once that you have configured you indicator it’s necessary to calibrate it. • Press the push button while the countdown. • The indicator will show the message “conf” press the zero Key. The indicator will show the message “cal” press the backlight key. •... -
Page 10: Fixing The Indicator To The Wall
We have developed software that you can use to see the sent weight by the scale in the computer screen. 1.- Enter to our website http://www.torrey-cloud.com/downloads/ 2.- In the support area, enter to Software and manuals section 3.- In scale software, enter to disk and the software scale.Exe will download automatically. -
Page 11: Communication Format For The Pc
SCALE INDICATOR 4. – Serial cable configuration DB9/DB9: Connections of serial cable DATA FORMAT FOR THE PC INFORMATION IN ASCII CODE:... -
Page 12: Power Off Time Function
F. Do not use detergents nor corrosive liquids while cleaning. G. Do not move your scale around. Constant movement can cause strokes that damage it. H. Do not expose your scale to temperatures below -10 ºc (14 ºf) or above 40 ºc (104 ºf). WI SERIES... -
Page 13: Troubleshooting
SCALE INDICATOR TROUBLESHOOTING GUIDE Before you call for service to your authorized distributor, check this manual again to avoid a misunderstanding. PROBLEM POSSIBLE CAUSE SOLUTION THERE IS NOT ELECTRIC WITH A MULTIMETER CHECK THE CURRENT. CURRENT OUTLETS. CHECK THE AC/DC POWER AC/DC POWER SUPPLY SUPPLY TERMINALS, IF IT IS CABLE HAS A FALSE... -
Page 14: Technical Specifications
Rate of samples 3 samples / second Display area 3.650” x 1.000 Operation temperature range 14ºf A 104 ºf Storage temperature range -4ºF A 122 ºF Approved by KEYBOARD. 2. OVERLAY 3. WI (CASE) 4. MASTER BOARD 5. 6V BATTERY 6. BATTERY ARNESS WI SERIES... -
Page 15: Additional Data
SCALE INDICATOR ADDITIONAL DATA The serial number of this product can be found in the register plate under the scale. We suggest you that write the serial number and the scale model in the following spaces and hold them as proof of your acquisition and as identification in case of loss or to future request. - Page 16 ELECTRONIC SCALE www.torrey.net...
