Actuator Systems TCR-40C Series Usage Instructions

TCR-40C-All Series-Intelligent on/off actuator usage instructions

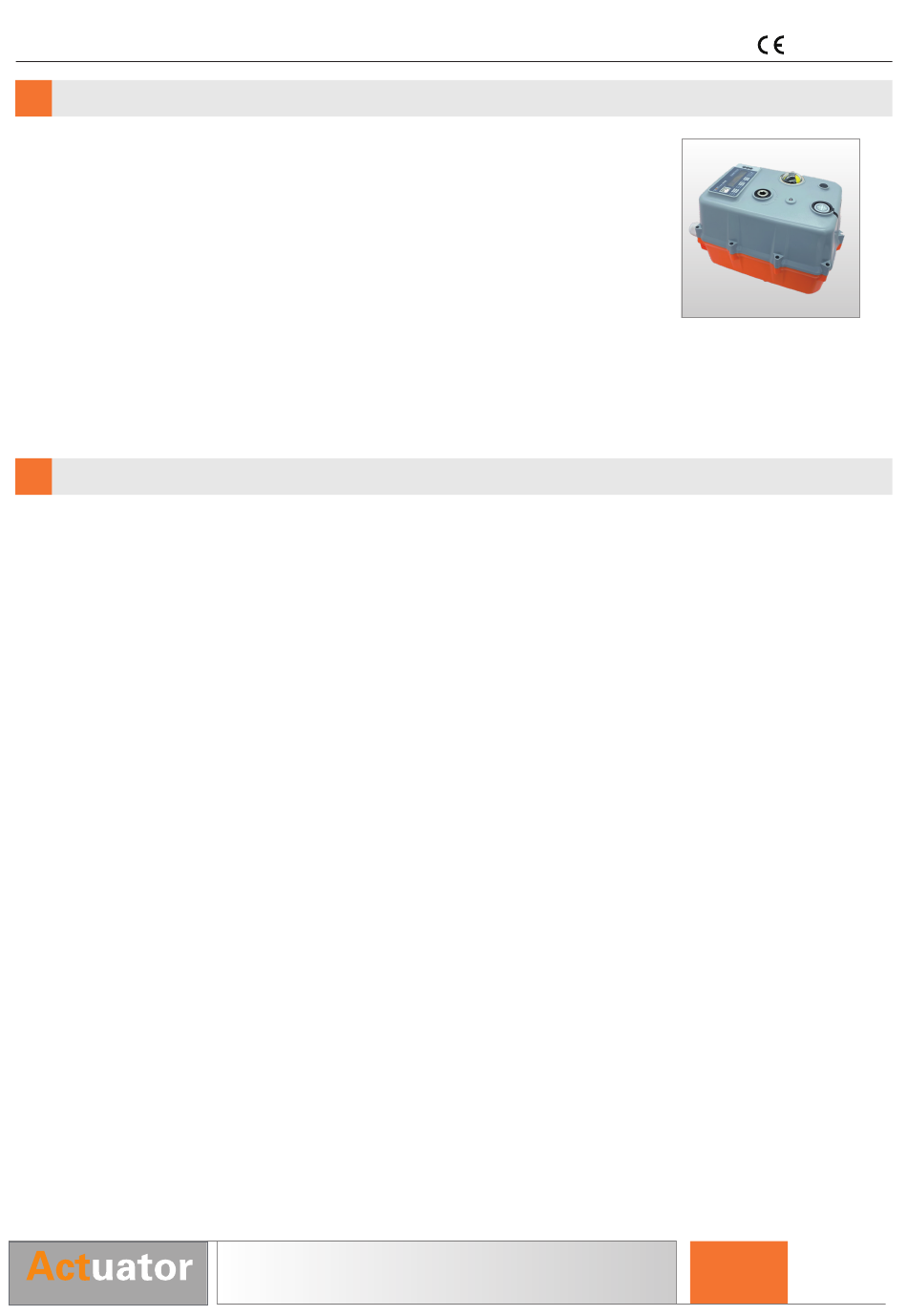

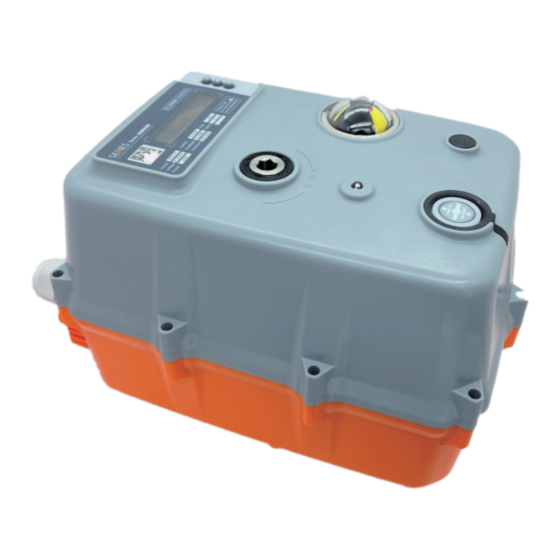

Product overview

◎ Rated voltage:
◎ Rated torque:
◎ Running time:
◎ Install valves: 2-way,3-way ball valve and butterfly valve
◎ Wiring and feedback model：
synchronous feedback signal with actual arrival )
◎ Alarm output: A(Relay contact feedback)
◎ Direction of rotation and angle of rotation: double acting 90°
2 positions 180°, 3 positions or 4 positions
◎ Adopted high-performance brushless motor,Overload protection of internal motor
◎ It can be used 20,000
◎ Two or more actuators can be used in paralle
Attention: Don't use in paralle with Normal on/off actuator under control of the same contactor.
※

Product features

△ 0.96" double OLED screen,no visual dead angle,highly bright,energy saving and eco-friendly,real time to
show valve opening angle and external control command.Enter sleeping state automatically after about
5 minutes,while it could prompt location state and its control command at sleeping time.
△ Original valve adjustment mode-free cover-opening and interactive:
step1:saving "anticlockwise full open position
step2:saving "clockwise full close position
Thoroughly eliminate the complex and inconvenience caused by mechanical positioning.
△ Adopt 16 High-performance microcontrollers,12 high-precision AD conversion,built-in unique algorithm,
thoroughly eliminate valve on/off inaccuracy caused by mechanical hysteresis,espacially suitable for 3-way
valve adjustment.
△ Adopt non contact positioning,control unit moduarize design and potting processing,greatly improve product
service life;Interface uses standard connectors,convenient for installment,adjustment and replacement.
△ Menu can report real time failure,including stuck or other reasons which lead actuator fail to realize valve on/off
integrally,and output failure warning signal.
△ Menu can realize valve control command exchange.
△ Menu can switch freely between remote control and local setting,and adopt button to realize valve on/off locally.
△ Menu can set valve close position deviation to on or off direction,thoroughly eliminate the complex and
inconvenience bring by "Normal On/Off mechanical positioning" to local valve adjustment.
△ Menu can real-time adjust valve running speed of the actuator.
△ Menu can restore factory default setting.
*1.Test condition:Rated load,test at under 25℃ working temperature and 50% humidity,lead the result from 2 times switching cycle,which will be influenced by different load
and working environment.
®
特克
.com
Made in china Global service
AC230V【AC95-265V】、AC/DC24V
400N.m
[450N.m@Max]
about 25s
、 BD3J 、B43J、 B33J 、 B44J(J:Relay feedback,
B3J
times.*1
" by using the button to control valve;
" by using the button to control valve;it makes valve adjustment easier.
Success comes from our persistent pursue of perfect details.
Excellence originates from our persistence of win-win philosophy.
ISO9001
PART 2
1
User Manual
