600W Portable Power Station

Emer

gency Power Source

User Manual

Model: AK-PS-04

Table of Contents

Need help?

Do you have a question about the AK-PS-04 and is the answer not in the manual?

Questions and answers

Summary of Contents for Akyga AK-PS-04

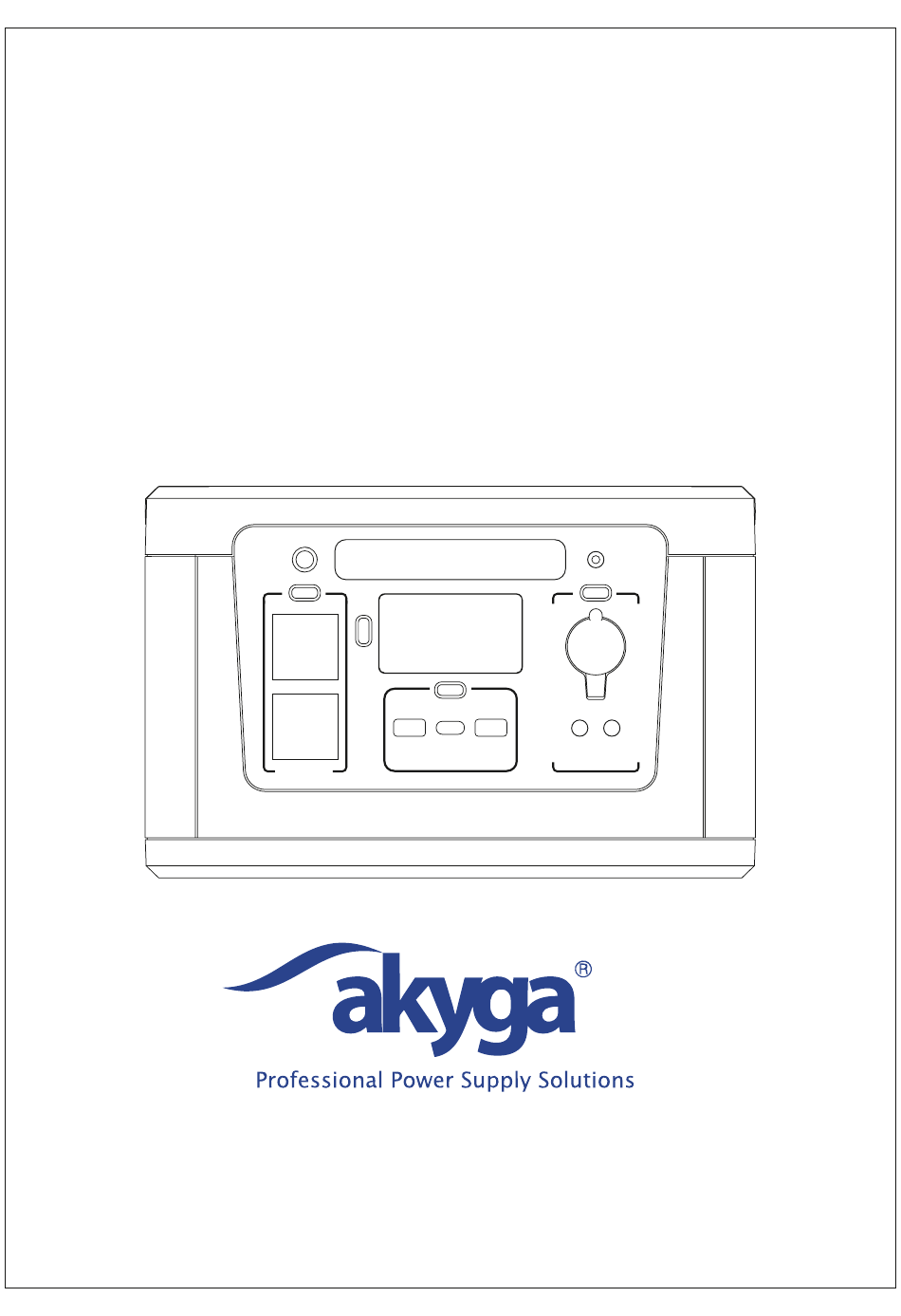

Page 1 600W Portable Power Station Emer gency Power Source User Manual Model: AK-PS-04...
Page 2: Package Contents
Preface Thank you for purchasing this 600W portable power station. This portable power station has a powerful battery capacity of 560Wh, supporting AC wall outlets, solar panels and vehicle charging ways, and is designed to keep your electronic devices powered while on the go. It comes with AC outlets, 12V DC output ports, 12V car port, Type-C port and fast charging USB ports 3.0 for your convenience.
Page 3: Technical Specification
Technical Specification Battery Capacity Lithium-ion 461Wh(20.8Ah/22.2V) AC Input Charging External 120W adapter Car Input Charging DC12V~24V/120W MAX Solar Input Charging DC12V~24V/120W MAX USB-C Charging PD 100W MAX 2* AC Output: 230V, 50Hz, 600W, Peak 1200W *Note: when the battery capacity ≤10%, AC max output Output Ports power is 150W(to protection of battery cycle life) USB Output 1: DC 5V3A or DC9V2A or DC12V1.5A...

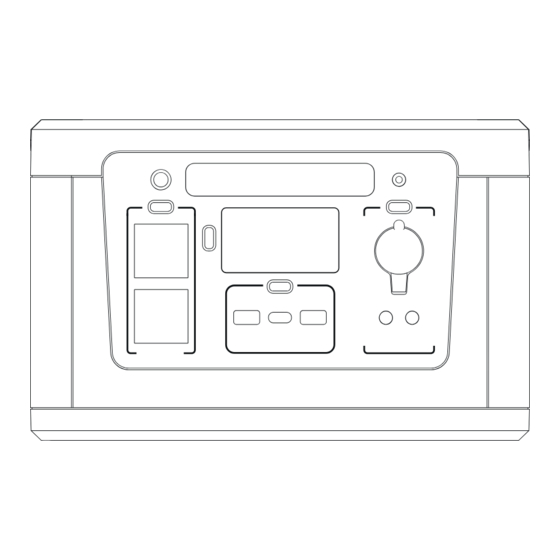

Page 4: Product Diagram
Using Your 600W Power Station Press the power button or any other port button to turn on the unit. When not using certain ports, it is best to turn them off to conserve power. Read the LCD screen to know which port is turned on. Plug in your gear.
Page 5: Lcd Display
LCD Display INPUT OUTPUT Watts Remaining Battery Temperature warning Percentage Cooling Fans AC Output Indicator Remaining Usage Time or USB Output Indicator Remaining Charging Time(Minute) Remaining Usage Time or Type-C Output Remaining Charging Time(Hour) Indicator INPUT DC Output Indicator Input Power Watts Output Power OUTPUT...
Page 6: Auto-Sleep Mode
Auto-Sleep Mode: To avoid forgetting to turn off the output during use, which leads to unused battery consumption, this product will turn to Auto-Sleep mode when no device is connected or the connected device is less than or equal to a certain value, the unit will automatically shut down after 1 hour.
Page 7 Ways to Recharge 1.AC Wall Charging 5-6 Hours fully charged AC Adapter 2.AC Wall Charging + USB-C(PD100W) Charging 2.5-3.5 Hours fully charged AC Adapter *USB-C(PD100W) charging Instructions: 1).Please turn on ”USB”Button to when using USB-C charging. 2).When unit in deep discharge 0%,you need to charging power station by AC adapter to activate power station firstly and insert USB-C charger to start charging.
Page 8: Safety Precautions When Charging
3.DC Vehicle Charging 12V Car Charging 6-7 Hours fully charged 24V Car Charging 5-6 Hours fully charged 4.Solar Panel Charging We recommend a 100W-120W solar panel with the voltage of DC 13V-24V. Never use higher than DC 24V to recharge this power station. 1*120W Solar Panel 5-6 hours fully charged (in full sun)
Page 9: Outdoor Activities
Usage Emergency: Used as an emergency power supply, the unit is especially suitable for locations that are prone to severe weather patterns and natural disaster related power failures including typhoons, floods, hurricanes, earthquakes, forest fires, snowstorms and low-temperature disaster prone areas. Outdoor Activities: Road trips, camping, outdoor celebrations, fishing, climbing, outdoor photography enthusiasts, RC helicopter drone charging, farming and bird...
Page 10: Faqs And Solutions
FAQS and Solutions 1. How do I know whether my appliance can work well with the power station? Please check the rated label of your device first. If the device's operating power is within 600W, you can use the device normally. 2.
Page 11: Common Troubleshooting
7. Why does the power station has the Auto-Sleep mode? To avoid forgetting to turn off the output during use, which leads to unused battery consumption, this product will turn to Auto-Sleep mode when no device is connected or the connected device is less than or equal to a certain value, the unit will automatically shut off after 1 hours.
Page 12 Warranty & Customer Service Support Thanks for purchasing our 600W portable emergency power station.If you have any questions about it, please feel free to contact us.Your valuable opinions and suggestions are highly appreciated.Welcome to leave your real and objective reviews to help other buyers for reference. The AK-PS-01 is covered a warranty of 24 months from the date of its original purchasing.
