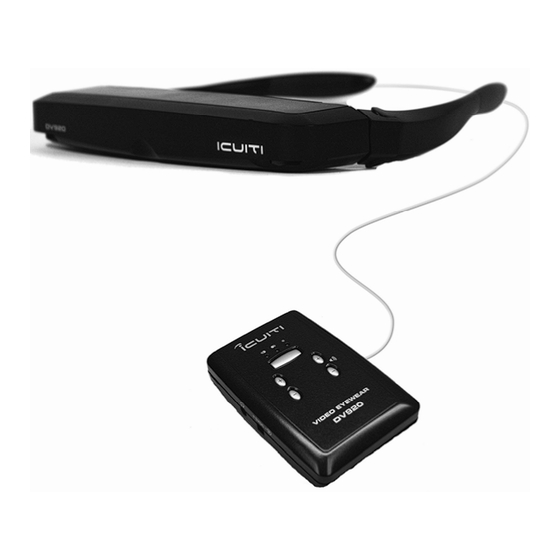

Icuiti iWear DV920 User Manual

Video eyewear
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DV920 Video Eyewear
User's Manual

Advertisement

Table of Contents
loading

Related Manuals for Icuiti iWear DV920

Summary of Contents for Icuiti iWear DV920

  • Page 1 DV920 Video Eyewear User’s Manual...

  • Page 3: Important Safety Instructions

    Important Safety Instructions Follow these safety instructions when using or handling your Icuiti Video Eyewear to reduce the risk of fire, electric shock, and injury to persons and property. READ ALL OF THE INSTRUCTIONS AND SAFETY INFORMATION PROVIDED BEFORE USING THIS PRODUCT. Use the product only for its intended use, as described in this manual.
  • Page 4 12. Do not use while wet or while standing in water. 13. Do not use this product near water (for example, near a shower, bathtub, sink or swimming pool). 14. Never insert objects of any kind, other than those specifically approved for that use by Icuiti, into any connectors, ports, slits or other openings in the product.

  • Page 5: Package Contents

    Introduction Congratulations on purchasing your Icuiti Video Eyewear. Your Icuiti Video Eyewear system consists of a wearable binocular Viewer with removable stereo speakers, Controller, power supply and cables. It connects to a broad assortment of audio/video sources delivering rich traditional video and stunning 3D stereoscopic video through what is essentially your own personal and portable movie theater.

  • Page 6: Quick Start

    Quick Start You can setup your Icuiti Video Eyewear in six fast and easy steps: To learn more about the features and setup of your Icuiti Video Eyewear, see Getting to Know your Video Eyewear. Connect the Controller to a compatible audio/video source. Connect the included RCA A/V cable to the small “A/V”...
  • Page 7 Adjust the audio level. Adjust the audio level of your Icuiti Video Eyewear with the Volume Control Buttons before you place it on your head. Excessive volume can cause discomfort or even damage your hearing. Put on your Video Eyewear. Place the Icuiti Video Eyewear on your head just like a pair of glasses.
  • Page 8 Getting to Know Your Video Eyewear Read this section to learn more about the customized setup and extra features of your Icuiti Video Eyewear. Compatible Input Devices Your Icuiti Video Eyewear can be used with a wide variety of audio/video source devices—virtually anything that outputs through a standard RCA audio/video connector (cable included) or with a cable specifically for your video output device.
  • Page 9 Audio / Video Source Connector The Icuiti Video Eyewear includes a composite audio/video cable and three RCA Barrel Connectors to enable easy adaptation to a broad range of audio/video sources. Yellow – Video Red – Right Audio White – Left Audio Controller A/V Port RCA Barrel Connector The Controller is equipped with two audio/video connectors for maximum...
  • Page 10 Replaceable Nose Pads Your Icuiti Video Eyewear comes with three sizes of nose pads; small, medium and large. If the attached nose pad does not position your Eyewear comfortably or allows the Viewer to slide down the bridge of your nose, you can try each of the nose pads to determine which is the best fit for you.
  • Page 11 Adjusting and Removing the Speakers Your Icuiti Video Eyewear is equipped with removable and adjustable stereo speakers. The rubberized speaker stems can be bent to comfortably position the speakers. You can remove the speakers to accommodate the use of your own headphones through the stereo headphone jack on the left side of the Controller.
  • Page 12 The Controller As its name implies, the Controller is used to control your Icuiti Video Eyewear experience. It connects the Viewer to an audio/video source device and enables the adjustment of screen brightness, selection of 2D/3D display options, audio volume, and more. Aux.
  • Page 13 There is no set standard for left or right eye orientation when producing 3D images—a recorded image can be oriented for either eye. If you are viewing a quality 3D image and using the correct 3D Display Option, you will see a sharply defined image with clear depth separation.
  • Page 14 Power Adapter Connector Your Icuiti Video Eyewear comes with an AC Power Adapter that can be connected to a 100 – 230 volt AC electrical outlet. When the Power Adaptor is used, your Icuiti Video Eyewear will draw its power from the adapter rather than from your batteries.
  • Page 15 We recommend that you take frequent breaks every 30 minutes when practical while using your Icuiti Video Eyewear to prevent eye strain. This is also recommended when using a traditional computer monitor. The immersive nature of a Video Eyewear experience can produce intense concentration and reduced blinking leading to dryness of the eyes and other symptoms of eye strain.
  • Page 16 For the correct orientation, set your Icuiti Display Option to correspond with the Icuiti 3D label on your 3D media. Please note that all field sequential images are compatible with your Icuiti Video Eyewear, including those not identified with an Icuiti Video Eyewear label.
  • Page 17 IMPORTANT CARE & SAFETY INFORMATION Be Aware of the World Around You: Icuiti video products will immerse you in a virtual world of realistic sights and sounds. At times this might cause you to forget about the real world around you and the threats to your well being that it may present. Plan ahead and use common sense: DO NOT use your Icuiti product near stairs, balconies, or other things that can be tripped over, run into, knocked down or fallen over.

  • Page 18: Grant Of License

    ICUITI END USER LICENSE AGREEMENT This Icuiti End User License Agreement ("EULA") is a legal agreement between you (either an individual or a single entity) and Icuiti Corporation ("ICUITI") for the ICUITI product identified in part 1 of this User’s Manual, which includes computer software, associated media and printed materials and hardware (if any) and may include online or electronic documentation ("SOFTWARE").

  • Page 19: Limited Warranty And Liability

    6 – LIMITED WARRANTY AND LIABILITY ICUITI warrants that (a) the SOFTWARE will perform substantially in accordance with its accompanying written materials for a period of ninety (90) days from the date of receipt, and (b) for any Support Services provided by ICUITI on its SOFTWARE ICUITI support engineers will make commercially reasonable efforts to solve any repeatable errors in the SOFTWARE.
  • Page 20 Worldwide Limited Warranty & Technical Support General Terms EXCEPT AS EXPRESSLY SET FORTH IN THIS LIMITED WARRANTY, ICUITI MAKES NO OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. ICUITI EXPRESSLY DISCLAIMS ALL WARRANTIES AND CONDITIONS NOT STATED IN THIS LIMITED WARRANTY.
  • Page 21 BY ICUITI WHEN THE PRODUCT IS MANUFACTURED. ICUITI does not warrant that the operation of this product will be uninterrupted or error-free. ICUITI is not responsible for damage that occurs as a result of your failure to follow the instructions that came with the ICUITI branded product. This Limited Warranty does not apply to expendable parts.
  • Page 22 Pick-up Warranty Service If your product needs a hardware repair that is covered under warranty, please repackage the unit in its original packaging or equivalent packaging material to protect the product for return shipment. ICUITI will then give you return shipping instructions from your location. The product will be repaired and delivered to the location of your choice within the same country.

  • Page 23: Specifications

    Specifications Power: approx 1.2 Watts from two AA batteries approx 1.3W from USB or wall-plug adapter Alkaline batteries: 2 AA cells provide 1.5 to 2.5 hrs of continuous operation NiMH batteries (optional): 2 AA cells provide over 3 hrs of continuous operation USB cable (optional): draws 270mA from the optional USB cable Wall-power adapter:...
  • Page 24 Icuiti Corporation 2166 Brighton-Henrietta Townline Rd. Rochester, New York 14623 Web: http://www.icuiti.com Phone: (585) 240-8000 Fax: (585) 240-8003 Sales Email: info@icuiti.com Phone: (800) 436-7838 Support Email: support@icuiti.com Phone: (585) 427-8604 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
