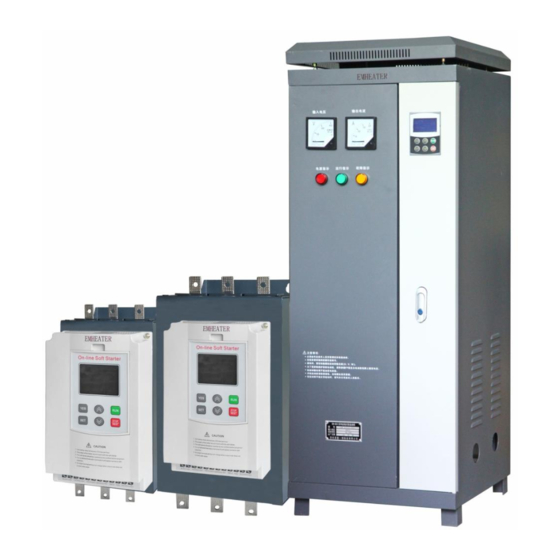

- Page 2 Preface Thanks for your using EMHEATER EM-GW series motor soft starter, this product is used for three-phase squirrel cage induction motor soft starting and soft stopping control. Before using, please carefully read and understand the contents of this manual. In the process of using the soft starter, please note the following Safety Clauses: Please check this user manual carefully before using the product.
-
Page 3: Table Of Contents
Table of Contents 1. Products Information ............................... 1 1.1 Motor Soft Starter ............................. 1 1.2 Main Function ..............................1 1.3 Technical Specification ............................. 2 2. Products Explanation and Installation ........................3 2.1 Model Explanation ............................3 2.2 Installation Environment ........................... 3 2.3 Installation requirement ............................ -
Page 4: Products Information
GW/GS32 Series User Manual 1. Products Information 1. Products Information 1.1 Motor Soft Starter Intelligent motor soft starter, the use of intelligent digital control; With the single chip processor as the intelligence center, thyristor module for actuators for full automatic control motor. It applies various squirrel-cage asynchronous motor control of load, the motor can smooth starting under any working conditions, protect the drag system, reduce the starting current impact on power grid, ensure reliable motor starting. -
Page 5: Technical Specification
1. Products Information GW/GS32 Series User Manual ⚫ Unique way to detect debug equipment and process. Quick and thoughtful after-sales service ⚫ Reliable performances lay the foundation of qualified service and quality. ⚫ Provide perfect system solution. ⚫ The timely and thoughtful Consulting Services. ⚫... -
Page 6: Products Explanation And Installation
GW/GS32 Series User Manual 2. Products Explanation and Installation 2. Products Explanation and Installation 2.1 Model Explanation EMHEATER GW Series online soft starter Rated voltage： 2: Three phase 220V 3: Three phase 380V 4: Three phase480V 6: Three phase 660V Matched motor: 075:75kW;... -
Page 7: Products Appearance And Installation Dimension
2. Products Explanation and Installation GW/GS32 Series User Manual Diagram 2.2 Ventilating duct installation dimension diagram of soft starter 2.4 Products Appearance and Installation Dimension Diagram 2.3 11KW~45KW installation dimension and mounting holes External Installation Dimensions Power Current Dimensions (mm) Model (mm) (KW) -
Page 8: Peripheral Devices Connection Diagram
GW/GS32 Series User Manual 2. Products Explanation and Installation EM-GW3-090 EM-GW3-115 EM-GW3-132 EM-GW3-160 EM-GW3-200 EM-GW3-250 EM-GW3-280 EM-GW3-315 EM-GW3-355 EM-GW3-400 EM-GW3-450 EM-GW3-500 1000 EM-GW3-600 1200 Note：The rated power of motor in the above form is the maximum rated value. Generally, the values of matched motor power capacity should not be more than this value. -
Page 9: Control Circuit Terminal Description
2. Products Explanation and Installation GW/GS32 Series User Manual 2.6 Control Circuit Terminal Description Control terminal connection: That is the wire comes from 12 external terminals which including input and output control signal and analogue output or RS485 communication signal. Diagram 2.6 Control circuit terminal Terminal Name Description... -
Page 10: Operation And Display
GW/GS32 Series User Manual 3. Operation and Display 3. Operation and Display The motor soft starter has five kinds of working state; Ready, Run, Error, Starting and Stopping, the showing parameter is easy to understand and modify. 3.1 Key Panel and Operation Name Description LCD display area... - Page 11 3. Operation and Display GW/GS32 Series User Manual Prompt: ● Only when the "READY STATE" is displayed, the motor can be started by pressing the running key. ● During the start and stop process, you can not enter the Set Menu or Help Menu. ●...
-
Page 12: Description Of Function Codes
GW/GS32 Series User Manual 3. Operation and Display Message displayed Explanation AC: xxxxV XXXX is 3 phase power voltage, VOLTAGE 030A-380V That is the specification is AC 30A-380V/50Hz. SPEC H1: Error 01 The fault message Err01 that happened at the last time. 7-10 OPEN .. - Page 13 3. Operation and Display GW/GS32 Series User Manual Setting range Default 0: Current limit 1: Voltage ramp 2: Torque control + Current limit Start Mode 3: Torque control + Voltage ramp 4: Current ramp 5: Closed loop Setting range Default 0.
- Page 14 GW/GS32 Series User Manual 3. Operation and Display 2: Russian Prompt: ⚫ F6 the " Max Current ", is basic on the value of FP (Motor Rated Current). ⚫ If you have no any operation for 2 minutes after you come into the "set" state, soft starter will exit from "set" state.
-
Page 15: Fault Diagnosis And Solution
3. Operation and Display GW/GS32 Series User Manual Keypad External terminal control RS485 Communication ⚫ In the above form,"1" is allowing,"0" is forbidding. For example. ⚫ If the "External terminal Control" is allowing, you must contact a normally closed switch button between the terminal ⑦⑧... -
Page 16: Protection Functions And Directions
120%, the protection delayed time < 3S. ● Load short circuit protection delay time: The protection delayed time < 0.1S. 4.2 Protection Classes and Explanation According different usage conditions, EM-GW series Soft Starter has five protection classes, as following: 0. Primary 1. Light load 2. Standard 3. - Page 17 4. Protection Functions and Directions GW/GS32 Series User Manual 0:Primary 1:Light Load 2:Standard 3:Heavy load 4:Top Grade Note The grade of Standard of overload 2 grades 10 grades 20 grades 10 grades IEC60947-4-2 protection The grade of The 5 times of over-current F6 current protection...
-
Page 18: Test Run And Application
C, the starter should be power on to preheat for 30 minutes, and then to start. 5.2 Starting Mode and Application The EM-GW series soft starter has six starting modes for the user to select according the motor and load equipment. 5.2.1 Current limit (F9=0) Diagram 5.1 shows the waveform of motor current. - Page 19 5. Test Run and Application GW/GS32 Series User Manual Diagram 5.1 5.2.2 Voltage Ramp (F9=1) Diagram 5.2 shows the output voltage waveform. In the diagram, the U1 is the initial voltage value of starting. When starting, if the motor current is not more 400% than the rated current, the output voltage of soft starter will rapidly rise to U1, and the output voltage rises gradually to the rated voltage (Ue), and the motor gradually increase and until running at rated voltage and speed, and then the bypass contactor closed, the starting process finished.
-
Page 20: Stopping Mode And Application
GW/GS32 Series User Manual 5. Test Run and Application starting, the motor needs a higher voltage to conquer the static friction force of heavy load, and then starts with current-limit or voltage ramp mode to start the heavy motor. Note: This mode will cause big-current shock to the motor, so if the voltage ramp or current limit starting mode can startup the motor, it is better not to use this torque control mode to start. -
Page 21: Special Application
5. Test Run and Application GW/GS32 Series User Manual output ending voltage is the same as the starting initial voltage. Soft-stopping mode can reduce or remove the surge of the loading equipment such as the water pump. You can set the soft-stopping current limit value through the FF code to reduce the high current shock to the motor when stopping. -
Page 22: Online Soft Starter Cabinet
GW/GS32 Series User Manual 6. Online Soft Starter Cabinet 6. Online Soft Starter Cabinet EM-GS32 series online soft starter cabinet is suitable for squirrel cage asynchronous motor control with various loads to ensure reliable start of motor. It has a complete system protection function, extend the service life of the system, reduces the cost of the system, improves the reliability of the system and compatible with various functions of all devices. - Page 23 6. Online Soft Starter Cabinet GW/GS32 Series User Manual Rate Power Rated Current External Dimension(mm) Model (KW) EM-GS32-030 1000 EM-GS32-045 1000 EM-GS32-055 1000 EM-GS32-075 1000 EM-GS32-090 1000 EM-GS32-115 1000 EM-GS32-132 1200 EM-GS32-160 1200 EM-GS32-185 1200 EM-GS32-200 1200 EM-GS32-220 1450 EM-GS32-250 1450 EM-GS32-280 1450...
-
Page 24: Operation And Notice
GW/GS32 Series User Manual 6. Online Soft Starter Cabinet 6.3 Operation and Notice Operation: ● Please read the manual, operation and notice carefully before using ● When power is on, you need open the front door of the cabinet, close the circuit breaker, and the power indicator of the online soft starter cabinet (red light) is on, indicates that the cabinet is powered on. -
Page 25: Modbus Communication Protocol
GW/GS32 Series User Manual 7. Modbus Communication Protocol 7.1 About Protocol EM-GW series soft start provides RS485 communication interface and supports Modbus-RTU slave communication protocol, users can achieve centralized control through the computer or PLC. Electrical interface: RS485 Half-Duplex Mode Communication parameter: Baud rate: 9600, 8 bits, No parity bit, 1 stop bit. -
Page 26: Abnormal Feedback
GW/GS32 Series User Manual 7. Modbus Communication Protocol Stop status Soft stop Stop state Fault state Normal state 4-15 Reserve For example: Reading state code of register 02 03 00 02 00 01. If soft starter is during starting process, it will feedback code 02 03 00 02 00 01. If soft starter is fault, it will feedback code: 02 03 00 02 00 08. - Page 27 7. Modbus Communication Protocol GW/GS32 Series User Manual Register Register Initial address Initial address Slave address Function code CRC check number high number low (High byte) (Low byte) level level 0x01 0x08 0x00 0x80 0x00 0x0D For example: this protocol does not use code 0x08, so slave feedback: Abnormal Slave address Function code CRC check...
