Summary of Contents for HARDELL LLX-360-01

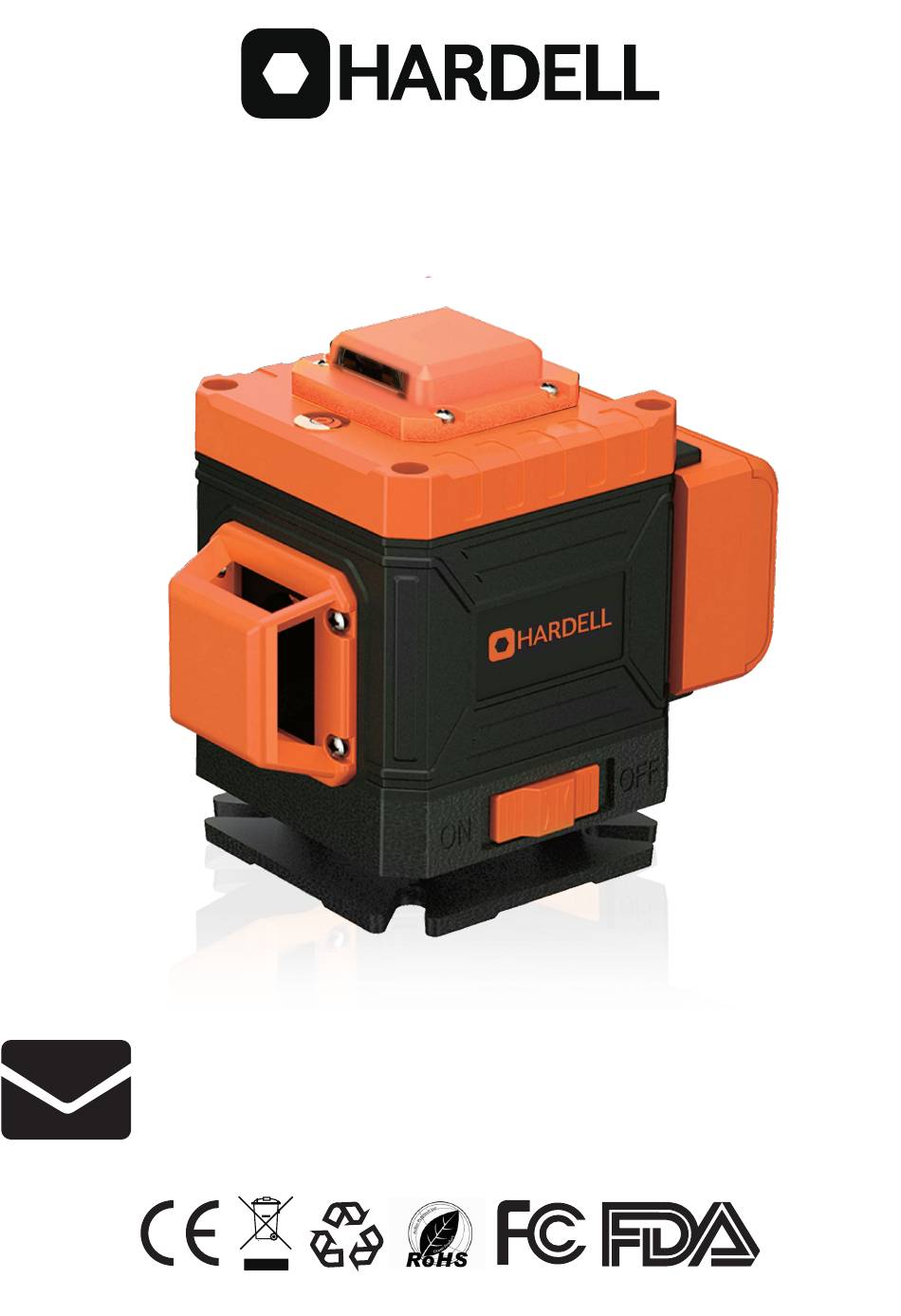

- Page 1 (3D 12 Line/4D 16 Line) Thank you for purchasing this product. To ensure proper use and trouble-free operation, please read this guide carefully before operating. If there is any issue, please contact us via Amazon or email:hardell.service@gmail.com, we will help you within 12 hours.
-
Page 2: Product Descriptions
⑤ Vertical Line Window ⑥ Power Switch ④ ⑦ Horizontal Line Window ⑤ Control Panel ⑥ Switch Indication ⑦ SPECIFICATION Mode： LLX-360-01 Scope of work： 65ft Automatic leveling range： ±3° Laser wavelength： 515nm(Green Light) Laser grade： Class Ⅱ(IEC 60825-1) Accuracy： 1mm at 7m/1/25"at16.5ft Power supply：... -
Page 3: How To Use
HOW TO USE 3° 3° Step 1 Step 2 Step 3 Short press the V key to control the Place the Laser level on the ground Turn on the switch, and when you number of vertical lines (up to 8), or and load the battery. -
Page 4: Use Of Accessories
USE OF ACCESSORIES We provide 3 kinds of brackets, you can adjust the position of the machine by turn- ing different knobs after connecting the bracket and the machine.In addition, the rotating base can also be linked with a tripod through the bottom thread. BRACKET INSTALLATION knob B knob C... -
Page 5: Package Includes
PACKAGE INCLUDES 1 x Laser Level 2 x Battery pack 1 x Upper wall bracket and iron plate 1 x Remote control 1 x Lifting platform 1 x Rotating base 1 x Charger 1 x Portable bag ATTENTION: 1.Please read this manual carefully before using the instrument. 2.The instrument should not be exposed to the sun. -
Page 6: Safety Precautions
7.If the instrument is not used for a long time,take out the battery. 8.When the instrument is not used for a long time after 6 month,it should be sent back to the maintenance point for re calibration to ensure the accuracy of the instrument. - Page 7 Tips 1.After the receiving switch is turned on,the bubble backlight will flash,which is a normal signal indicating that the receiving state. 2.The laser line flickers to prove that the machine is not in the safe and level range.Please adjust the level through the outrigger. 3.If the laser line is blurred,please wipe the shell glass with clean cotton cloth.
-
Page 8: Warranty
Never try to repair the product by yourself. For any inquiries concern- ing our products, please contact our after-sales team via hardell.service@g- , we are free to help you solve your problem at anytime. mail.com...
