Summary of Contents for Matador MAVFF-1618

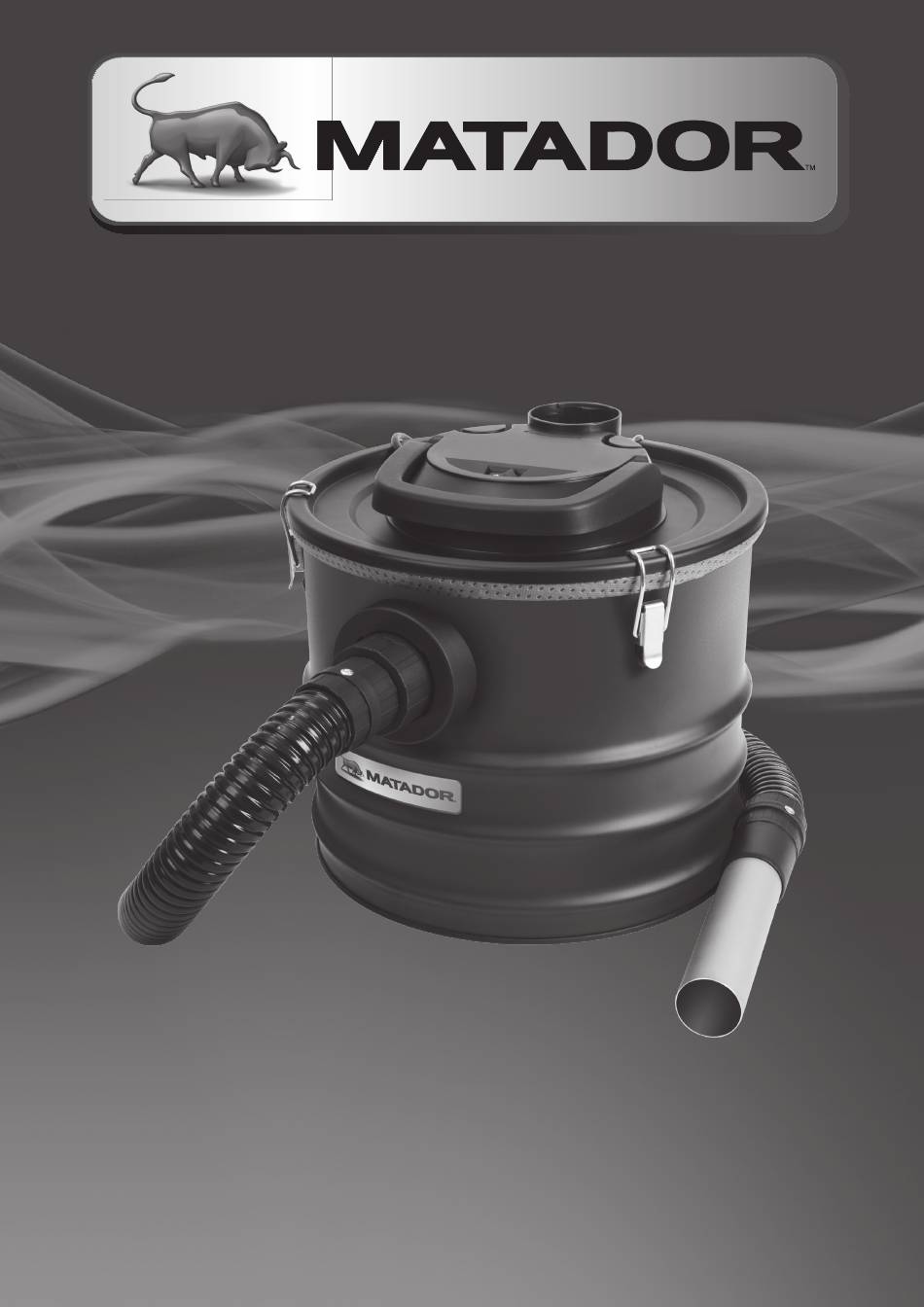

- Page 1 ASH VACUUM ASH VACUUM CLEANER CLEANER 1200W POWER I 18 LITRE STEEL TANK Retain manual for future reference. 0621...
-
Page 2: Safety Instructions
ELECTRICAL SAFETY WARNING! If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid a When using mains-powered tools, basic safety hazard. precautions, including the following, should always be followed to reduce risk of fire, electric shock, personal Note: Double insulation does not take the place of normal injury and material damage. - Page 3 GENERAL POWER TOOL SAFETY WARNINGS (cont.) 4. Power tool use and care d. Store idle power tools out of the reach of children a. Do not force the power tool. Use the correct power and do not allow persons unfamiliar with the power tool for your application.
-
Page 4: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS PRODUCT DESCRIPTION ASSEMBLY OPERATION TROUBLESHOOTING MAINTENANCE DESCRIPTION OF SYMBOLS TECHNICAL SPECIFICATIONS WARRANTY... -
Page 5: Product Description
PRODUCT DESCRIPTION 1. Carry Handle 2. On/Off Switch 3. Blower Port 4. Appliance Head 5. Suction Tube 6. Tank 7. Suction Hose 8. Vacuum Inlet 9. Quick-Release Fastener x 3 10. Pre-Filter 11. Pleated Filter... -
Page 6: Assembly
ASSEMBLY Fitting/Removing the Filters WARNING! During assembly ensure the ash vacuum is switched OFF and disconnected from the power supply. WARNING! Never use the ash vacuum without the filters! Always ensure that the filters are perfectly secure. Fitting/Removing the Appliance Head 1. -
Page 7: Operation
OPERATION Empty the Tank WARNING! The ash vacuum is suitable for vacuuming cold ash or cold and dry material residues from fireplaces, charcoal ovens, ash-trays or WARNING! Ensure the tool is turned off and barbecues. disconnected from the power supply before performing any of the following operations. -
Page 8: Troubleshooting
TROUBLESHOOTING Symptom Possible Cause Suggested Solution Ash vacuum does not start. No power supply. Check power cord, household breakers and fuses. Pleated filter and mesh filter not fitted to Fit the pleated filter and mesh filter to the the appliance head. Safety devices prevent appliance head. -
Page 9: Description Of Symbols
DESCRIPTION OF SYMBOLS Volts Hertz Alternating Current Watts Revolutions or reciprocations /min No load speed per minute mbar Do not expose to rain Pressure rating (millibar) Regulatory Compliance Mark Double insulated (RCM) Disconnect from power supply Warning before performing any maintenance procedures Read Instruction Manual Warning;... -
Page 10: Technical Specifications
TECHNICAL SPECIFICATIONS Model MAVFF-1618 Input voltage 220-240V~50/60Hz Input power 1200W Suction power max. 160mbar Tank volume 18 litres Suction hose Ø40 x 1200mm Nett weight 3.5kg... -
Page 11: Warranty
MATADOR WARRANTY MATADOR WARRANTY Any claim under this warranty must be made within 3 years of the date of purchase of the product. To make a claim under the warranty, take the product (with proof of purchase) to any Bunnings store (see www.bunnings.com.au for store locations) or contact Ozito Industries Pty Ltd. - Page 12 Customer Service 1800 069 486 (AUS) 0508 069 486 (NZ) Keep your purchase receipt, this will be required to make any claims under the 3 year warranty. Matador® is a registered trademark of Bunnings Pty Ltd.
