aebi schmidt meyer 66190 Quick Start Manual

Meyer 66190 Spreader Controller
The wireless gasoline engine controller is intended to control the start/stop, throttle increase/decrease
and electric clutch on/off functions

Operation

The control system consists of a transmitter and a
receiver. The receiver is mounted to the spreader
near the gasoline engine. The transmitter is
intended to remain in the vehicle cab or with the
operator.
1. Press and hold the POWER button for at least
three seconds to turn on the transmitter. The green
LED light will begin to blink.
2. Set engine throttle to choke by pressing and
holding the throttle INCREASE button for at least
three seonds.
3. Press and hold the engine START button until the
engine starts. NOTE: Continuing to hold the engine
button after the engine starts may result in engine
damage.
4. Once the engine starts, press the throttle
DECREASE button to remove throttle from choke
position.
5. Press the throttle INCREASE or throttle
DECREASE button until the desired engine RPM is
achieved.
6. Engage the electric clutch by pressing the
CONVEYOR button once. Pressing the
CONVEYOR button a second time will disengage
the clutch. NOTE: The green LED light will turn
solid whenever the clutch is engaged.
7. Engine can be stopped by pressing the engine
STOP or POWER buttons. NOTE: Pressing the
engine STOP or POWER buttons will automatically
disengage the electric clutch.
Battery
Frequency
Transmitter Battery
Red LED Light
Blinks once per second
Green LED Light
Binks once per second
Blinks twice per second
Solid
1
2
3
4
5
6
Charging Port
1
2
4

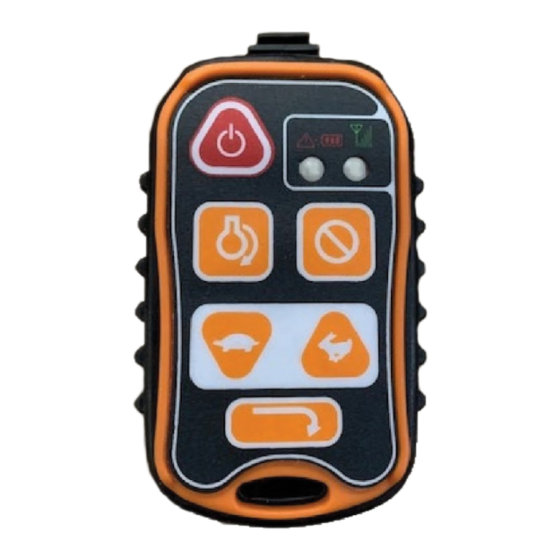

Transmitter

Specifications

12 Volt Battery
902-928-MHz FHSS 10Mw
Standard Micro USB wall or car port

Transmitter LED Light Codes

Low Battery
Transmitter on – not communicating with
the receiver
Transmitter on – Communicating with
the receiver
Clutch is engaged

Button Functions

Power On/Off
Engine Start
Engine Stop
Throttle Decrease
Throttle Increase
Conveyor On/Off
3
5
6
Receiver
