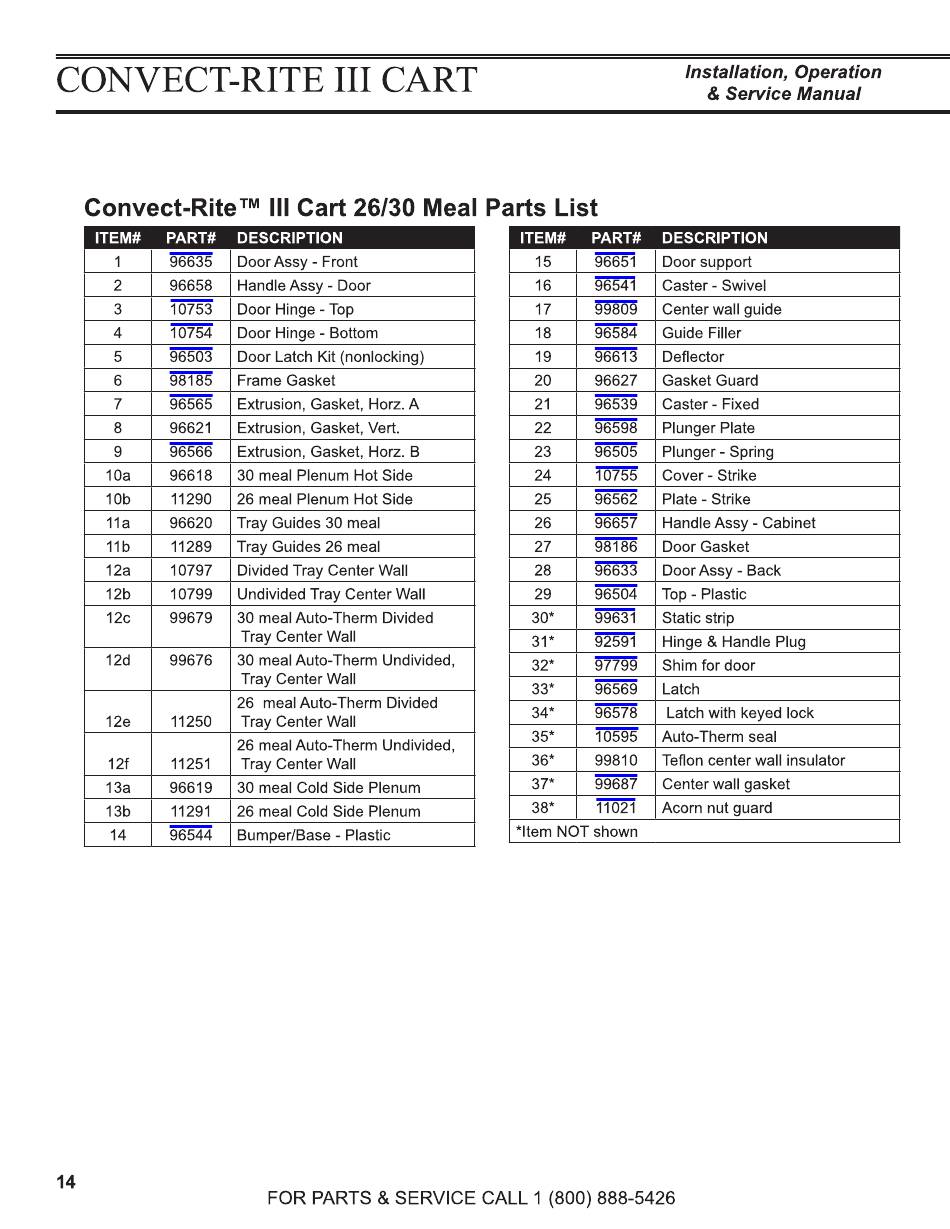

Ill Cart 26/30 Meal Parts List
ITEM# PART# DESCRIPTION ITEM# PART#
1 96635 Door Assy - Front 15 96651
2 96658 Handle Assy - Door 16 96541
3 10753 Door Hinge - Top 17 99809
4 10754 Door Hinge - Bottom 18 96584
5 96503 Door Latch Kit (nonlocking) 19 96613
6 98185 Frame Gasket 20 96627
7 96565 Extrusion, Gasket, Horz. A 21 96539
8 96621 Extrusion, Gasket, Vert. 22 96598
9 96566 Extrusion, Gasket, Horz. B 23 96505
10a 96618 30 meal Plenum Hot Side 24 10755
10b 11290 26 meal Plenum Hot Side 25 96562
11a 96620 Tray Guides 30 meal 26 96657
11 b 11289 Tray Guides 26 meal 27 98186
12a 10797 Divided Tray Center Wall 28 96633
12b 10799
Undivided Tray Center Wall
29 96504
12c 99679 30 meal Auto-Therm Divided 30* 99631
Tray Center Wall
31* 92591
12d 99676 30 meal Auto-Therm Undivided,
32* 97799
Tray Center Wall
33* 96569
26 meal Auto-Therm Divided
12e 11250 Tray Center Wall
26 meal Auto-Therm Undivided,
34* 96578
35* 10595
12f 11251 Tray Center Wall
36* 99810
13a 96619 30 meal Cold Side Plenum
37* 99687
13b 11291 26 meal Cold Side Plenum
38* 11021
14 96544 Bumper/Base - Plastic
*Item NOT shown
14
Installation, Operation
& Service Manual
DESCRIPTION
Door support
Caster - Swivel
Center wall guide
Guide Filler
Deflector
Gasket Guard
Caster - Fixed
Plunger Plate
Plunger - Spring
Cover- Strike
Plate - Strike
Handle Assy - Cabinet
Door Gasket
Door Assy - Back
Top - Plastic
Static strip
Hinge & Handle Plug
Shim for door
Latch
Latch with keyed lock
Auto-Therm seal
Teflon center wall insulator
Center wall gasket
Acorn nut guard
