Elvid STUDIOVISION SRM-5X3-4KH User Manual

Triple 5 in. rackmount monitors

Advertisement

Quick Links

STUDIOVISION
SRM-5X3-4KH
Triple 5 in. Rackmount Monitors
STUDIOVISION 4K
SRM-5X3-4KH
MENU
INPUT
MENU
INPUT
MENU
INPUT
EXIT
FN
EXIT
FN
EXIT
FN
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STUDIOVISION SRM-5X3-4KH and is the answer not in the manual?

Questions and answers

Summary of Contents for Elvid STUDIOVISION SRM-5X3-4KH

  • Page 1 STUDIOVISION SRM-5X3-4KH Triple 5 in. Rackmount Monitors STUDIOVISION 4K SRM-5X3-4KH MENU INPUT MENU INPUT MENU INPUT EXIT EXIT EXIT USER MANUAL...

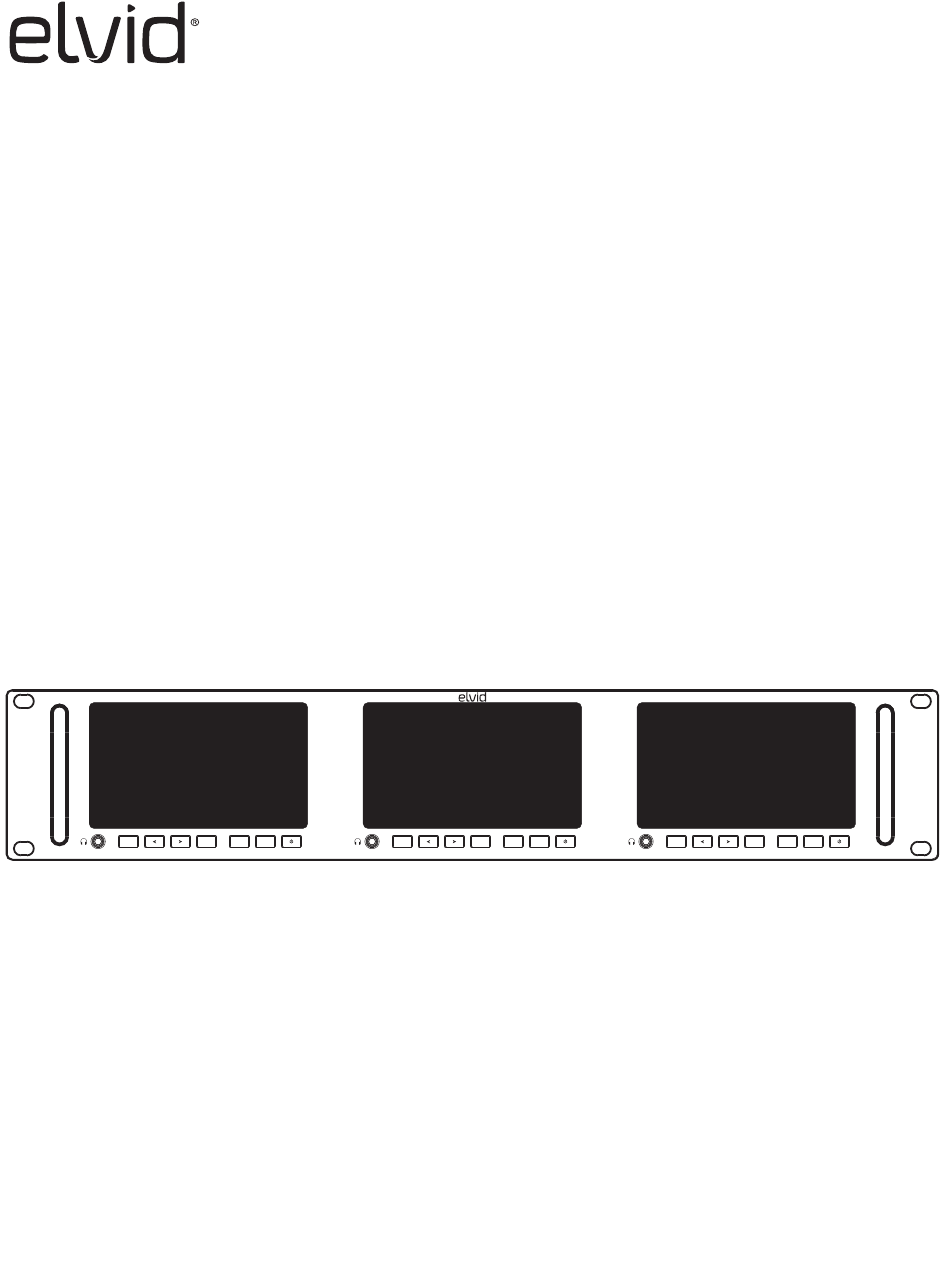

  • Page 2 THANK YOU FOR CHOOSING ELVID. The Elvid SRM-5X3-4KH rackmount monitoring system fits three 5-inch, full HD monitors into a standard 19-inch machine rack. The LCD panels’ native 1920 × 1080 resolution provides a sharp image and facilitates precise color rendering. The monitors feature HDMI and SDI inputs with loop outputs, and their native aspect ratio of 16:9 fits most popular video formats.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Overview ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������4 Setting Up the StudioVision Rackmount Monitor ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������6 Using the StudioVision Rackmount Monitor��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������7 Picture Menu �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������9 Marker Menu �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������10 Function Menu �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������10 Waveform Menu �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������11 Audio Menu ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������11 System Menu ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������12 Supported Resolutions and Frame Rates ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������13 Specifications ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������14 Troubleshooting ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������15...
  • Page 4: Overview

    OVERVIEW FRONT STUDIOVISION 4K MENU INPUT MENU EXIT USB port Tally port LAN port 12V DC power input BACK Power switch TALLY DC 12V HDMI OUT SDI OU LCD1 LCD2 12 13 LCD3 4,9,14 ALSO INCLUDED • Power adapter • Tally wiring harness...
  • Page 5 SRM-5X3-4KH INPUT MENU INPUT EXIT EXIT LCD screen Headphone output Menu button Navigation buttons Exit button Function button Input selector Power button HDMI OUT SDI OUT HDMI OUT SDI OUT HDMI 2.0 input 3G-SDI output HDMI 2.0 output 3G-SDI input...
  • Page 6: Setting Up The Studiovision Rackmount Monitor

    Connect a computer to the USB port on the rear panel to apply Important! The SRM-5X3-4KH does not support cross conversion. firmware updates from Elvid when available. Firmware updates are The HDMI OUT plug will not output an SDI signal.
  • Page 7: Using The Studiovision Rackmount Monitor

    TALLY TALLY The tally connector accepts signals from switchers and automation systems, and you can use the StudioVision monitor to indicate the signal’s status for on-air, preview, or broadcast applications. When connected, the tally system will place a border around the active signal�...
  • Page 8 QUICK ADJUSTMENTS FUNCTION BUTTON SETUP To change the functions assigned to the FN button, follow these steps: MENU INPUT EXIT 1. Press and hold the FN button until the function select menu appears on-screen. When the monitor is powered on, you can make quick adjustments to the volume and input settings at any time.
  • Page 9: Picture Menu

    PICTURE MENU BRIGHTNESS USER LUT Adjusts the monitor’s brightness value from 0 to 100. The default Available only when User is selected in the Camera LUT menu. setting is 50. When User is activated, import up to six user-defined LUTs via the USB port and store them in the User1–User6 options.
  • Page 10: Marker Menu

    MARKER MENU CENTER MARKER MARKER COLOR Turning on the center marker places a crosshair at the center of the Changes the color of the on-screen markers. Choose from color screen. The preset is set to off. options white (default), black, red, green, and blue. ASPECT MARKER ASPECT MAT Sets the on-screen aspect marker display.
  • Page 11: Waveform Menu

    WAVEFORM MENU FULL MODE FALSE COLOR Displays a waveform scope on the full screen. Select off (default) Y, Replaces the true colors of the image with a standard set of colors YCbCr, RGB, Vector, Histogram, or Audio. that represent exposure levels. Choose between Default, Spectrum, ARRI, and RED.
  • Page 12: System Menu

    SYSTEM MENU LANGUAGE COMPARISON EN Sets the on-screen language display to English (default) or Chinese. Displays a split screen comparison of the image altered by the color space or LUT settings and the unmodified image. Choose COLOR BAR Gamma/HDR, Color Space, Camera LUT, or off (default) Displays color bars on-screen.
  • Page 13: Supported Resolutions And Frame Rates

    SUPPORTED RESOLUTIONS AND FRAME RATES HDMI 2.0 3G-SDI 480i (59.94) 59.94i 480i (60) 576i (50) 480p (59.94) 59.94p 480p (60) 576p (50) 23.98p (1280×720) 720p (23.98) 720p (24) 720p (25) 29.97p 720p (29.97) 720p (30) 1080 720p (50) 1080 59.94i 720p (59.94) 1080 720p (60)
  • Page 14: Specifications

    SPECIFICATIONS DISPLAY POWER Input Power 7 to 24 V DC Panel Type IPS-Type LCD (×3) Battery Type None Display Size 5 × 3 in. (12.7 × 7.6 cm) Power Consumption ≤27 W Display Resolution 1920 × 1080 Aspect Ratio 16:9 MOUNTING Viewing Angle Horizontal: 160°...
  • Page 15: Troubleshooting

    TROUBLESHOOTING Problem Solution The StudioVision will not turn on. • Make sure the AC adapter is fully plugged in, and the AC power source is reliable. The StudioVision is turned on, but • Check whether the color saturation is properly configured. there is only a black and white •...
  • Page 16 ONE-YEAR LIMITED WARRANTY This Elvid product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider’s responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider’s discretion, of any product that fails during normal use of this product in its...
