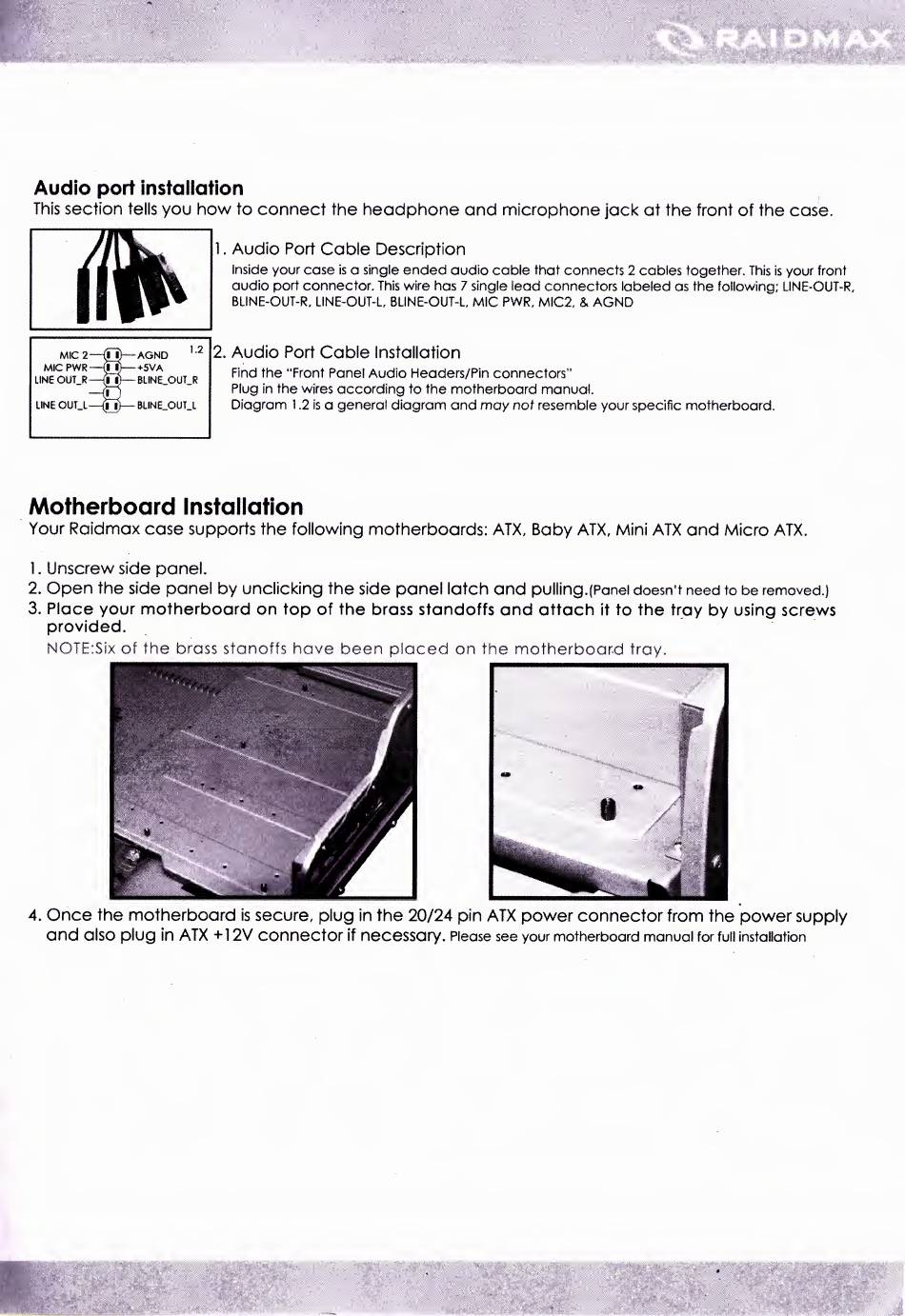

Audio port installation
This section tells you how to connect the headphone and microphone jack at the front of the case.
1. Audio Port Cable Description
Inside your case is a single ended audio cable that connects 2 cables together. This is your front
audio port connector. This wire has 7 single lead connectors labeled as the following; LINE-OUT-R,
BLINE-OUT-R, LINE-OUT-L, BLINE-OUT-L, MIC PWR, MIC2, & AGND
2. Audio Port Cable Installation
Find the "Front Panel Audio Headers/Pin connectors"
Plug in the wires according to the motherboard manual.
Diagram 1.2 is a general diagram and may not resemble your specific motherboard.
1
w
MIC 2 —
MIC PWR —
LINE OUT_R—
LINE OUT_L—
dTly—AGND 1,2
0—+5VA
0—BUNE_OUT_R
0— BLINE_OUT_L
Motherboard Installation
Your Raidmax case supports the following motherboards: ATX, Baby ATX, Mini ATX and Micro ATX.
1. Unscrew side panel.
2. Open the side panel by unclicking the side panel latch and pulling.
(Panel doesn't need to be removed.)
3. Place your motherboard on top of the brass standoffs and attach it to the tray by using screws
provided.
NOTE:$ix of the brass stanoffs have been placed on the motherboard tray.
4. Once the motherboard is secure, plug in the 20/24 pin ATX power connector from the power supply
and also plug in ATX +12V connector if necessary.
Please see your motherboard manual for full installation
