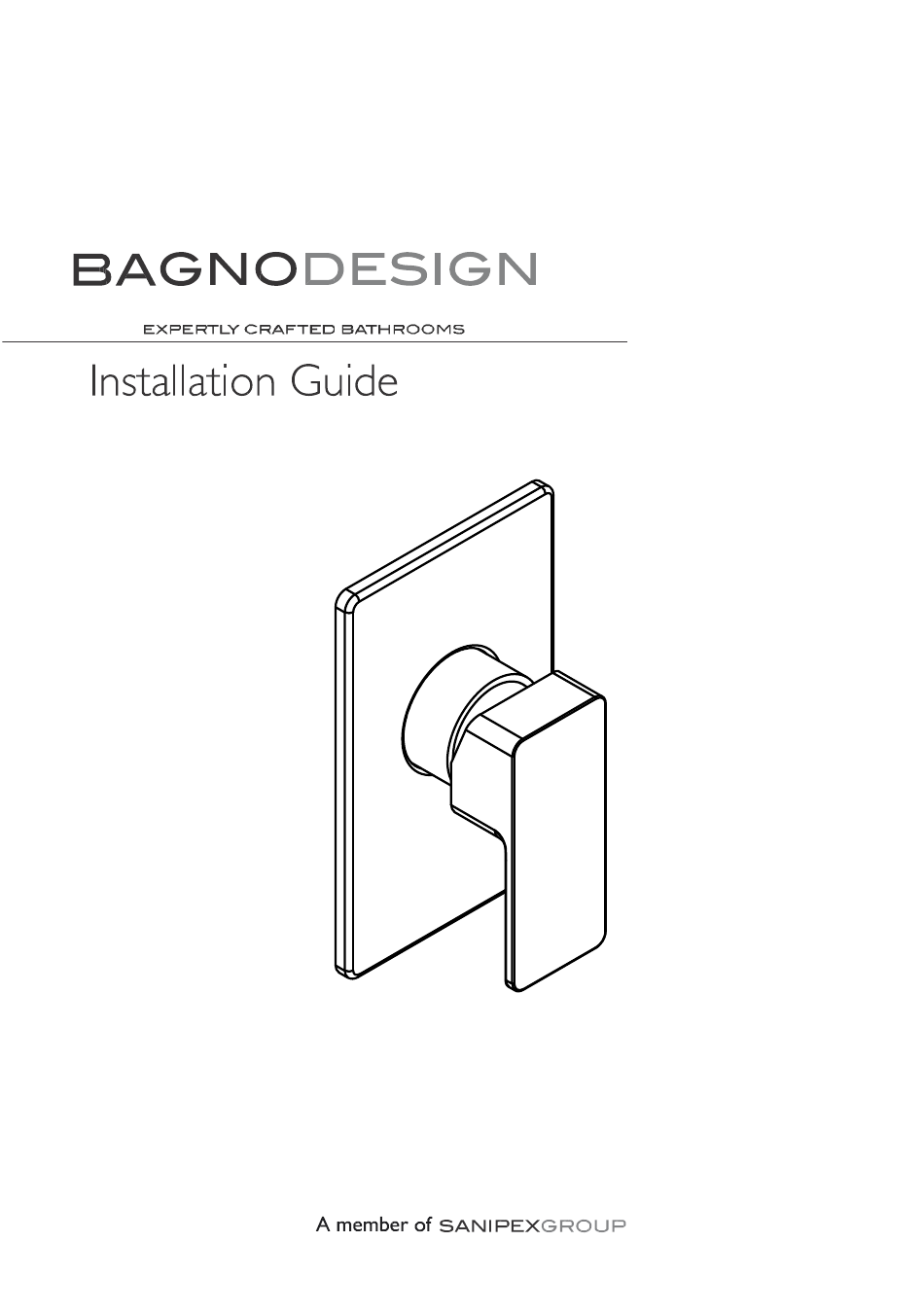

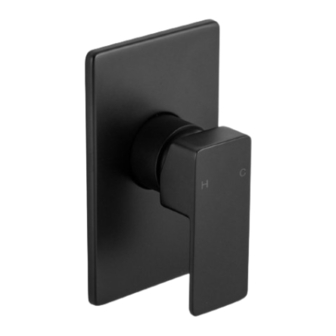

- Page 1 BDM-ZEP-410-XX ZEPHYR CONCEALED SHOWER MIXER www.sanipexgroup.com...
- Page 3 IMPORT ANT PLEASE READ Remove all packaging and check the product for missing parts or damage before starting installation. Any alterations made to this product and fittings may infringe water regulations and invalidate the guarantee. Installation must comply with all Local/National Water Supply Authority Regulations/Byelaws and Building and Plumbing Regulations.
- Page 4 Concealed Shower Mixer Install the mixer housing at a depth so that the finished surface is no further than the maximum distance marking shown in the diagram. Connect the Hot and Cold water supplies to the mixer, then install the mixed water supply, cap off and pressure test to prevent any future leakages...
- Page 5 Once the surrounding finishes have been applied (Tiles/Marble etc.) remove the protection covers. Fit the face plate onto the mixer body, it is advised to use a small amount of lubricant on the rubber seals. Slide the handle onto the cartridge pin and secure with the grub screw, then push on the cover cap.
- Page 6 Note:...
- Page 7 Note:...
- Page 8 www.sanipexgroup.com INM-ZEP-410-XX-11-23...
