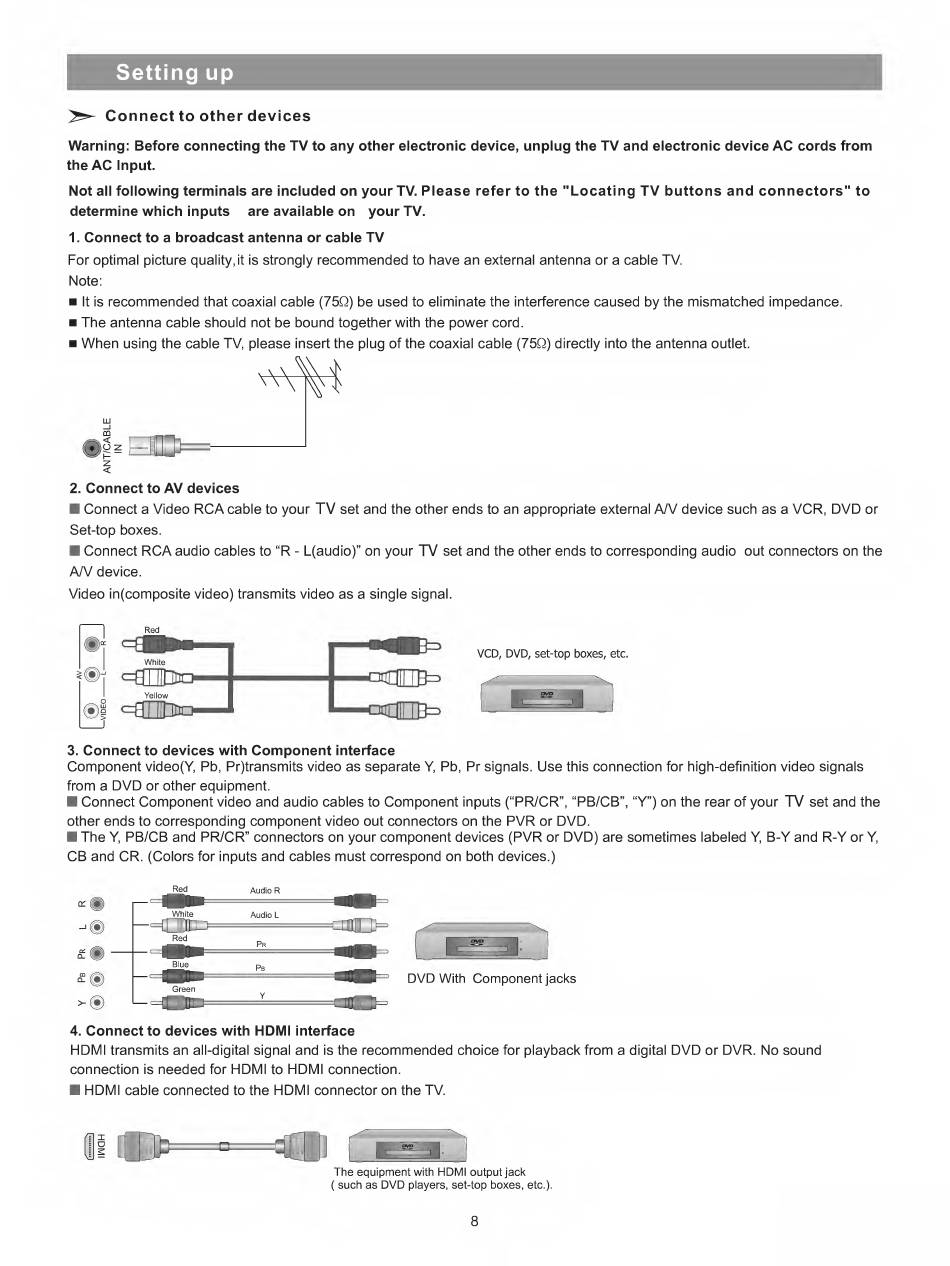

Connect to other devices
Warning: Before connecting the TV to any other electronic device, unplug the TV and electronic device AC cords from
the AC Input.
Not all following terminals are included on your TV. Please refer to the "Locating TV buttons and connectors" to
determine which inputs are available on your TV.
1. Connect to a broadcast antenna or cable TV
For optimal picture quality, it is strongly recommended to have an external antenna or a cable TV.
Note:
■ It is recommended that coaxial cable (75Q) be used to eliminate the interference caused by the mismatched impedance.
■ The antenna cable should not be bound together with the power cord.
■ When using the cable TV, please insert the plug of the coaxial cable (75Q) directly into the antenna outlet.
<
2. Connect to AV devices
■ Connect a Video RCA cable to your
TV
set and the other ends to an appropriate external A/V device such as a VCR, DVD or
Set-top boxes.
■ Connect RCA audio cables to "R - L(audio)" on your
TV
set and the other ends to corresponding audio out connectors on the
A/V device.
Video in(composite video) transmits video as a single signal.
3. Connect to devices with Component interface
Component video(Y, Pb, Pr)transmits video as separate Y, Pb, Pr signals. Use this connection for high-definition video signals
from a DVD or other equipment.
■ Connect Component video and audio cables to Component inputs ("PR/CR", "PB/CB", "Y") on the rear of your
TV
set and the
other ends to corresponding component video out connectors on the PVR or DVD.
■ The Y, PB/CB and PR/CR" connectors on your component devices (PVR or DVD) are sometimes labeled Y, B-Y and R-Y or Y,
CB and CR. (Colors for inputs and cables must correspond on both devices.)
Red Audio R
4. Connect to devices with HDMI interface
HDMI transmits an all-digital signal and is the recommended choice for playback from a digital DVD or DVR. No sound
connection is needed for HDMI to HDMI connection.
■ HDMI cable connected to the HDMI connector on the TV.
The equipment with HDMI output jack
( such as DVD players, set-top boxes, etc.).
8
