Encoder-Flex 1024
Digital Rotary Encoder
Part Number: EFLEX10242V34CAI/x
INSTRUCTION
MANUAL
Approvals
REV021224

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Encoder-Flex 1024 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for 4B Encoder-Flex 1024

  • Page 1 INSTRUCTION MANUAL Approvals Encoder-Flex 1024 Digital Rotary Encoder Part Number: EFLEX10242V34CAI/x REV021224...
  • Page 2 To download the digital version of this instruction manual and to check other available languages scan the following QR code. Para descargar la versión digital de este manual de instrucciones y consultar otros idiomas disponibles, escanee el siguiente código QR. Para baixar a versão digital deste manual de instruções e verificar outros idiomas disponíveis, escaneie o seguinte código QR.
  • Page 4: Table Of Contents

    TABLE OF CONTENTS CUSTOMER SAFETY RESPONSIBILITIES ................ 5 PRODUCT OVERVIEW ....................... 8 PACKAGE CONTENT ......................8 SPECIFICATIONS ......................9 APPROVALS ........................10 DIMENSIONS ........................11 SPECIFIC CONDITIONS OF USE ..................12 STANDARD WIRING DIAGRAM ..................13 INSTALLATION ........................ 14 OPERATION ........................16 COMMUNICATION OPTIONS ..................
  • Page 5: Customer Safety Responsibilities

    The proper installation and maintenance of all our products is the responsibility of the user unless you have asked 4B to perform these tasks.
  • Page 6 Correct installation of the product is important for safety and performance. If you have not asked 4B to perform the installation of the unit on your behalf, it is critical for the safety of your operation and those who may perform work on your operation that you select a qualified and competent electrical installer to undertake the...
  • Page 7 Retain the Operation Manual and other important maintenance and service documents provided by 4B and have them readily available for people servicing your 4B equipment. Should you have any questions, please call the 24-hour hotline number 309-698-5611, contact your local distributor, or use one of the contact ways available in our website www.go4b.com/usa.
  • Page 8: Product Overview

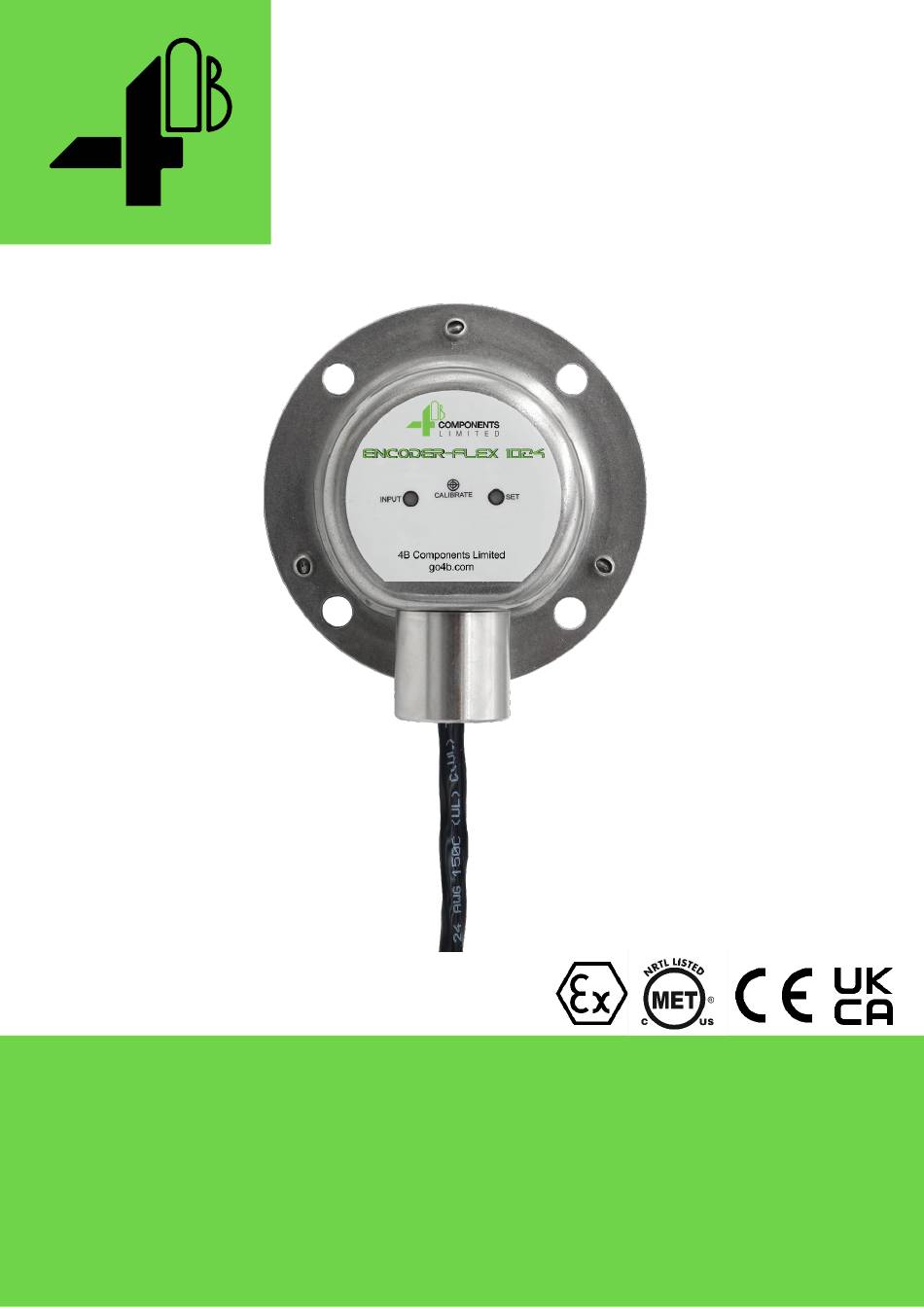

    PRODUCT OVERVIEW The Encoder-Flex 1024 is a rotary shaft encoder designed to detect shaft speed, shaft position, gate position, and shaft direction. This solid-state encoder features electronics that are potted and totally sealed in a stainless steel body and are completely mechanically isolated from the rotating shaft.
  • Page 9: Specifications

    SPECIFICATIONS Operating Voltage Range 12 VDC to 24 VDC (Optimal) – 26.2 VDC max Power Max Speed Range 0-2,000 RPM Outputs • 4-20mA or 0-20 (21mA Max, 330Ω Max) • Quadrature (500Hz Max) • Pulse (500Hz Max) • Modbus RTU (RS485 115200 bps) Resolution Adjustable 1 to 1024 Pulses Per Revolution Enclosure...
  • Page 10: Approvals

    APPROVALS EFLEX1024….CAI… Class II Division 1 Groups E,F&G T 100°C AEx / Ex ta IIIC T 100°C Da IP66 30ׄ ° C ≤ Ta ≤ +50°C MET Labs listing – E115704 EFLEX1024….CAI… CML23ATEX3223X, CML23UKEX3224X Ex II 1 D Ex ta IIIC T 100°CDa IP66 30ׄ...
  • Page 11: Dimensions

    DIMENSIONS NOTE: Dimensions are in mm 11 of 29...
  • Page 12: Specific Conditions Of Use

    SPECIFIC CONDITIONS OF USE The Encoder-Flex 1024 shall be connected to a suitable external earth via the mounting holes or via the mounting screws and a suitable ring crimp. The integral cable shall be terminated in a suitably certified enclosure or in a safe area.
  • Page 13: Standard Wiring Diagram

    STANDARD WIRING DIAGRAM All wiring must be in accordance with local and national electrical codes and should be undertaken by an experienced and qualified electrician. If required by local installation code, use dust/liquid tight flexible metal conduit with approved fittings to protect the sensor cables. If required, mount a suitable junction box within the supplied length of the product’s cable and (if required, using a suitable conduit to protect the cables) make the necessary wiring connections inside this junction box.
  • Page 14 Current Loop Output Wiring Example PTD110V6 Wiring Example PTD110V6 Programing Instructions 14 of 29...
  • Page 15: Installation

    INSTALLATION The Encoder-Flex 1024 should be mounted to a rotating shaft using the threaded or D-profile shaft of the encoder. A belt or bracket can be mounted onto the two recessed screw threads and this can be used to provide further mechanical support but is primarily for the purpose of stopping slight movements in the device housing.
  • Page 16: Operation

    OPERATION Layout The Encoder-Flex 1024’s interface consists of two bi-color (red/green) LED’s labeled Input and Set. Additionally, in the center of the device is a magnetic target (labeled CALIBRATE) which can be used to control the operating mode and calibration. A special calibration magnet is supplied, but any dual pole magnet can be used.
  • Page 17 1024 then the device will be able to continue to keep track when powered back on up to half a turn on the shaft. If the machine/shaft is moved further than this without power then the Encoder-Flex 1024 will need to be recalibrated for Multi Turn in the method previously described.
  • Page 18 During an error state the set LED will flash several times in sequence. And the output may not act as expected. This flash can be green or red. If this occurs, please note the color and number of flashes that are repeating and contact 4B for further instructions.
  • Page 19 1. MULTI-TURN MODE (GATE POSITION) Action Set LED feedback (Red) Turn the shaft to the start position Place the red magnet (N) on the calibration point Hold the magnet in place for 3 seconds Remove the magnet. 4 mA is set Turn the shaft to the end position Place the red magnet (N) on the calibration...
  • Page 20 3. SPEED MODE Action Set LED feedback (Green) Turn on the machine and wait until it achieves 100% speed. Place the blue magnet (S) on the calibration point Hold the magnet in place for 3 seconds Remove the magnet. 4-20 mA is set If light is solid green preform steps 3.1- Note 3.4 again.
  • Page 21: Communication Options

    Document. Configuration is limited in this mode, the GUI (see below) should be used to remotely configure/calibrate the encoder. Encoder-Flex 1024 Interface GUI Additionally, the device can also be controlled via a GUI called the Encoder-Flex 1024 Configurator. This gives a live view of the current measurements as well as allowing the device to be configured with different settings.
  • Page 22 Dashboard • Dial indicates shaft orientation • 4-20 mode shows current operating mode • Readouts for 4-20, total turns, RPM, Multi turn percentage • Error Information • Buttons for remotely changing modes and calibrating device 22 of 29...
  • Page 23 • Set Tacho (Speed) Resolution • Change Current Output mode (Default Auto) • Change 4-20 to 0-20 • Advanced settings for troubleshooting only – Contact 4B Once changes are made press program settings. Encoder will remember settings even after power reset.
  • Page 24 Program Device Used to update firmware. Only use when recommended by 4B. If done incorrectly or with wrong file, it may render the encoder un-usable. Extra Info The below information is available via Modbus registers as well. This information can be useful for troubleshooting purposes.
  • Page 25 Factory Default When selected all settings are changed to the factory default. ALL CALIBRATIONS WIPED Operating Mode: Continuous Angle Tacho Range: 960RPM Resolution: 64 PPR Current Mode: Auto Current Range: 4-20mA Hysteresis: 0 Speed Measurement Window: 1000ms WARNING If the system does not immediately shutdown as expected or alarm as required, then remove the machine from service until the problem has been diagnosed and corrected.
  • Page 26 NOTES 26 of 29...
  • Page 27 NOTES 27 of 29...
  • Page 28: Product Warranty

    (1) year after date of purchase from 4B. Any product determined by 4B at its sole discretion to be defective in material or workmanship and returned to a 4B branch or authorized service location, as 4B designates, shipping costs prepaid, will be, as the exclusive remedy, repaired or replaced at 4B’s option.
  • Page 29 P.O Box: SHJ-0., UAE reg. no. 23784 Jiangsu Province Tel: +971 (0) 6 5212 044 Tel: +86-136 0160 9266 Copyright © 2023 4B Group - All Rights Reserved go4b.com 4B Group reserves the right to change the contents of this document without prior notice.
