Clas Ohlson WX-LED44-80MC-1 Manual

Battery-operated RGB string light
Art.no. 36-9263 Model WX-LED44-80MC-1
Please read the entire instruction manual before using the product and then
save it for future reference. We reserve the right for any errors in text or images
and any necessary changes made to technical data. In the event of technical
problems or other queries, please contact our Customer Services Services.
Safety
• If the product is not going to be used for a long period, the batteries
should be removed from the battery box.
• Never mix old and new batteries. Never mix rechargeable and non-
rechargeable batteries.
• The product contains a button cell battery. Never put batteries in your
mouth and always handle them with care. There is a risk of serious
injury. Keep new and used batteries out of the reach of children.
• Never use the product if the battery compartment of the remote
control is damaged.
Buttons and functions
Battery box
Open the battery pack and insert
2 × C/LR14 batteries (sold separately).
Follow the markings in the battery
compartment to ensure correct polarity.
1. On/Off, press repeatedly to select
a light pattern.
2. Battery cover lock tabs.
3. IR sensor for remote control (integrated)
Specifications
String light
Number of LEDs 80 pcs
Batteries 2 × C/LR14
IP rating IP44
Length 5.5 m
Remote control
Range Max. 5 m
Battery 1 × CR2025 (included)

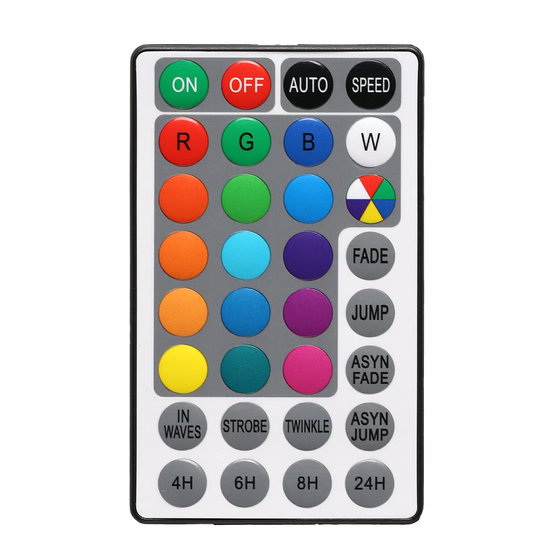

Remote control
A) [ ON ]
B) [ OFF ]
1 3
C) [ AUTO ] Automatically switch between lighting effects.
D) [ SPEED ] Press repeatedly to change the light effect speed.
E) [ ] Press repeatedly to switch between different shades of colour.
2
F) Light effects:
- [ FADE ] All the colours fade into each other (synchronously).
- [ JUMP ] All the colours interchange without a transition
(synchronously).
- [ ASYN FADE ] All the colours fade into each other (asynchronously).
- [ ASYN JUMP ] All the colours interchange without a transition
(aynchronously)
- [ TWINKLE ] Press repeatedly to switch between 2 or 3 colours
which change synchronously.
- [ STROBE ] Press repeatedly to select a strobe effect with different
background colours.
- [ FADE ] All colours the fade into each other in waves.
G) 24-hour timer: Select the number of hours you want the string light to
be on within a 24-hour period. 4, 6, 8 hours or all the time.
H) Fixed colour shades: Press to change the colour.
I) Fixed basic colours
- [ R ] Red light
- [ G ] Green light
- [ B ] Blue light
- [ W ] White light
A B C D
I
E
H
F
G
Using the product
• Point the remote directly at the battery box to use the string light.
• Switch the string light on by pressing [ ON ] on the remote control or
by pressing the battery box button (1).
• Switch the string light off by pressing [ OFF ] on the remote control or by
pressing the battery box button (1) repeatedly until the lights go out.
• Press the battery box button (1) repeatedly to scroll through 25 different
light effects and fixed colours. After the last effect/colour, the string light
will switch off.
• Select a light effect by pressing one of the effect buttons (F) on
the remote control.
• Press [ D ] repeatedly to select one of the 4 speeds for the light effects.
• Select the number of hours that the string light will be on within a
24-hour period by pressing one of the buttons (G). Choose between:
[ 4H ] 4 hours, [ 6H ] 6 hours, [ 8H ] 8 hours or [ 24H ] all the time.
For example: If you press [ 6H ], the string light will flash green once to
confirm. The string light will stay switched on for 6 hours and then switch off
for 18 hours before it comes on again and stays on for 6 hours, and so on.
Cleaning and care
The product should be cleaned using a dry cloth or vacuum cleaner.
Replacing the battery
1. Press the catch and
pull the battery holder
out of the remote
control.
2. Insert one new CR2025 battery.
Make sure the polarity is correct.
3. Slide the battery holder back into
the remote control.
If you suspect that a battery has been swallowed or has entered
the body in another way, seek medical assistance immediately.
Responsible disposal
This symbol indicates that this product should not be disposed
of with general household waste. This applies throughout the
entire EU. In order to prevent any harm to the environment or
health hazards caused by incorrect waste disposal, the product
must be handed in for recycling so that the material can be dis-
posed of in a responsible manner. When recycling your product,
take it to your local collection facility or contact the place of
purchase. They will ensure that the product is disposed of in an
environmentally sound manner.
