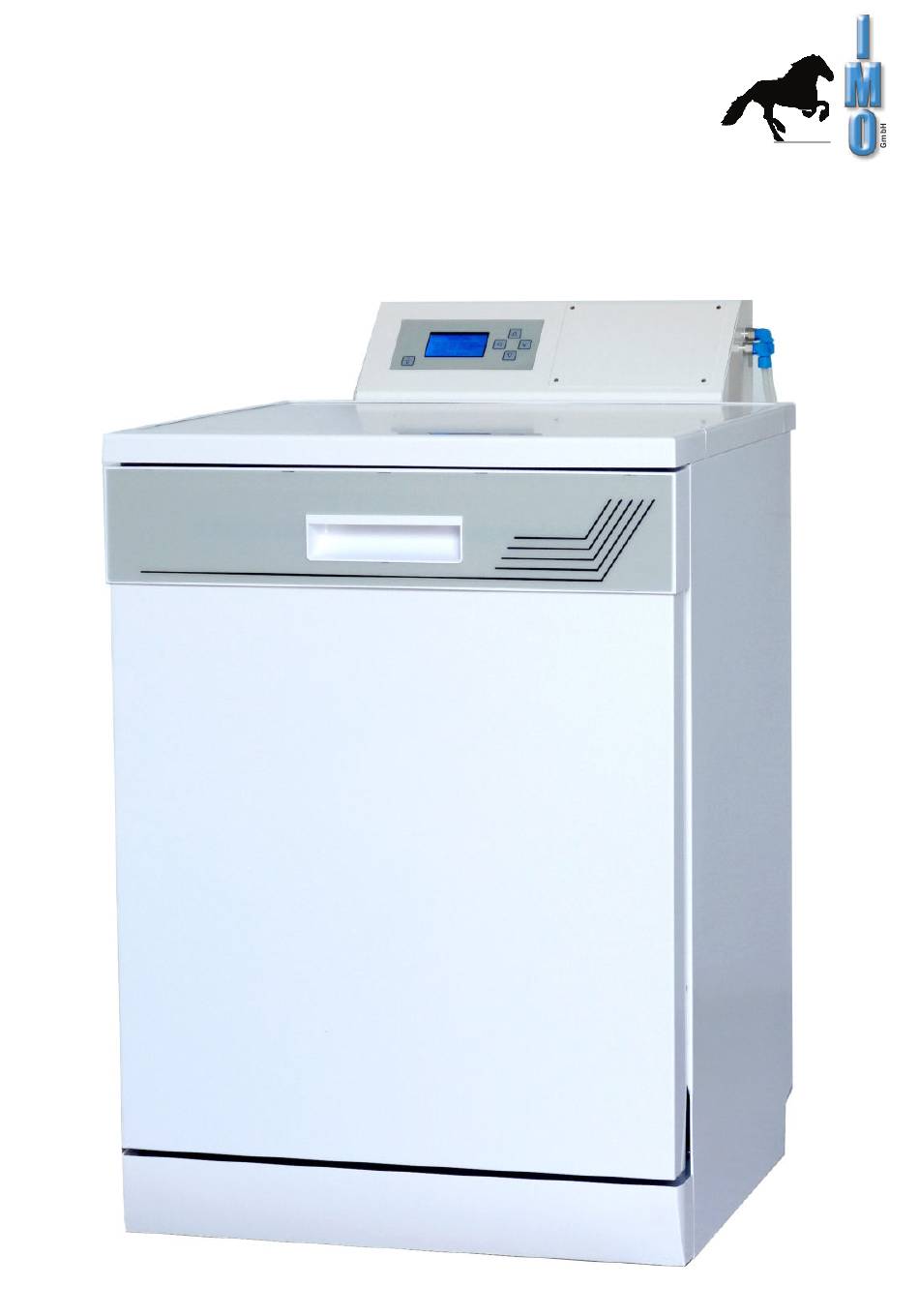

- Page 1 User Guide Öko 2000 Öko 2000 IMO GmbH Gässlesweg 6 D-75334 Straubenhardt Tel.: 070 82 491 80 Fax: 604 36 www.imo-ag.com info@imo-ag.com...
-
Page 2: Table Of Contents
5.6.6 Exchange of the sprayarms 5.6.7 Exchange of the dosing hoses 5.6.8 Version with white dosing head 5.6.9 Version with black dosing head and transparent lid IMO GmbH Gässlesweg 6 D-75334 Straubenhardt Tel.: 070 82 491 80 Fax: 604 36 www.imo-ag.com... - Page 3 Continuation Contents page 6. Interfaces / network connection 7. Error messages 8. Function of the connector plugs 9. Technical informations IMO GmbH Gässlesweg 6 D-75334 Straubenhardt Tel.: 070 82 491 80 Fax: 604 36 www.imo-ag.com info@imo-ag.com...
-
Page 4: Safety Instructions
Now we wish you success at cleaning of your products. If you have questions, you can get in contact with us anytime. GmbH IMO GmbH Gässlesweg 6 D-75334 Straubenhardt Tel.: 070 82 491 80 Fax: 604 36 www.imo-ag.com... -
Page 5: Schedule Of Connection
2.Schedule of connection Öko 2000 NE water deionizer with conductivity measurement IMO GmbH Gässlesweg 6 D-75334 Straubenhard Tel.: 070 82 491 80 Fax: 604 36 www.imo-ag.com info@imo-ag... -
Page 6: Schedule Of Connection Of Effluent Hose
If the hose ends lower, it may be possible that because of the vacuum lifting effect, the water drains out of the machine. End of waste water hose Alternative End of waste water hose IMO GmbH Gässlesweg 6 D-75334 Straubenhardt Tel.: 070 82 491 80 Fax: 604 36 www.imo-ag.com... -
Page 7: Starting Up
After some filling operations of the system, the connections have to be mounted at the right positions again. The remaining air can be removed at the vent valve in the cover. fresh water to Öko 2000 Normal operation IMO GmbH Gässlesweg 6 D-75334 Straubenhardt Tel.: 070 82 491 80 Fax: 604 36 www.imo-ag.com... -
Page 8: Cleaining Agent Dosage
(Activator AT can also be added manually to the washroom before the cleaning process). Powder: Dispense powdered cleaning agent, as shown, onto the inside of the open front flap before starting the cleaning process, or when prompted by the equipment. IMO GmbH Gässlesweg 6 D-75334 Straubenhardt Tel.: 070 82 491 80 Fax: 604 36 www.imo-ag.com... -
Page 9: Operating Control Front Panel
The water supply to the upper spray arm is automatically closed by a ball valve during removal. This means that the complete spraying capacity is available at the lower spray arm. IMO GmbH Gässlesweg 6 D-75334 Straubenhardt Tel.: 070 82 491 80 Fax: 604 36 www.imo-ag.com... -
Page 10: Cleaning
During the heating-up phase the display shows the elapsed time of cleaning or rinsing as follows: ‘--’ . After the temperature has reached its debit, the programed time starts. The elapsed time is shown on the display. IMO GmbH Gässlesweg 6 D-75334 Straubenhardt Tel.: 070 82 491 80... -
Page 11: Operating Summary
Display of network parameter, for example IP adress Manual drain 4.2 Start Program programme start Select to choose stored programs and press to start. no. 1 IMO GmbH Gässlesweg 6 D-75334 Straubenhard Tel.: 070 82 491 80 Fax: 604 36 www.imo-ag.com info@imo-ag.c... -
Page 12: Program New / Alter
Addition of cleaning powder: yes / no switched by add. If ‘ yes’ is adjusted, program stops and gives message for manual detergent powder: no dosage of cleaning powder. IMO GmbH Gässlesweg 6 D-75334 Straubenhard Tel.: 070 82 491 80 Fax: 604 36 www.imo-ag.com... - Page 13 - If an EC-limit of a rinsing step is abode, so each further rinsing step will be overleaped, because enough cleaning is reached. - Maximal 10 program steps are possible. IMO GmbH Gässlesweg 6 D-75334 Straubenhardt Tel.: 070 82 491 80 Fax: 604 36 www.imo-ag.com...
-
Page 14: Program Delete
(day/month/year resp.h/min). time: 10:59 Enter to go on. 4.5.2 change Language language deutsch Select for the required language and english to confirm. IMO GmbH Gässlesweg 6 D-75334 Straubenhardt Tel.: 070 82 491 80 Fax: 604 36 www.imo-ag.com info@imo-ag.com... -
Page 15: Monitor Sprayarm On/Off
Indication: If the cleaner will be used in other cleaning program, the modification interferes in the concerned program. IMO GmbH Gässlesweg 6 D-75334 Straubenhardt Tel.: 070 82 491 80 Fax: 604 36 www.imo-ag.com... -
Page 16: Assign Detergents To Dosing Pump
Code-no. 0000 this function is switched off. code number: 0000 The following fuction will be protected with the code-number: programme new/alter programme delete changing of code IMO GmbH Gässlesweg 6 D-75334 Straubenhardt Tel.: 070 82 491 80 Fax: 604 36 www.imo-ag.com... -
Page 17: Network Settings
IP adress over the DHCP-System. This adress and additional network parameters are shown here. Some more information to the network connection you will find at point 6 (page 24). IMO GmbH Gässlesweg 6 D-75334 Straubenhardt Tel.: 070 82 491 80 Fax: 604 36 www.imo-ag.com... -
Page 18: Program Flow
DOS1: component A 0,5% programme no. 2 End of cleaning step, water is drained. cleaning temp.: --°C / 50°C duration: --min / 20min DOS1: component A 0,5% IMO GmbH Gässlesweg 6 D-75334 Straubenhardt Tel.: 070 82 491 80 Fax: 604 36 www.imo-ag.com info@imo-ag.com... -
Page 19: Step Of Rinsing
2 End of rinsing step, water is drained / pumped out. rinsing temp.: --°C / 40°C duration: --min./ 10min. Ec-value: --µS / 30µS IMO GmbH Gässlesweg 6 D-75334 Straubenhardt Tel.: 070 82 491 80 Fax: 604 36 www.imo-ag.com info@imo-ag.com... -
Page 20: Step Of Drying
Provided, that report is activate in Setup, it will be printed. finished By opening the door or entering of -key the equipment switched of. IMO GmbH Gässlesweg 6 D-75334 Straubenhardt Tel.: 070 82 491 80 Fax: 604 36 www.imo-ag.com... -
Page 21: Example Of Program
30°C duration: 6min. duration: 6min. EC-limit: 30µS EC-limit: 30µS programme no. 2 step no.: type: drying temperature: 80°C drying grade run after 30min. IMO GmbH Gässlesweg 6 D-75334 Straubenhardt Tel.: 070 82 491 80 Fax: 604 36 www.imo-ag.com info@imo-ag.com... -
Page 22: Indications And Manifestations
For optimum spraying of the wash ware, we recommend, to replace both spray arms approx. every 200 washing cycles Spray arm at the bottom: Art. no.: 1800.88 Spray arm top: Art. no.: 1800.89 IMO GmbH Gässlesweg 6 D-75334 Straubenhardt Tel.: 070 82 491 80 Fax: 604 36 www.imoag.com... -
Page 23: Exchange Of The Dosing Hoses
Spare hose: Art-No. 1804.0000.24 The hole in the hose olive must be in the direction of flow in the hose, otherwise the flow is blocked. left pump right pump IMO GmbH Gässlesweg 6 D-75334 Straubenhardt Tel.: 070 82 491 80 Fax: 604 36 www.imo-ag.com... -
Page 24: Version With Black Dosing Head And Transparent Lid
To change the dosing hose, the dosing pump head must be opened. To do this, unscrew the 4 Crosshead screws the fastening eyelets of the transparent cover and remove the transparent cover. IMO GmbH Gässlesweg 6 D-75334 Straubenhardt Tel.: 070 82 491 80 Fax: 604 36 www.imo-ag.com... - Page 25 The protocols are sorted on date and can be spent very easily as pdf. Adjustments or changes at the program can not be made via the network but have to be done at the system itself. IMO GmbH Gässlesweg 6 D-75334 Straubenhardt Tel.: 070 82 491 80...
- Page 26 - Defect of NTC on the blowing out side/ - If the error repeats, please contact us Short circuit sucking in side of drying unit of NTC air - Defect of dryness mainboard IMO GmbH Gässlesweg 6 D-75334 Straubenhardt Tel.: 070 82 491 80 Fax: 604 36 www.imo-ag.com...
- Page 27 - Dosing hose is plugged sufficient much cleaner to do this - Air bubbles in the dosing hose (Main menu -> Setup -> Detergent -> Suck in cleaner) IMO GmbH Gässlesweg 6 D-75334 Straubenhard Tel.: 070 82 491 80 Fax: 604 36 www.imo-ag.com...
- Page 28 - Check water inlet and water pressure Fill time is overshot - Water inlet hose is defect - Start program again - Possibily existing water shunt-off valve is not completely open IMO GmbH Gässlesweg 6 D-75334 Straubenhardt Tel.: 070 82 491 80 Fax: 604 36 www.imo-ag.com...
- Page 29 - A program foaming or defoaming - Switch on spray arm control or select arm control cleaner is selected, although spray another program -arm control is switched off. IMO GmbH Gässlesweg 6 D-75334 Straubenhardt Tel.: 070 82 491 80 Fax: 604 36 www.imo-ag.com...
- Page 30 On this connection mains voltage is present while a breakdown of the machine. Current: max. 1A. The error message is shown on the display. External conductivity measurement Here, your can connect the conductivity measurement of the deioniser cartridge if available. IMO GmbH Gässlesweg 6 D-75334 Straubenhardt Tel.: 070 82 491 80 Fax: 604 36 www.imo-ag.com...
- Page 31 5 6 x 49 x 48 cm overall dimensions H x W x D 9 7 x 60 x 77 cm weight approx. 80kg IMO GmbH Gässlesweg 6 D-75334 Straubenhard Tel.: 070 82 491 80 Fax: 604 36 www.imo-ag.com info@imo-ag.com...
