IQ-USM 810 Service Manual The information furnished in this manual does not include all of the details of design, production, or variations of the equipment. Nor does it cover every possible situation which may arise during installation, operation or maintenance. If you need special assistance beyond the scope of this manual, please contact the Crown Technical Support Group.
, and with its distributed intelligence ® continue to operate even when an IQ System is not connected. The IQ-USM 810 can also act as a sys- tem interface to other IQ components. The IQ-USM 810 features high-quality 24-bit A/D and D/A converters along with 240MIPS of full 32-bit float- ing point DSP for optimum dynamic range.

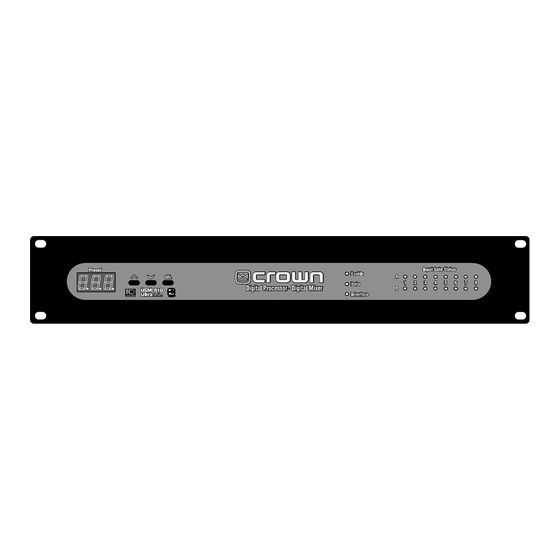

AC power is being supplied. An amber front-panel Data Signal Presence Indicator (DATA) flashes whenever commands ad- dressed to the IQ-USM 810 are received. A green front-panel Interface indicator lights when the IQ-USM 810 is being used as system interface. A three-digit digital display indicates the IQ-USM 810’s initialization...
130447-1 Rev. A 3 Circuit Theory 3.1 Overview This section explains operation of the IQ-USM 810 cir- cuitry. Please refer to the IQ-USM 810 Reference Manual and IQ for Windows help files for information about the IQ-USM 810 features and operation.
IQ-USM 810 Service Manual • Line: In Line mode, both the coupling capacitors (C104 & C105) and the series resistors (R103 & R104) are in the signal path. The capacitors block the phantom voltage from the input while the se- ries resistors work as a voltage divider with R105 &...
IQ-USM 810 Service Manual used. This data is routed to the SHARC PWA for pro- cessing (ADC1-4). Figure 3.4 shows the audio data and its relationship to the clock signals. 3.3.4 DC Voltages The Input PWA receives +/–15V and +5V from the Sys- tem Controller.
IQ-USM 810 Service Manual The System Controller will display the error code, then begin the boot process again. By watching the boot process on the front display, the error code can be read at the end of the boot process before the next boot be- gins.
Page 17
SDRAM provides a high speed synchronous memory resource. Only the four SHARC processors have ac- cess to SDRAM and they are responsible for the ac- cess and maintenance of it. Each SHARC monitors the IQ-USM 810 Service Manual 667us 1667us 520us...
IQ-USM 810 Service Manual bus and accesses SDRAM when it is available. The SHARC blocks access to the bus through the use of the \SDLOCK pin during SDRAM transfers. SDRAM is utilized only for audio delay processing and has no firm- ware.
NORM position. The HC12 provides all of the processing for the control of the IQ-USM 810. U16 provides sensing of the +5V power supply and brings the HC12 out of reset once the supply is stable. Switch S1 allows resetting of the controller externally.
Crown Bus loop via U19A. Relay K1 provides paths to the I/O circuitry while the IQ-USM 810 is powered. When the unit is turned off, the relay allows the Crown Bus loop to pass through the unit to prevent Crown Bus loop communication from being interrupted.
• DA: IQ Ucode Device Address. A part of the Ucode string that identifies it as pertaining to a particular device. The DA for the IQ-USM 810 is set by the front panel controls. At first power up the IQ-USM 810 defaults to address $01.
IQ-USM 810 Service Manual 4.4 IQ Message String Syntax 4.4.1 Host to Device Messages The following syntax is used for host to device mes- sages: Send: XX XX XX XX XX; Description XX: A byte of the message explicitly given in hexadeci- mal.
Page 24
IQ-USM 810 Service Manual tal Output 8 Off. Send: DA DT CT 80 5C 09 01 CS; Set Control Port Digi- tal Output 9 On. Send: DA DT CT C0 5C 09 00 CS; Set Control Port Digi- tal Output 10 Off.
Page 25
Use one of the following two methods to test the three front panel pushbuttons: Method 1 (Manual Verification) Hold in the “SEL” button and verify the IQ-USM 810 display cycles between the three display modes (pre- set, address, and baud rate).
Page 26
IQ response. 4.6.19 SHIPPING STATE RESTORATION Spec: The IQ-USM 810 is returned to the factory de- faults. Note: This section may be skipped when testing a service unit if it is known that the customer wishes to retain the mixers settings and presets.
Ucode protocol). With this object set, no IQ bus, communication passes through $C0 $05 the IQ-USM 810 Crown bus port. Send: DA DT CT C0 05 09 01 CS; to master the IQ Bus, open the loop Response: None Send: DA DT CT C0 05 00 CS;...
130447-1 Rev. A IQ-USM 810 Service Manual 4.9 Display Test Patterns Figure 4.1 shows display test patterns for the IQ-USM 810. For each display section, the sequence starts at the top and cycles to the bottom, and then repeats. LED Display...
Page 30
Q. How should I set the baud rate on the IQ-USM 810? A. The baud rate for the RS232 interface is adjustable and is accessed by the front panel (see the Reference Manual for information on settng the baud rate).
Crown Customer Service Technical Support Group Factory Service Parts Department Shipping Address: Plant 2 S. W. 1718 W. Mishawaka Rd., Elkhart IN 46517 Phone: (219) 294-8200 Toll Free: (800) 342-6939 Fax: (219) 294-8301 http://www.crownaudio.com IQ-USM 810 Service Manual Parts 5-1...
IQ-USM 810 Service Manual 130447-1 Rev. A 6 Exploded View Parts 6.1 General Information This chapter includes a mechanical part list for this product. All serviceable parts and assemblies will have a Crown Part Number (CPN) listed in this chap- ter.
PWA stands for Printed Wire Assembly. This is the com- pleted circuit board with all components assembled. PWB stands for Printed Wire Board. This is the circuit board only, without components. 7.2 IQ-USM 810 Modules 7.2.1 Front Panel Display PWA: 126747-3 Display PWA on 126746-3 PWB.
IQ-USM 810 Service Manual 130447-1 Rev. A 8 Module Parts 8.1 General Information This chapter includes electrical parts lists for this prod- uct. All serviceable parts and assemblies will have a Crown Part Number (CPN) listed in this chapter. The parts listed are current as of the date printed.
IQ-USM 810 Service Manual 130447-1 Rev. A 9 Schematic Diagrams The schematics provided are representative only. There may be slight variations between amplifier to amplifier. These schematics are intended to be used for troubleshooting purposes only. 126323 Rev. A 126688 Rev. A 126691 Rev.
