© Copyright 2022
Gometrics S.L.
Pol. Ind. Riera de Caldes, C/ Basters 17
Palau-solità i Plegamans - 08184 Barcelona
Tel Sede Central (+34) 93 8646843
Tel Zona Centro (+34) 91 3710042
Web: http://www.gometrics.net
E-mail: info@gometrics.net

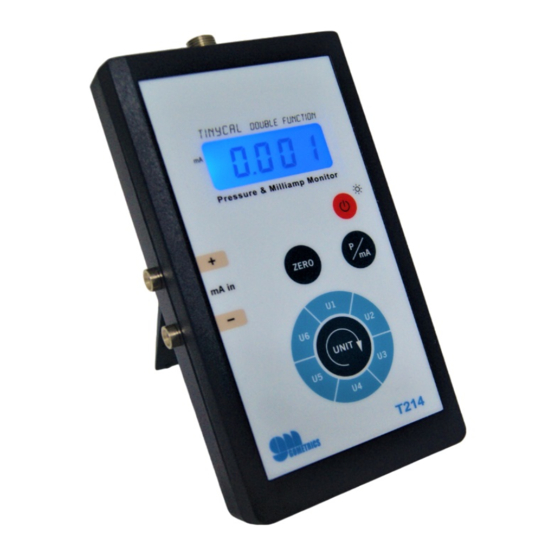

T214
Digital manometer
USER'S MANUAL
Reference: MI-T214-11-EN
Release: 1.1
Review:
March 2023
1
Advertisement
Table of Contents
Related Manuals for GOMETRICS T214
Summary of Contents for GOMETRICS T214
- Page 1 © Copyright 2022 Gometrics S.L. Pol. Ind. Riera de Caldes, C/ Basters 17 Palau-solità i Plegamans - 08184 Barcelona Tel Sede Central (+34) 93 8646843 Reference: MI-T214-11-EN Tel Zona Centro (+34) 91 3710042 Release: 1.1 Web: http://www.gometrics.net Review: March 2023...
- Page 2 EC DECLARATION OF CONFORMITY The company: GOMETRICS, S.L. C/Basters, 17 - Polg. Ind. Riera de Caldes 08184 - Palau-Solità i Plegamans (BARCELONA) Telf.: 00 34 938 646 843 - Fax: 00 34 938 648 218 E-Mail: info@gometrics.net http://www.gometrics.net The company declares under its sole responsibility that the device:...
-
Page 3: Table Of Contents
CONTENTS Table of contents Page Contents ....................3 Inspection ....................4 Power supply .................... 5 Portable operation ................... 5 Installation ....................6 Operation ....................6 Operation as manometer ..............7 Operation as milli-Ammeter ..............8 Alternative manometer-milli-ammeter operation ....... -
Page 4: Inspection
INSPECTION The standard instrument is supplied in individual packaging with the following contents: - 1 manometer T214 - 1 9 V rechargeable battery, 250 mAh. Ref. EH6LF22H250 - 1 battery charger, Ref. PS 30 B - 1 set of cables for current measurement. Ref. PN1041 - 1 transport bag, Ref. -
Page 5: Power Supply
POWER SUPPLY The T214 manometer is designed for portable operation using the supplied internal battery. This is supplied fully charged but, if the instrument's display screen does not light up or the LOW BATT message is displayed at switch on, the battery-charging instructions given on page 11 should be followed. -
Page 6: Installation
Insert the battery and close the compartment again. Turn on the red main switch on the front panel and check that the verification sequence is initiated on the screen of the model T214, version V. X.XX and the last units selected on the instrument before it was switched off, after which the screen will display a ZERO reading or one close to it and is then ready for operation. -
Page 7: Operation As Manometer
OPERATION AS MANOMETER Proceed as described below: Check that the T214 does not have the mA reading indicator active, as displayed on the left-hand side of the screen by a small arrow. Otherwise key to change the MANOMETER/MILLI - AMMETER so press the that the mA indicator is deactivated. -
Page 8: Operation As Milli-Ammeter
The following instruction should be followed when using the T214 for current readings in the 0-30 mA range, normally to verify the response of a 4-20 mA pressure transmitter WARNING: The T214 does not include an internal 24 Vdc power supply and must be externally powered. Use the... -
Page 9: Alternative Manometer-Milli-Ammeter Operation
MANOMETER-MILLI-AMMETER ALTERNATIVE OPERATION Once the T214 is ready for operation in accordance with the section seen on this and the previous pages, it can be employed for combined reading of pressure or current by simply using the key on the front panel. -
Page 10: Changing Engineering Units
2.- Release the key when the desired engineering unit is displayed. 3.- Verify the selected unit by briefly pressing the key. The available units are then displayed on the T214 screen, together with their corresponding equivalence. miliBAR mm H cm H... -
Page 11: Quick Access To The Engineering Unit
4.- Repeat previous points 1 to 3 for the remaining quick selection keys, if required. INSTRUMENT MESSAGES The T214 can display the following messages prior to or during operation: LOW BATT: This indicates that the available battery power is below the minimum recommended for the level of reliability and correct operation. -
Page 12: Installation And Use
INSTALLATION AND USE The T214 manometer incorporates a folding support at the rear of the box that permits the instrument to be used in an upright position, which facilitates both use and reading. It is recommended that the instrument be returned to its protective case when not in use. -
Page 13: Input Pressure Adjustment
NOTE: The battery must be removed in order to access the adjustments in its compartment. In this situation the T214 must be powered using the charger/ power supply PS 30 B. INSTRUMENT CALIBRATION The T214 manometer is supplied with a factory calibration certificate. -
Page 14: Technical Specifications
TECHNICAL SPECIFICATIONS Pressure interval: Min: 0-25 mbar (see table) Max: 0-1,000 bar Uncertainty*: 0.25% FS and 0.10% FS Current interval: ± 30 mA Uncertainty*: 0.025 % of the reading + 2 µA Resolution: 4 1/2 digits in pressure (see table) 1 µA / 10 µA in current Connection to process: 1/8-inch BSP M, 60º... - Page 15 Table of existing ranges according to input type Differential Resolution Range Relative Vacuum Combined Absolute pressure Display code reading 025 (4) 0 – 25 -25 / 0 -25 / +25 (*) 0 / +25 – 0.01 070 (4) 0 – 70 -70 / 0 -70 / +70 (*) 0 / +70...
-
Page 16: Accesories
Accesories Pneumatics accesories (máx. 20 bar) Reference Description Connecting tubing with a length of 750 mm and RB400BP11 two extension of 500 mm RB400BP22 Connecting tubing with a length of 750 mm 60º conical connection fitting 1/8" BSP M at both ends RS20012G 60º... - Page 17 Accesories High pressure accesories (from 600 to 1000 bars) Reference Description Up to 600 bars accesories V6006022 Connecting tubing with a lenght of 750 mm x 6 mm 1/4" NPT M High pressure fitting V60014NPT6 1/8" NPT M High pressure fitting V60018NPT6 1/4"...
-
Page 18: Operating Diagram
Operating diagram manometer Tinycal T214 Manometer Pressure gauge 0000 T214 for calibration 4 - 20 mA Electronic pressure transmitter for calibration Pressure pump BP102G 0000 Manometer T214 Pressure pump BP102G 4 - 20 mA 0000 Manometer T214 Electronic pressure transmitter... - Page 19 NOTES...
- Page 20 A reasonable effort has been taken with respect to the accuracy of the information in this manual. Gometrics shall not be held responsible for any typographical errors or for the information contained in this manual.
