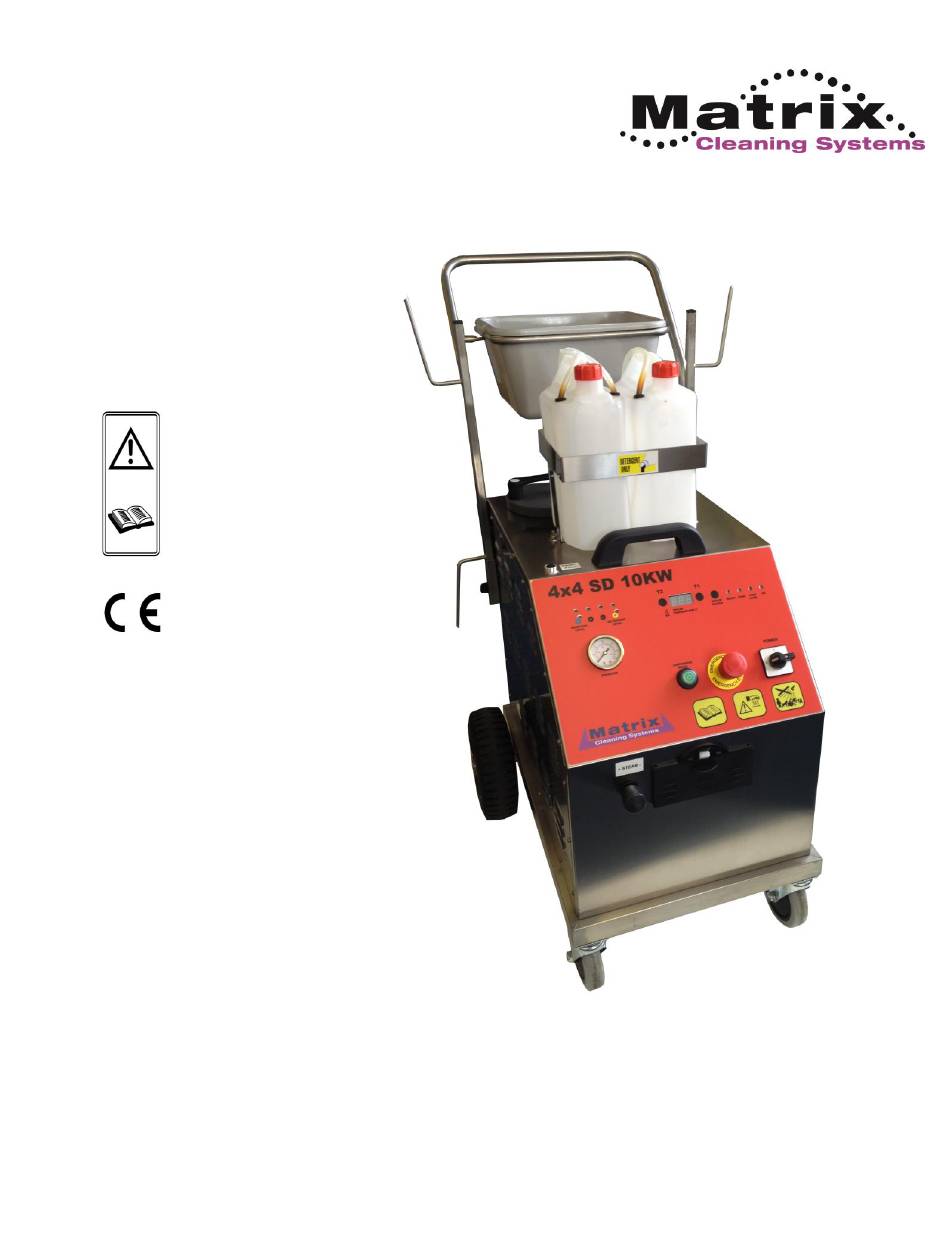

- Page 1 4x4SD10KW User Instructions Steam & Detergent 10 Bar...
- Page 2 Warning Do not operate this appliance before reading and understanding these instructions. Always keep the instructions attached to the appliance or readily available at the appliance storage site. Serial Number Label Modified August 2013...
- Page 3 CONTENTS Introduction page 2 Description page 2 Safety warnings page 3 Technical specifications page 4 Instructions for use page 5 Accessories page 10 Maintenance page 13 Troubleshooting page 15 INTRODUCTION ATTENTION! Before performing any operation with the machine, carefully read this manual.
- Page 4 SAFETY WARNINGS The manufacturer declines all liability for: 1. Incorrect use of the machine or use for purposes other than those for which it has been designed. 2. All modifications made without manufacturer authorization. 3. Replacement of original parts with parts produced by other manufacturers. 4.
- Page 5 TECHNICAL SPECIFICATIONS 4x4SD10KW Maximum Pressure 10BAR Maximum Temperature 180°C Max. Steam Output Dry 13,2lt./hour – 220gr./min. Max. Steam Output Wet 18lt./hour – 300gr./min. Water Tank Volume 20lt./Stainless Steel Internal Electric Heating Power 9000 Watt (16 Amp 3P) Boiler Volume 4,5lt.
- Page 6 INSTRUCTIONS FOR USE CAUTION The machine is supplied with a power supply cable suitable for its absorption. Check that the electrical system on site complies with the current national regulations. This instruction manual may include information about functions or accessories which are not part of the product you have purchased.
- Page 7 Pic. 2 Boiler Control Panel Pic. 3 Wet Steam/Detergent Panel Pic. 4 Top Inlet Water Tank D. 160mm Pic. 5 Hand-grip...
- Page 8 MACHINE START : Steam only function : Connect the machine to the electrical mains. Turn the mains switch 1 (Pic. 1) to the ON position. LED 2.8 goes on to signal that the machine receives voltage. Remove the water tank cover 9.1 (Pic. 4) and fill the tank 9 with plain tap water until LED 9.2 lights up, this is possible only if the machine is turned on, or you see that the tank is full.
- Page 9 To use the detergent feature press the yellow button 3.3 (pic. 3). First fill one or both of the external canister on top of the machine with 5 liters of water and detergent and make sure that the transparent hose is connected properly to the chassis. You have 2 canisters available which you can fill as required for a total of 10lt.
- Page 10 ATTENTION! Pressure of water supply for the continuous refill must not be greater than 16 or less than 0,1 Bar. WARNING! Never push the green button if the machine is not connected to the water hose. This would cause water to flow out of the tank and onto the floor. When done working, turn the green button 5 OFF and disconnect the water hose.
- Page 11 For suction, press and release micro-switch 11.3 on the hose-grip. Press once to switch ON, and a second time to switch OFF. The detergent/hot water function is enabled by persistently pressing micro-switch 11.2 Follow the instructions above as for steam only! and release to stop.
- Page 12 KIT0815/I 3 ROUND BRUSH STAINLESS BRISTLES KIT0815/N 3 ROUND BRUSH NYLON BRISTLES KIT0815/O 3 ROUND BRUSH BRASS BRISTLES KIT0816/I 2 SMALL ROUND BRUSH STAINLESS BRISTLES KIT0816/N 2 SMALL ROUND BRUSH NYLON BRISTLES KIT0816/O 2 SMALL ROUND BRUSH STAINLESS BRISTLES KIT0020 SAFETY GLOVES KIT0021 SAFETY GLASSES...
- Page 13 MAINTENANCE ATTENTION! Maintenance should be done every 6 to 12 months or more often if used very heavily and/or if the water is very hard. Make arrangements with your dealer or distributor for professional maintenance and assistance. The amount of carbonates in the water (chalk, salts and other minerals) determine the hardness of the water you use with this machine.
- Page 14 CAUTION Check for any water leaks from the plug below the machine and tighten the plug if necessary. ATTENTION! At regular intervals of 6 month the internal water filter should be cleaned and anti-calcification filter exchanged. This filter inhibits the aggregation of calcium into a crust leaving the calcium particles present in the water to deposit at the bottom of the boiler and to be removed as above described.
- Page 16 Manufactured in the UK to the highest quality standard by: Leyland Business Park, Centurion Way, Farington Leyland Preston PR25 3GR Tel: 0044 (0) 1772 431906 Fax: 0044 (0) 1772 431902 E-mail: info@matrixcleaningsystems.co.uk...
