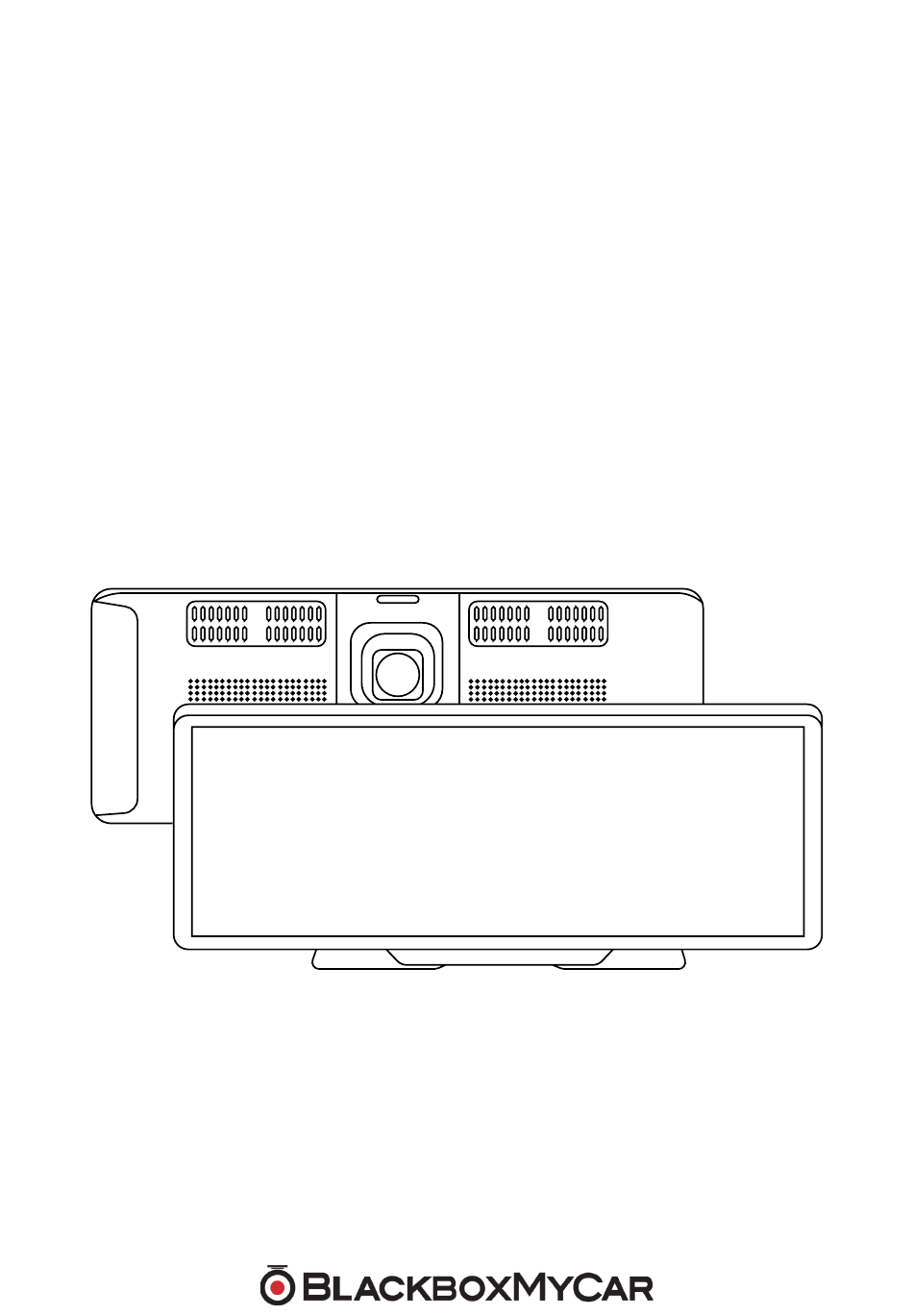

Page 1 BlackboxMyCar SmartDrive 10” Wireless Auto Display Product Manual...
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction 2. What’s Included 3. Product Specifications 4. Micro SD Cards 5. Wiring 6. Rear Camera Installation 7. User Interface Overview 8. Connectivity 9. Settings 10. Troubleshooting Guide 11. Support...
Page 3: Introduction
Connect your devices wirelessly over Wi-Fi and Bluetooth to enjoy hands-free calling, web access, and streaming entertainment apps. Whether you’re listening to music or making essential phone calls, the BlackboxMyCar SmartDrive 10” Wireless Auto Display keeps you in contact while keeping your hands on the wheel.
Page 4: Product Specifications
3. Product Specifications Display 10” 1600*600 Touch IPS Screen Front Camera Full HD (1920* 1080P) @ 25 FPS Rear Camera Full HD (1920* 1080P) @ 25 FPS with AI Motion Sensor G-Sensor 3-Axis Allwinner V535 Cortex-A7 @ 1GHz Software Linux Connectivity Apple CarPlay, Android Auto Wi-Fi...
Page 5: Micro Sd Cards
Toshiba, or Samsung with a minimum Class 10 speed certification, from 32GB up to 256GB. 5. Wiring Instructions To power up the BlackboxMyCar SmartDrive 10” Wireless Auto Display using a 12V charger, please do the following procedures: 1. Mount the BlackboxMyCar SmartDrive 10” Wireless Auto Display in your vehicle. It will normally it on your dashboard, with the included adhesives.
Page 6: Rear Camera Installation
6. Rear Camera Installation To install the BlackboxMyCar SmartDrive 10” Wireless Auto Display’s rear camera, please follow these procedures: 1. Choose a suitable location for the rear camera on the rear bumper or license plate area. Mounting to the top of the interior of the rear windshield is possible with adhesive, but the viewing angle will make using it for reversing challenging.
Page 7 Audio Output Options This setting allows you to choose different audio output modes. Depending on your preferences and the capabilities of your vehicle’s audio system, you can select modes like Speaker, Carplay/Auto (which routes audio through the CarPlay or Android Auto interface), FM (radio), or AUX (auxiliary input).
Page 8 8. Apple CarPlay & Android Auto Connectivity How to Setup Apple CarPlay Connection 1. Start by clicking “Carplay” in Settings to switch to Carplay mode. 2. For initial connection, ensure that Bluetooth and Wi-Fi are enabled on your iPhone. 3. Connect to the unit’s Bluetooth and wait for 5-10 seconds. Your mobile phone will display a prompt to use CarPlay in your vehicle.
Page 9: Settings
9. Settings You can also access the settings menu of the BlackboxMyCar SmartDrive 10” Wireless Auto Display to customize various functions: Playback Settings This allows you to configure video playback-related settings. You can set video resolution (such as 2.5K, 1080p, 720p) and loop recording settings (e.g., duration of video loops, overwriting old footage).
Page 10 Driving Position Settings Choose your preferred driving position orientation, which may be left or right rudder depending on the region. This setting ensures the interface aligns with your driving perspective. Screen Rotation Settings If needed, you can rotate the screen content by 180 degrees. This can be useful if the unit is installed in a way that requires an inverted display.
Page 11: Troubleshooting Guide
10. Troubleshooting Guide Q: The unit does not power on or display anything. A: Please ensure that the unit is securely connected to the vehicle’s power source. You may also check the 12V charger and cable for any damage or loose connections. Make sure that the vehicle’s ignition is turned on.
Page 12: Support
Simply access the factory reset option in the settings menu and reset all settings to their original state. 11. Support If you’ve tried the above solutions and continue to experience issues, please contact BlackboxMyCar’s customer support team for further assistance. We’re happy to help! Email: info@blackboxmycar.com Live chat: blackboxmycar.com...
