Summary of Contents for Kentek ACM-AUTO

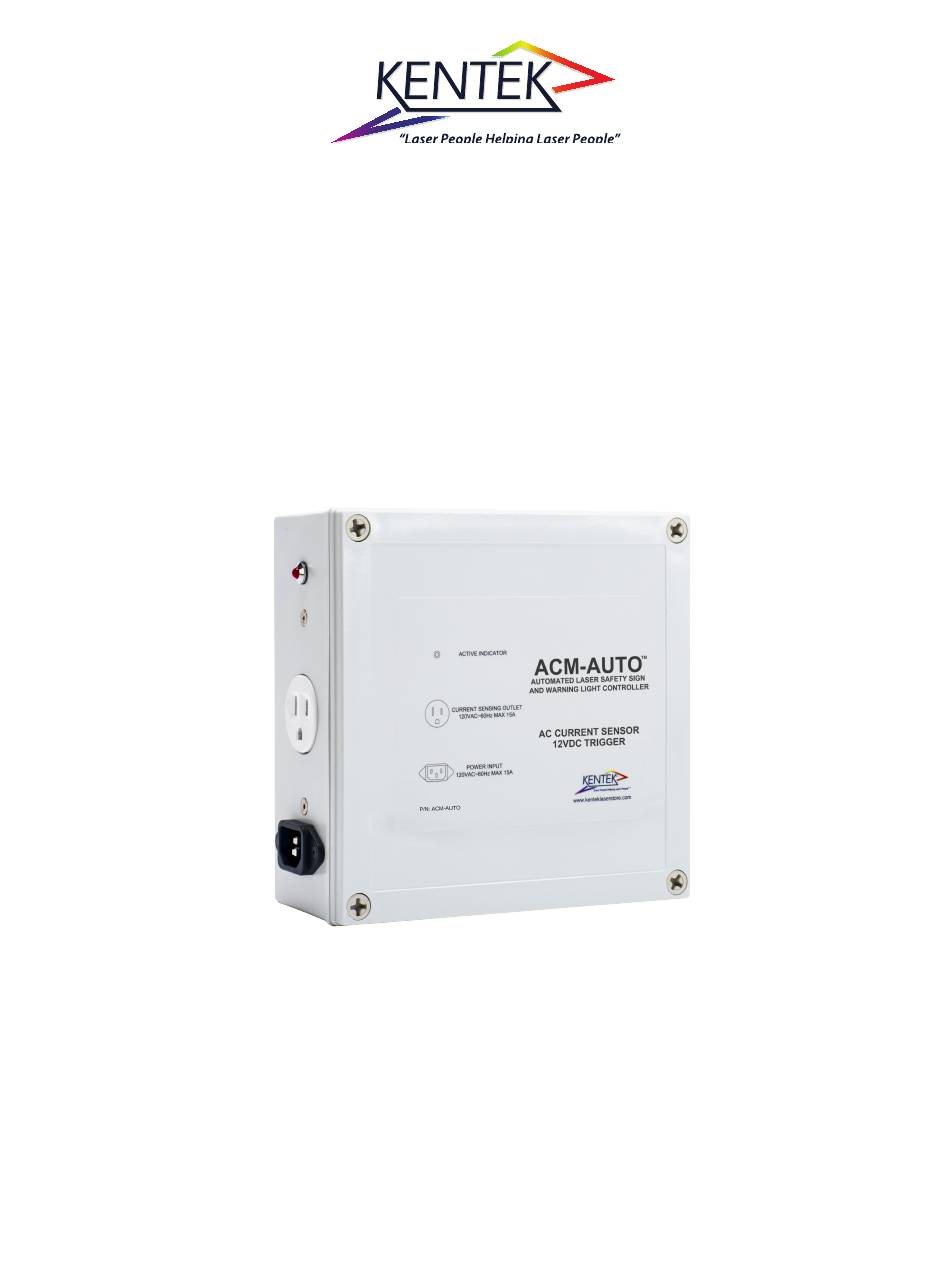

- Page 1 ACM-AUTO™ OPERATION MANUAL Automated Laser Safety Sign Controller...
- Page 2 TABLE OF CONTENTS Rev. 0823 INTRODUCTION ......................3 SPECIFICATIONS ......................3 INSTALLATION ......................4 DEVICE LAYOUT ......................4 SAFETY INSTRUCTIONS ................... 5...

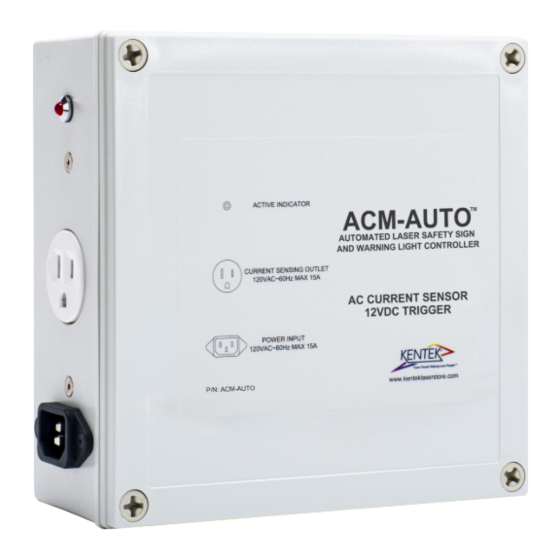

- Page 3 The Kentek Automated Laser Safety Sign Controller (ACM-AUTO™) allows automatic control of one 12VDC powered device triggered by the ampere draw of the laser. Simply plug the laser into the ACM-AUTO™ and connect its output to the 12VDC powered device(s), e.g., a warning sign. The minimum ampere draw required to trigger the ACM-AUTO™ is 0.08 amps, and the maximum is 15 amps.
- Page 4 INSTALLATION The housing can be wall-mounted, bracket-mounted, or positioned free standing on a table top. DEVICE LAYOUT AUTOMATED CONTROL MEASURES...
- Page 5 SAFETY INSTRUCTIONS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the device that may be of sufficient magnitude to constitute a risk of electric shock to persons.
- Page 6 5 Jarado Way • Boscawen, NH 03303 1.800.432.2323 kenteklaserstore.com...
