- Page 1 MANUAL...
- Page 2 - Please read this manual carefully before using the product. Please keep the product instructions for future reference. - The entire contents of this User's Guide are written by CaddyTalk and cannot be reproduced, transmitted, recorded, or stored in a search system in any form or by any means without prior permission, and it cannot be translated into any other language.
-
Page 3: Package Includes
PACKAGE INCLUDES Box Package CaddyTalk CUBE Carrying Pouch USB-C Type Microfiber Quick Start Cable Cloth Guide... - Page 4 DESCRIPTIONS Power and Measurement Button Objective Lens (6X lens) Laser Aperture SET-UP Mode, Caddy Mode (Battery Indicator) Mode Button (Set-Up, Brightness Control Mode, Caddy Mode, M or Y shift) Mode Indicator Light Focus Ring View Finder Battery Component...
-
Page 5: Lcd Description
LCD DESCRIPTION E-Slope Distance Unit (Meter / Yard) Caddy Mode M-Slope Low Battery Mark Slope-Adjusted Distance Targeting Crosshair Straight Line Distance / Active Laser Slope Angle... -
Page 6: Power & Measurement
POWER & MEASUREMENT Press the power button and aim at the target. Press the power button again to start measuring distance. Enable Display. Press the power button and align the crosshair with target. Straight line distance is Slope-adjusted distance is displayed. - Page 7 Actual straight distance The M-Slope is developed directly in the golf zone by applying the concept of ballistics. CaddyTalk’s Magic Slope provides higher accuracy of recommended distances compared to existing rangefinders. See the differences in ballistics between CaddyTalk and other generic products.
- Page 8 E-SLOPE (ENVIRONMENTAL SLOPE) Integrating the M-Slope Function, E-Slope calculates the environmental factors (temperature, altitude, humidity) of the golf course to the deliver the most accurate measurement. High-level golf courses require adjustment of the target distance Example due to air pressure that is lower than low-lying golf courses. If the measured distance to the pin is the same as 127M E-Slope Distance...
- Page 9 CADDY MODE CaddyTalk’s 1st-to-market technology allows you to easily select the right club by measuring the distance from the golf ball to the target (in the cart or gallery area) and giving you the recommended distance. CASE With power on, press the mode button once to activate Caddy Mode.
- Page 10 STEP 1. MEASURE THE DISTANCE BETWEEN THE USER AND THE BALL CUBE USER ※ You can use this function to select a recommended club from the cart in advance. You can also measure the distance from your companion to the target.
- Page 11 The Caddy Mode function was implemented by utilizing a gyroscope sensor of the CaddyTalk CUBE. Due to the nature of the sensor, the origin may be distorted by the surrounding environment (i.e. magnetic field, temperature, etc.). If the different of the measured distance is great, reset the sensor.
- Page 12 PIN FINDER Hold the measurement button while you scan the viewfinder left and right, Only the distance to the nearest target of the scanned target is displayed. JOLT When the correct distance is displayed after pressing the measurement button, the completion of measurement will be notified through vibration alert. ※...
-
Page 13: Measurement Unit Setting
MEASUREMENT UNIT SETTING ① Power On ② Press the MODE button twice to alternate Meter to Yard and vice versa. Press 2 times Meter (M) Yard (Yd) SLOPE MODE E-Slope M-Slope Non-Slope (Pro) Hold the MODE button Press Power button to Press for 2 seconds to on the bottom for 2 seconds alternate between... - Page 14 BRIGHTNESS ADJUSTMENGT Turn the power on. Press the mode button for 2 seconds to activate the Set-Up Mode. Press the mode button once more to adjust the brightness. Use the power button to adjust the brightness from Level 1 to 3. Mode button Mode button Use the power...

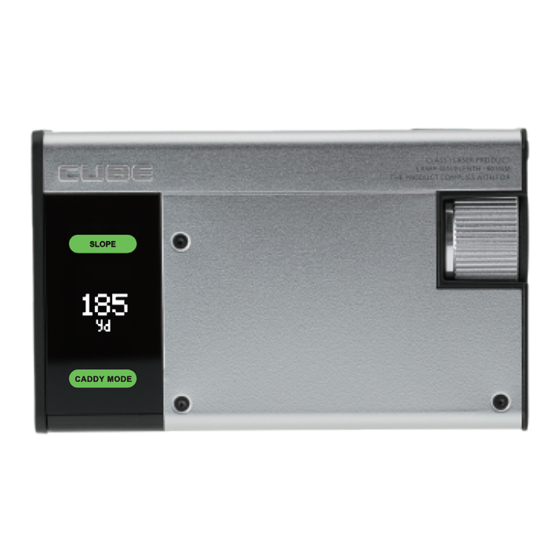

- Page 15 SIDE PANEL LCD DISPLAY Shows SLOPE MODE / Target Distance / CADDY MODE through the external LCD on the right side of the product Slope Indicator 1) Target Distance 2) Charging level displayed when charging CADDY MODE Indicator SLOPE SLOPE SLOPE E-Slope M-Slope...
- Page 16 BATTERY LEVEL / CHARGING If the battery level is less than 20%, the JOLT function will not be activated. Low Battery mark indicating less than 20% level. ① Open the protection cover ② Plug in the charging cable to start charging (5V, 2A charger recommended, C-type cable included) ③...
-
Page 17: Specification
Approx. 10,000 times actuations (Full Cahrge) Laser Classify CLASS 1 Color Retro Silver Water Resistance IP55 Package Includes CaddyTalk CUBE, Pouch, USB cable, User Guide, Microfiber Cloth Manufacturer RNDUS CO., LTD. / Designed and Patented by Korea, Made in China Support info@caddytalkusa.com Web Site http://caddytalkusa.com... - Page 18 SAFETY WARNING CARE AND MAINTENANCE Please read the manual carefully before using the device. Avoid touching the lens with your hands to protect it from foreign substances. Do not disassemble or repair the product arbitrarily. Wipe the lens and viewfinder with a soft, clean cloth when foreign substances are present.
- Page 21 The Caddy Mode function was implemented by utilizing a gyroscope sensor of the CaddyTalk CUBE. Due to the nature of the sensor, the origin may be distorted by the surrounding environment (i.e. magnetic field, temperature, etc.). If the different of the measured distance is great, reset the sensor.
- Page 22 The Caddy Mode function was implemented by utilizing a gyroscope sensor of the CaddyTalk CUBE. Due to the nature of the sensor, the origin may be distorted by the surrounding environment (i.e. magnetic field, temperature, etc.). If the different of the measured distance is great, reset the sensor.
- Page 23 The Caddy Mode function was implemented by utilizing a gyroscope sensor of the CaddyTalk CUBE. Due to the nature of the sensor, the origin may be distorted by the surrounding environment (i.e. magnetic field, temperature, etc.). If the different of the measured distance is great, reset the sensor.
