Summary of Contents for Sinotint SC06

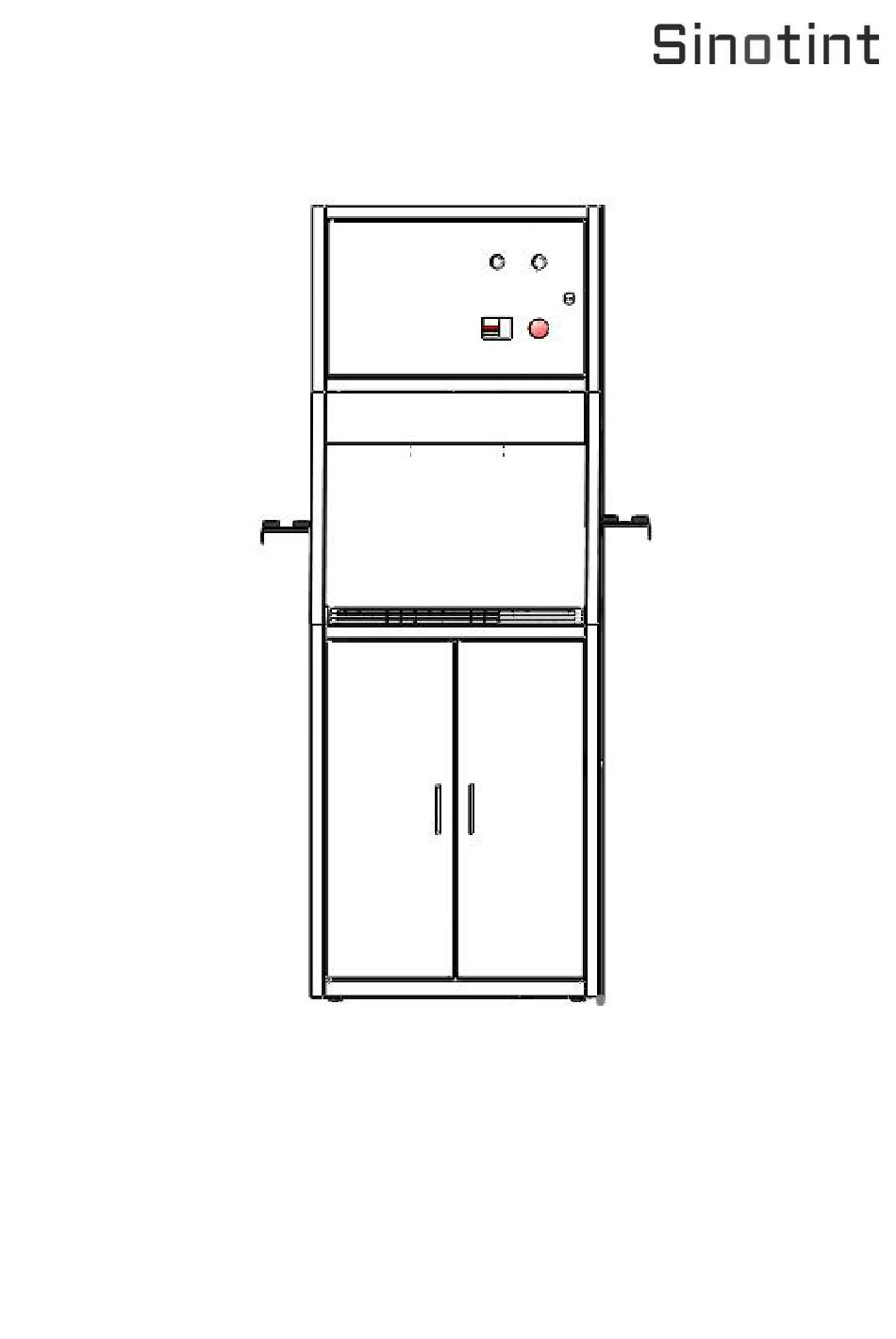

- Page 1 SC06 Water Curtain Cabinet User Guide Ple as e read the manu al bef ore us i ng .
-
Page 2: Table Of Contents
ZHENGZHOU SANHUI MACHINERY & EQUIPMENT CO.,LTD. OPERATION MANUAL/说明书 Contents ......................1 Introduction ：......................1 Precaution .....................1 Product Specifications ..................2 Electrical Principle Chart ......................2 Installation ......................4 Test Running ......................4 Maintenance ....................5 Trouble Shooting... -
Page 3: Introduction
Though products specifications are diversified, installation and operation method are basically similar, so we only illustrate for a general structure cabinet. SINOTINT reserves the right to improve and update products, and the information in the manual is subject to change without additional notice. -
Page 4: Electrical Principle Chart
ZHENGZHOU SANHUI MACHINERY & EQUIPMENT CO.,LTD. OPERATION MANUAL/说明书 Electrical Electrical Principle Principle Chart Chart 4.1 Electrical Principle Chart Socket Installation Installation Open the carton box, check the articles and quantity inside according to the packing list. Take out tools and accessories, then install the machine following the manual. Remarks: pictures shows in the manual are of standard equipment, if different, install the spare parts in the corresponding place. - Page 5 ZHENGZHOU SANHUI MACHINERY & EQUIPMENT CO.,LTD. OPERATION MANUAL/说明书 5.2 Open the top air outlet and connect it to the outside or to the main exhaust gas treatment pipe. Air outlet duct 5.3 Fill the tank with 2/3 water, then place the paint spray rack. paint spray rack Fill with water...
-
Page 6: Test Running
ZHENGZHOU SANHUI MACHINERY & EQUIPMENT CO.,LTD. OPERATION MANUAL/说明书 5.4 Fix the spray gun holder on the side. take out the air filter replace with a new one Fix with M4*12 screws Test running Test running 1. Connect the power supply and air source. 2. -
Page 7: Trouble Shooting
ZHENGZHOU SANHUI MACHINERY & EQUIPMENT CO.,LTD. OPERATION MANUAL/说明书 Trouble Trouble shooting shooting Troubles Shooting Symptoms Causation Check the socket and the power cord, make sure that there is power No power supply supply. Miniature circuit breaker switched Switch on the miniature circuit breaker. Measure if the voltage is located within 220V ±8%;... - Page 8 Henan Sanhui Technology Co., Ltd. A10, 2F,Building 4, No.206, West 4th Ring Rd, HI-NEW Tech Zone, Zhengzhou,Henan, P.R.China TEL：86-371-67575169 FAX：86-371-61107058 Website：www.sinotint.cn...
