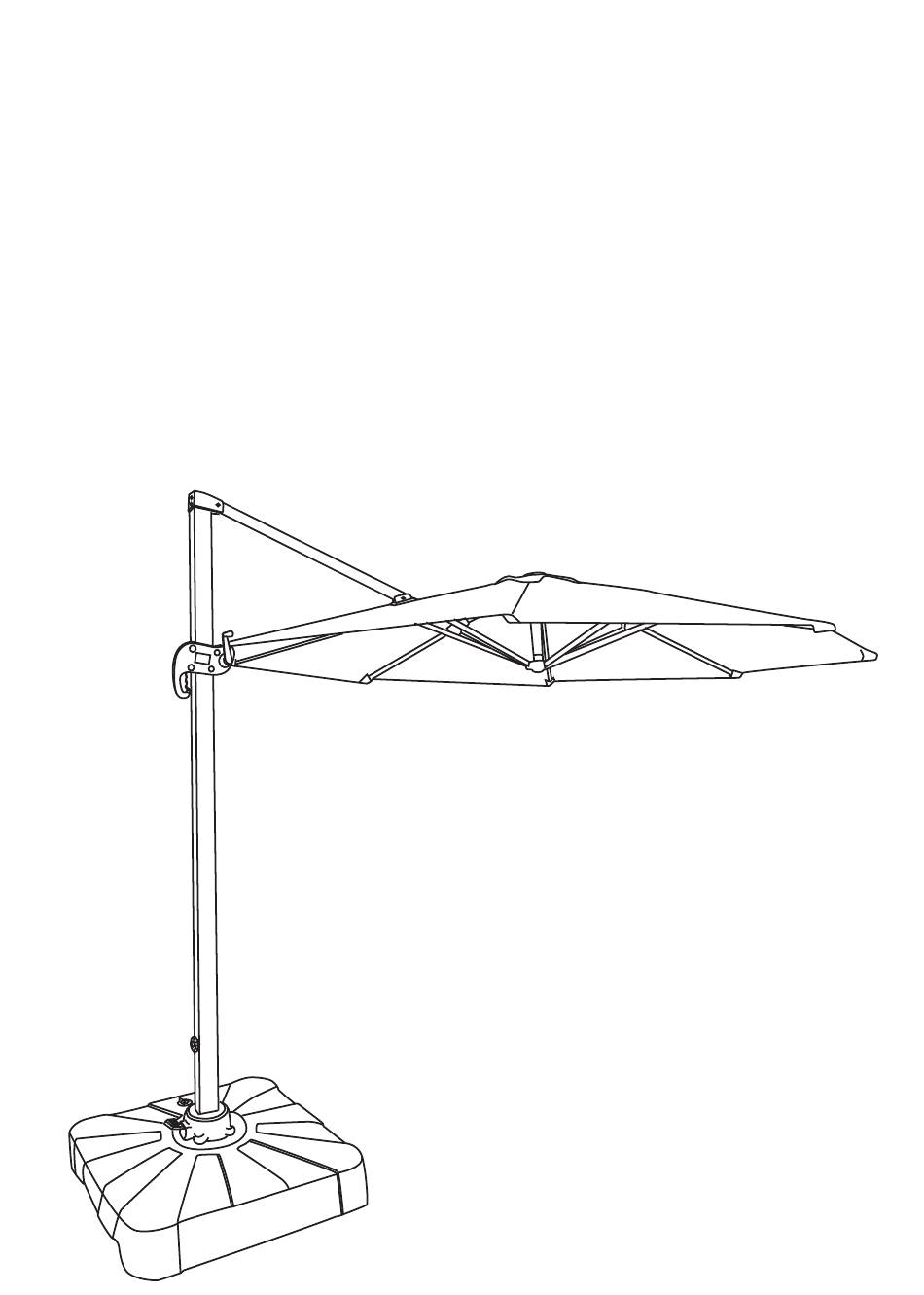

11 Foot ALUMINUM
OFFSET UMBRELLA WITH STAND
ARTICLE# SM350NY - Navy Blue
ASSEMBLY INSTRUCTIONS
SM350RD - Red
SM350SD - Sandy
This is a very top quality
umbrella with very good
quality fabric with no color
fastness for over 3 years.
Please do not return the item.
For any questions about this
umbrella, Please do not hesitate
to contact us at below email:
savingmall@163.com
We will be alway here to
help you on this umbrella.
Advertisement
Table of Contents
Summary of Contents for Savin SM350NY
- Page 1 11 Foot ALUMINUM OFFSET UMBRELLA WITH STAND ARTICLE# SM350NY - Navy Blue SM350RD - Red SM350SD - Sandy ASSEMBLY INSTRUCTIONS This is a very top quality umbrella with very good quality fabric with no color fastness for over 3 years.
-
Page 2: Package Contents
PACKAGE CONTENTS A – (1) Main Umbrella B – (1) Plastic Water Fillable Stand C – (1) Swivel Mechanism D – (1) Base Pole E – (1) Swivel Cover F – (1) Allen Wrench G1 – (4) Stainless Bolt ( M8 x 0.7IN) G2 –... - Page 3 ASSEMBLY INSTRUCTIONS Carefully check all packaging materials before discarding. Do not assemble if there are missing pieces. Step 1 Place the stand (part B) on a level ground where you intend to locate your umbrella. Open the cap on the top of the stand and fill the stand with water . Then tighten the cap.
- Page 4 Step 3 Attach the Base Pole (part D) on top of the Swivel Mechanism (part C) with shorter bolts (part G2), washers (part H) and Allen wrench (part F). Step 4 Place the Swivel Cover (part E) over the Base Pole (part D) . side A Locking hole +/- 1.6”...
-
Page 5: Important Notice
Step 5 Place the Main Umbrella (Part A) on top of the Base Pole (Part D). Important Notice : Before Step 5, make sure the locking hole on the Main Umbrella (part A) and the locking hole on the Base Pole (part D) are on the same side. Locking hole Locking hole... - Page 6 Step 6 Insert the Crank Handle (part J) into the square hole on the Main Umbrella (part A). Screw the Threaded Knob (part I) into the locking hole on the Main Umbrella (part A). ATTENTION: MAKE SURE ALL BOLTS AND SCREWS ARE FULLY TIGHTENED BEFORE USING THE UMBRELLA.
- Page 7 Step 7 Squeezing the trigger before attempting to raise the crank house. Turn the Crank handle clockwise to extend the umbrella fully .
- Page 8 Step 8 The umbrella has 6 position holes on the main pole to lock the cano...
- Page 9 Step 9 Squeezing the trigger before attempting to lower the crank house. Turn the Crank handle counter-clockwise to close the umbrella. Step 10 This umbrella has a 360 degree swivel mechanism . Before attempting to turn the umbrella, close the umbrella first and squeeze down the lever with your foot to release the mechanism.
- Page 10 Step 11 When not in use, place Umbrella Cover (Parts K) over the umbrella Please contact us at savingmall@163.com for any questions about this umbrella.
