FEATURES

Ø
Compact design, only 22,5 mm
wide
Ø
Clips onto top-hat DIN rail
Ø
Plug-in screw terminals or
spring-clamp connectors
Ø
Dual-line LC display with addi-
tional display elements
Ø
Process values always in view
Ø
Convenient 3-key operation
Ø
Direct communication between
rail-mounted transmitters
Ø
Universal input with high signal
resolution (>15 bits) - also re-
duces stock keeping
Ø
Universal output with high reso-
lution (14 bits) as combined volt-
age/current output
Ø
Quick response; only 100 ms cy-
cle time, i.e. also suitable for fast
signals
Ø
One or two relay outputs
Ø
Customer-specific linearization
Ø
Measurement value correction
(offset or 2-point)
Ø
Min/max indicator ('slave
pointer')
Ø
Logical linking of digital outputs,
e.g. for common alarms
Ø
Preset for output value

APPLICATIONS

±
Measurement, scaling, and sepa-
ration of electrical signals, e.g.
for:
±
Heat treatment plants
±
Drying equipment
±
Furnace builders
±
Metallurgy
±
Kilns
±
General machine building
±
Research and development
±
etc.

DESCRIPTION

UNIFLEX CI 45 transmitters are desig-
ned to give precise and cost-effective
signal detection and processing tasks.
Every CI 45 has at least one universal
input, one universal output and a relay.
Optionally, the transmitter can be fit-
ted with an additional relay.
Galvanic isolation is provided between
Inputs and outputs as well as from the
supply voltage and the communication
interfaces.

Mounting

The compact CI 45 is clipped onto a
top-hat DIN rail, and can also be un-
mounted very simply.

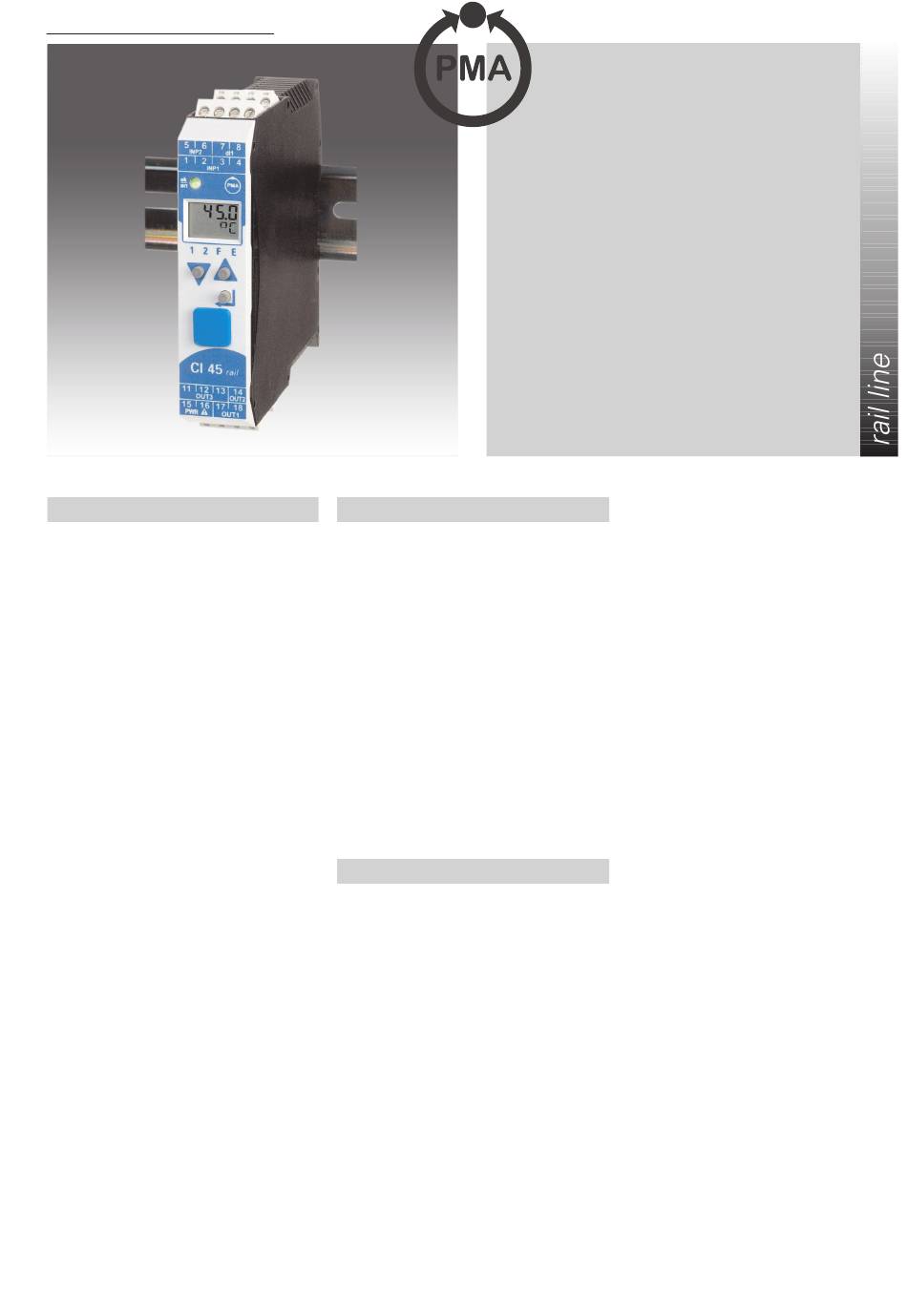

UNIFLEX CI 45
Universal transmitter
Compact design
Display & operating functions
Communication features
High resolution
Fast cycle times
Universal input & universal output
Two relay outputs
Customer-specific linearization
Measurement value correction
Min/max indicator ('slave pointer')
All connections are of the plug-in type,
so that a transmitter can be replaced
very quickly without disturbing the wi-
ring.
Display And Operation
The two-line LC display permits simul-
taneous indication of the measured va-
lue and all of the unit's operating
Functions.
Moreover, a LED and 4 other display
elements give a reliable indication of
operating status, operating mode, and
error messages.
The user-configurable engineering unit
of the measured value can be included
in the display. By means of the exten-
ded Operating Level, it is possible to
show any signal or parameter in the
2nd display line.

Interfaces and Engineering Tools

The transmitter settings are also confi-
gurable by means of an Engineering
Tool.
Via the BlueControl ® software, inclu-
ding the transmitter simulation and
especially the convenient connection
via the BluePort ® front interface, the
user can solve the task in hand wit-
hout having to work through operating
instructions.
Of course, practically all settings can
also be made from the device front.
