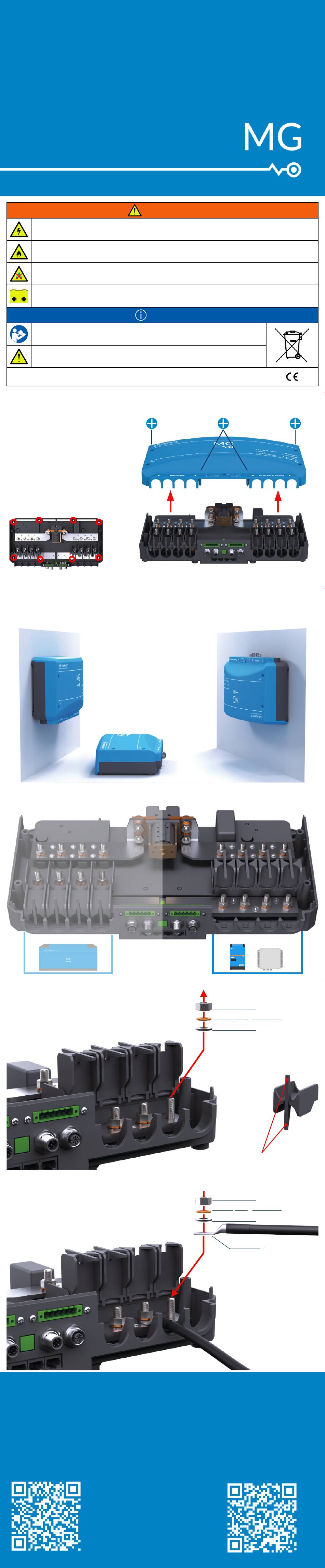

MG Master LV Quick Installation Manual

Quick Installation Guide
Master LV
CAUTION: Risk of electric shock
Use proper tools and personal protection
Don't crush, heat, incinerate, short-circuit, dismantle or immerse in any liquid
It may vent, rupture and burn
Make sure the MG Master LV is placed in a dry area, without moisture IP22
Use this MG Master LV only in combination with a MG batteries
BMS
Always respect charge instructions
Read and fully understand the manual before installation and use
This product may only be installed by a qualified electrical engineer
This BMS is tested according to and complies with the IEC 62619 and IEC 62620
Remove the top cover
1
/9
Mounting Holes
Placement
Mount vertically (recommended) or horizontally
✓
Connect the cables for the chargers and loads
Batteries
Remove from negative bolt:
2
/9
Place on negative bolt:
3
/9
Thank you for ordering this MG product
What's in the box:
- MG Master LV
- 2x io-connector
- 2x terminator
- Quick Installation Guide
Download Center
https://downloads.mgenergysystems.eu/masterlv/
WARNING
NOTICE
Scan the QR-code for:
- Manual
- Installation movie
- Technical Drawings
PH2
✘
✓
Required installation tools (isolated):
- Phillips screwdriver PH1 + PH2
- Torque wrench M8
PH1
Chargers & Loads
MultiPlus-II
charger inverter
M8 Nut
Spring Washer
Washer
Break off
M8 Nut*
Spring Washer
Washer
Cable Lug
*Tighten nut
with 10 Nm
Technical Specifications
PH2
