Aerosmith ST4200 Instruction Manual

Cold formed steel tool
Hide thumbs

Advertisement

Quick Links

Download this manual

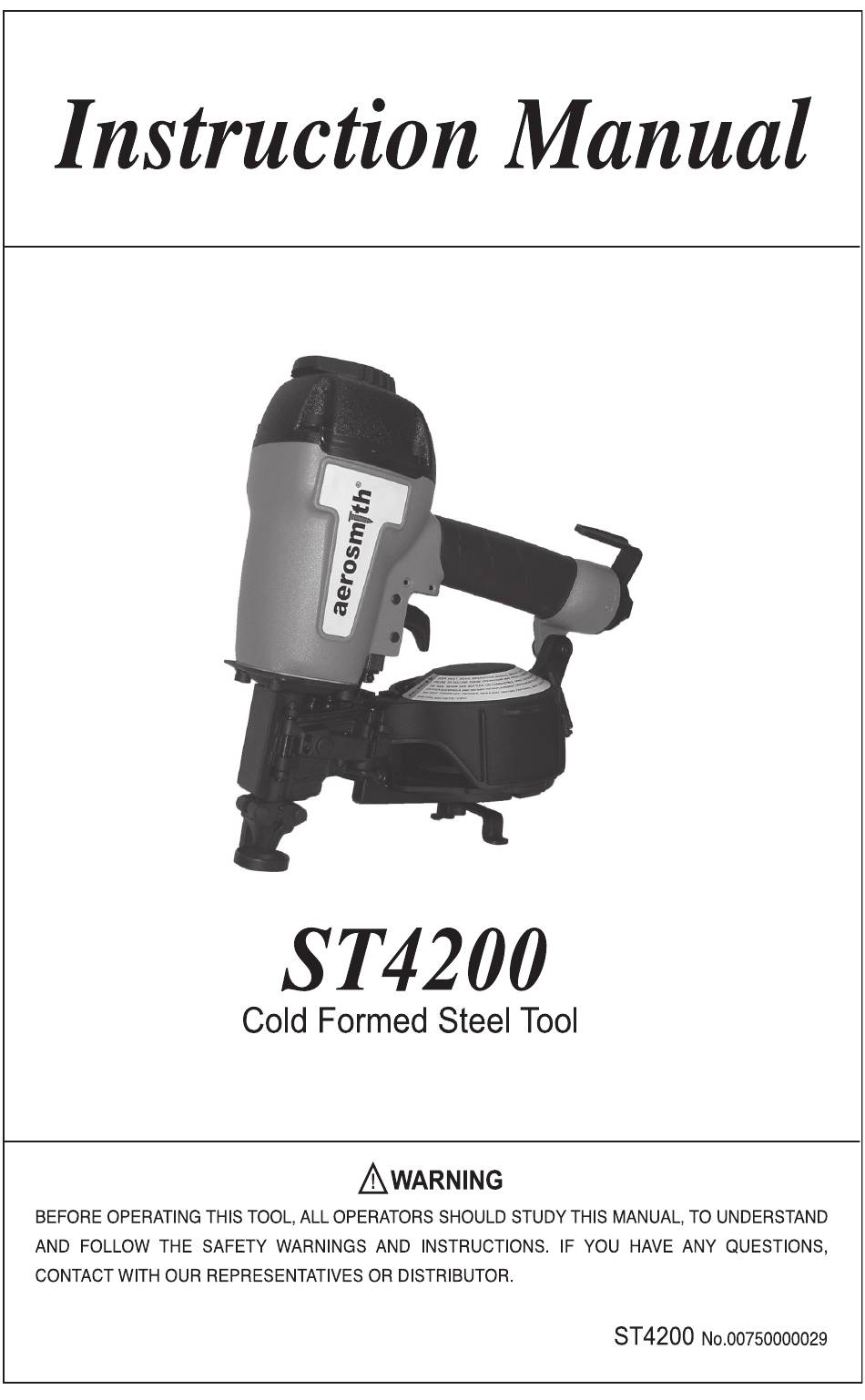

Instruction Manual
ST4200
Cold Formed Steel Tool
&_WARNING
BEFORE OPERATING THIS
TOOL,
ALL OPERATORS SHOULD STUDY THIS MANUAL, TO UNDERSTAND
AND FOLLOW THE SAFETY WARNINGS AND
INSTRUCTIONS.
IF YOU HAVE ANY QUESTIONS,
CONTACT WITH OUR REPRESENTATIVES OR DISTRIBUTOR.
ST 4200
No.001sooooo29

Advertisement

loading
Need help?

Need help?

Do you have a question about the ST4200 and is the answer not in the manual?

Questions and answers

Related Manuals for Aerosmith ST4200

Summary of Contents for Aerosmith ST4200

  • Page 3: Tool Specifications

    11-1/4” (285 mm) 4-2/5” (112.2 mm) 9-1/2” (241.5mm) 5.39 lbs. (2.45 kgs) Exhaust Deflector Guide Cover Trigger Nose Magazine Assembly Door Latch...

  • Page 4: Safety Instructions

    Read this manual and understand all instructions before operating the tool. If you have any questions, please contact our authorized representatives . Danger to the eyes always exists due to the possibility of dust, debris or fasteners flying up due to improper handling of the tool. For these reasons safety glasses or goggles should always be worn when operating the tool.
  • Page 5 Use Correct Fittings. The connector on the tool must not hold pressure when air supply is disconnected. If the wrong fitting is used, the tool can remain charged with air after disconnecting and thus will be able to drive a fastener even after the air line is disconnected, possibly causing injury.
  • Page 6 • Never use the body of the tool or top cap as a hammer. Always use the tool for its intended use. Do not discharge fasteners into concret e, st one, or any mat erial t oo hard for t he fast ener to penetrate.

  • Page 8: Operating The Tool

    Bump Fire Trigger (Black Color) • To be used in applications where high production work is preferred. • Precaution must be taken when using this style because unintentional firing can occur if trigger is pulled and the safety is pushed down. 1.
  • Page 9 TEST OPERATION 1. Adjust the air pressure at 80 p.s.i. (5.5 bar) and connect the air supply. 2. Without touching the trigger, depress the contact arm against the work-piece. Pull the trigger. (The tool must fire the fastener.) 3. With the tool off the work-piece, pull the trigger. Then depress the contact arm against the work-piece.
  • Page 10 Always use Aerosmith Brand fasteners in the tool. Applications • Fastening Gypsumboard to Cold-Formed Steel (68 mils - 43 mils/14ga-18ga/1.9mm-0.08mm) • Fastening Cement Fiber Board to Cold-Formed Steel (68 mils - 43 mils/14ga-18ga/1.9mm-0.08mm) • Fastening plywwod/OSB to Cold-Formed Steel (68 mils - 43 mils/14ga-18ga/1.9mm-0.08mm) •...
