SVC Series
Studiomaster Professional
Automatic Voltage Stabilizer
-
Thank you for purchasing the SMProfessional SVC Series Stabilizer.
-
To ensure optimum performance and safety, please follow this instruction manual carefully.
-
Please retain this manual for future reference.
-
For any complaint, feedback or testimonials please contact our distributor / dealer.
1. General
2. Technical characteristics
3. Working principle
4. Operation instruction

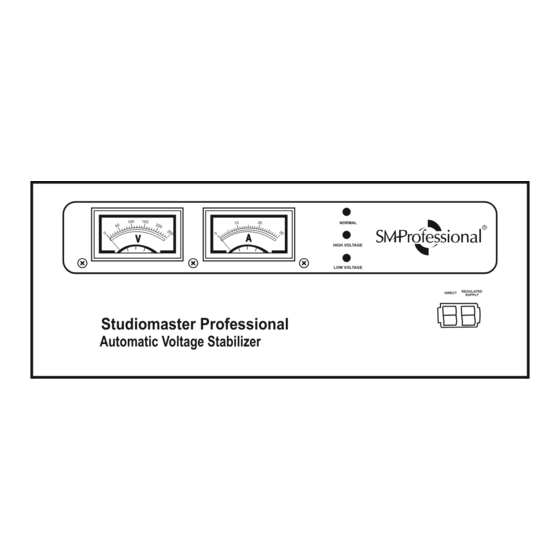

Stabilizers
A
V
NORMAL
HIGH VOLTAGE
LOW VOLTAGE
REGULATED
DIRECT
SUPPLY
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for AUDIOPLUS SMProfessional SVC Series
- Page 1 SUPPLY Studiomaster Professional Automatic Voltage Stabilizer Thank you for purchasing the SMProfessional SVC Series Stabilizer. To ensure optimum performance and safety, please follow this instruction manual carefully. Please retain this manual for future reference. For any complaint, feedback or testimonials please contact our distributor / dealer.
- Page 2 General SVC series high-accuracy full-automatic AC voltage regulators are our leading products, made up of contact voltage regulator, servo motor and automatic control circuit. When the voltage of power network in not stable or when the load changes, the automatic control circuit will sample, amplify and send signal to drive the servo motor to adjust the position of carbon brush of contact voltage regulator, and enable the output voltage to the rated value, to get voltage stabilization finally.
- Page 3 3. Synchronously output 230VAC. SVC-3000VA (single - phase) and below products can output 230V. 4. Directly provide commercial power: SVC - 2000VA (single - phase) and above products include commercial power function; 5. Overload or short - circuit protection: single - phase 1000VA and below products offer fuse to protect against overload or short circuit ;...
- Page 4 Working principle 1. Circuit diagram (see diagram 2~diagram 4) 2. Sampling control principle (see diagram 5) (Note: following diagrams are only for reference, if they are changed partially for improving product, we won't notice separately). Sampling control circuit Output Diagram 2: Circuit diagram of SVC series single-phase 500VA~1.5kVA products Sampling control circuit Diagram 3: Circuit diagram of SVC series single-phase 2kVA~3kVA products...
- Page 6 Wiring Connection Output 230V Input 160-250V Earth Earth Output 230V Input 160-250V Output 230V terminal terminal Diagram 6: Wiring diagram of SVC series single Diagram 7: Wiring diagram of SVC series single -phase 1kVA products -phase 2kVA TO 10kVA. Input 160-250V Output 230V Diagram 8: Wiring diagram of SVC series single -phase 12kVA / 15kVA.
- Page 7 Attentions 1, Please place the voltage regulator in a draughty environment where is no corrosive gas, explosive gas, conductive dust or steam, and the children can't touch it, besides, it mustn't subject to the sunshine or rain. 2. The earth terminal must be firm and reliable to ensure safety. 3.
- Page 8 SVC - S15000...
