Quick Start Guide

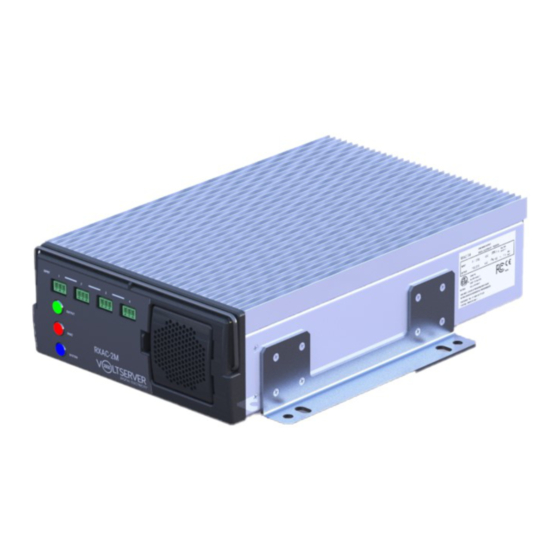

RXAC-2M
Digital Electricity Receiver, 1400W, 200VAC Output

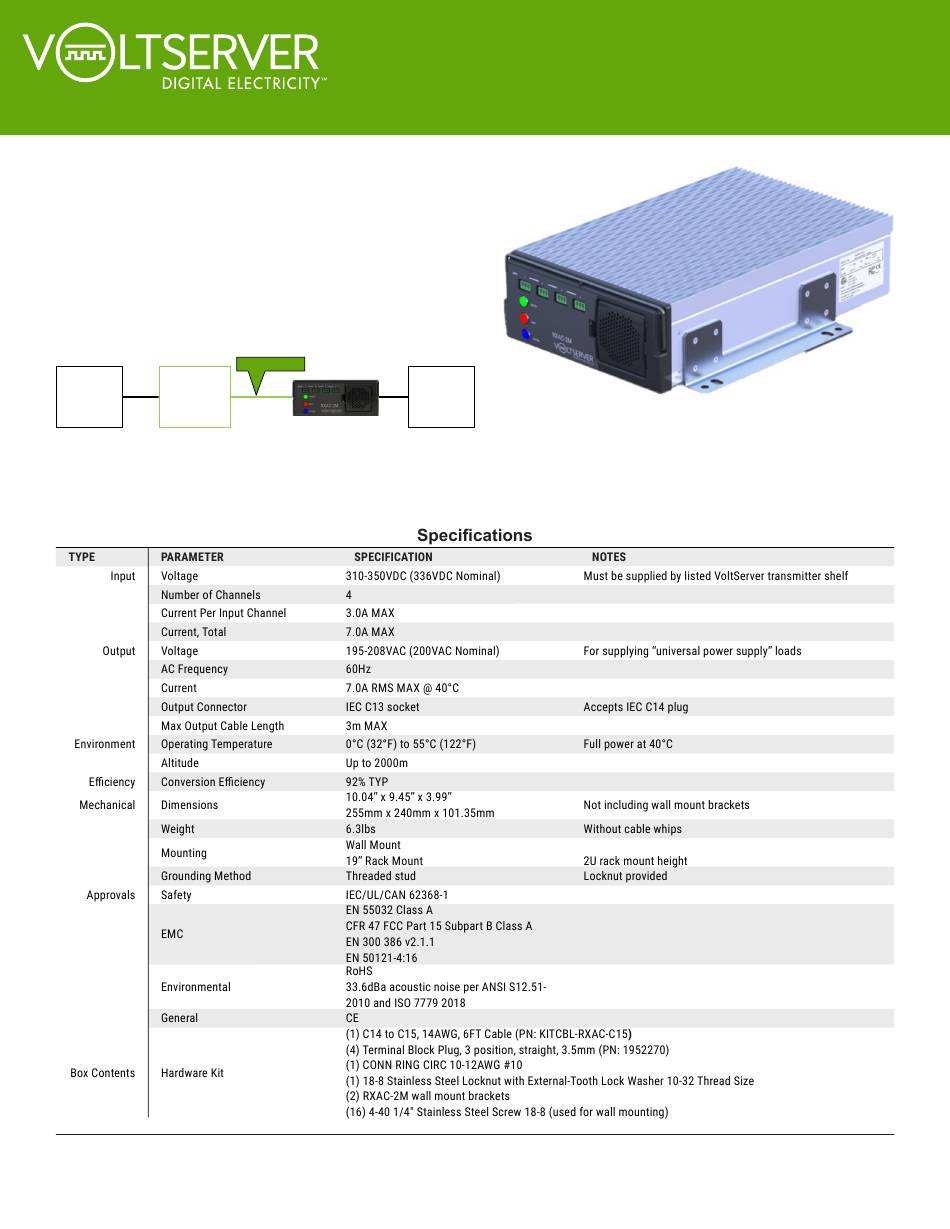

The RXAC-2M Receiver is a component in a Digital
Electricity™ line powering system. When paired with a
VoltServer transmitter unit, a Digital Electricity™ system
is formed (see diagram). If a person or a foreign
conductor comes in contact with the DE wiring, power is
disconnected; preventing fire, equipment damage and
personal injury. The RXAC-2M is a listed product,
certified to safety and EMC standards by a Nationally
Recognized Test Laboratory.
DE Cable
Input
Digital
Load
Power
Electricity
Device(s)
RXAC-2M Receiver
Source
Transmitter
RXAC -2M Digital
Electricity Receiver
Digital Electricity™ is a Limited Power Source per IEC/UL/CAN 62368-1 suitable for supplying a Class 2 circuit under NEC
Art. 725 and CEC Rule 16-200. (NOTE: Always follow local codes).
Customer Support: support@voltserver.com | 888-622-8658, Option 1
Rev B
1 of 8
VoltServer Inc. | www.voltserver.com | contact@voltserver.com
Advertisement
Table of Contents
Summary of Contents for VOLTSERVER Digital Electricity RXAC-2M
- Page 1 The RXAC-2M Receiver is a component in a Digital Electricity™ line powering system. When paired with a VoltServer transmitter unit, a Digital Electricity™ system is formed (see diagram). If a person or a foreign conductor comes in contact with the DE wiring, power is disconnected;...
- Page 2 RXAC-2M Quick Start Guide Detailed Dimensions without brackets inches [mm] Front View [190.50] [79.25] Side View [308.10] Customer Support: support@voltserver.com | 888-622-8658, Option 1 Rev B 2 of 8 VoltServer Inc. | www.voltserver.com | contact@voltserver.com...
- Page 3 Detailed Dimensions with wall-mount brackets inches [mm] [193.29] Front View [81.28] [308.10] Side View [7.14] [7.95] Top View [143.00] [172.21] [218.19] [238.76] Customer Support: support@voltserver.com | 888-622-8658, Option 1 Rev B 3 of 8 VoltServer Inc. | www.voltserver.com | contact@voltserver.com...
- Page 4 RXAC-2M Quick Start Guide Detailed Dimensions 2x RXAC-2M mounted in RXAC-SHELF inches [mm] Front View [492.00] [87.88] Top View Chassis Ground [359.92] Customer Support: support@voltserver.com | 888-622-8658, Option 1 Rev B 4 of 8 VoltServer Inc. | www.voltserver.com | contact@voltserver.com...
- Page 5 VoltServer TX Transmitter and RX of pressure coming from the fan grate. Contact Receiver(s) must be a minimum of 300Vrms. VoltServer customer support to make them aware of the fault and request a replacement fan module. WARNING! Replacement fan module: SKU-FAN-MODULE...
- Page 6 Physical Installation The RXAC-2M is designed to be mounted to a wall using the included wall-mount brackets, or to be mounted in a 19” rack using a VoltServer rack-mount PIN 1 shelf (sold separately). When wall mounting, the RXAC- 2M should have a minimum of 6” clearance around the unit and should not be mounted directly above a heat source.
- Page 7 Check load for short circuit or ground fault Internal error, recoverable Recoverable Failure 7 Blinks Restart receiver Internal hardware Failure Internal Failure 8 Blinks Contact VoltServer Customer Support: support@voltserver.com | 888-622-8658, Option 1 Rev B 7 of 8 VoltServer Inc. | www.voltserver.com | contact@voltserver.com...
- Page 8 RXAC-2M Quick Start Guide Document Revision History Revision Date Description Initial release Specs table re-format; added product photo, box contents; 12/1/2020 harmonized language Customer Support: support@voltserver.com | 888-622-8658, Option 1 Rev B 8 of 8 VoltServer Inc. | www.voltserver.com | contact@voltserver.com...
