#9107B

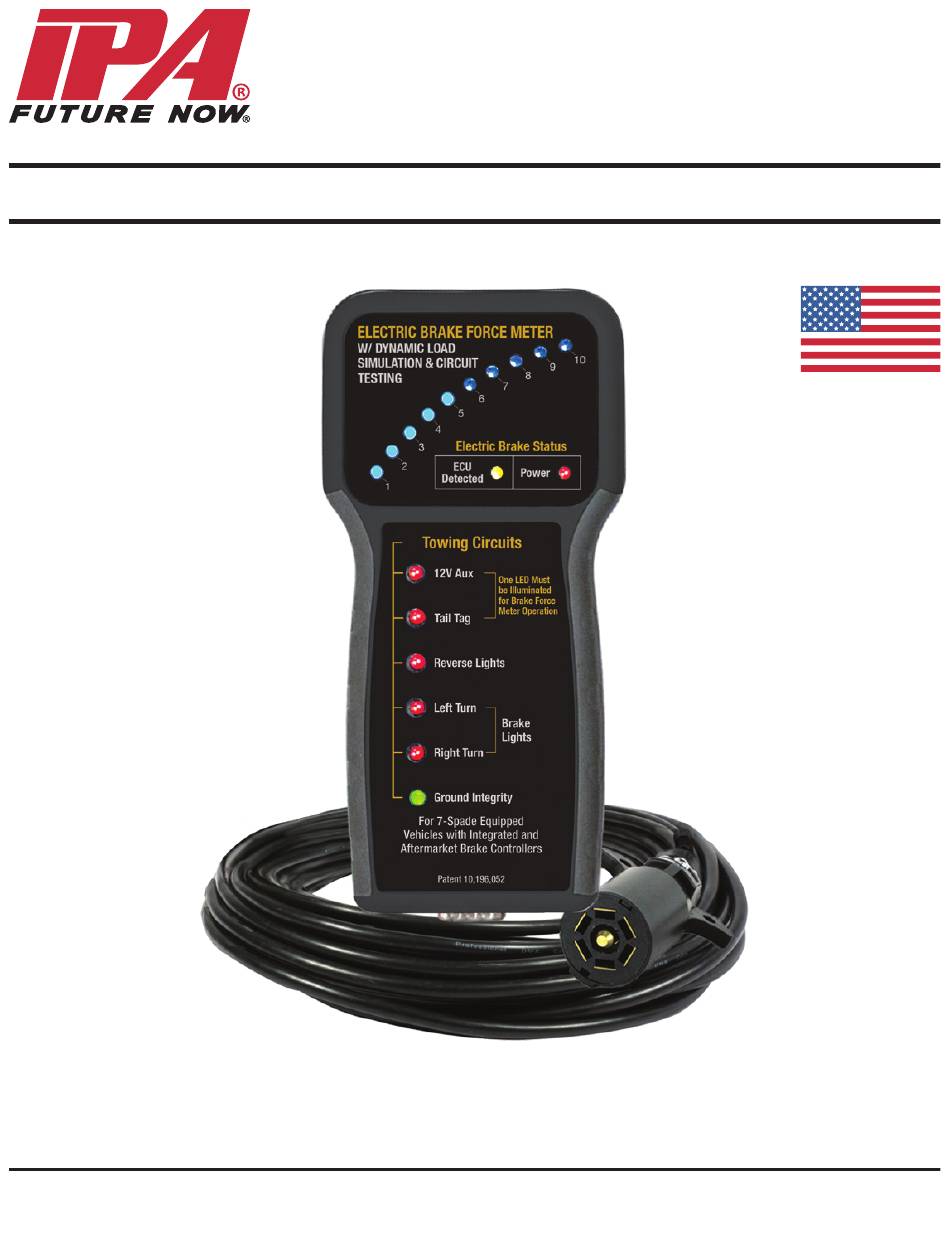

ELECTRIC BRAKE FORCE METER WITH
DYNAMIC LOAD SIMULATION AND CIRCUIT TESTING
OPERATOR'S MANUAL
MADE IN USA
OF GLOBAL
COMPONENTS
For 7-Spade Equipped Vehicles with
Integrated and Aftermarket Brake Controllers
Innovative Products of America
Incorporated
®
888-786-7899 • 234 Tinker Street, Woodstock, NY 12498 • www.ipatools.com
Advertisement
Table of Contents
Related Manuals for iPA 9107B
Summary of Contents for iPA 9107B
- Page 1 #9107B ELECTRIC BRAKE FORCE METER WITH DYNAMIC LOAD SIMULATION AND CIRCUIT TESTING OPERATOR’S MANUAL MADE IN USA OF GLOBAL COMPONENTS For 7-Spade Equipped Vehicles with Integrated and Aftermarket Brake Controllers Innovative Products of America Incorporated ® 888-786-7899 • 234 Tinker Street, Woodstock, NY 12498 • www.ipatools.com...

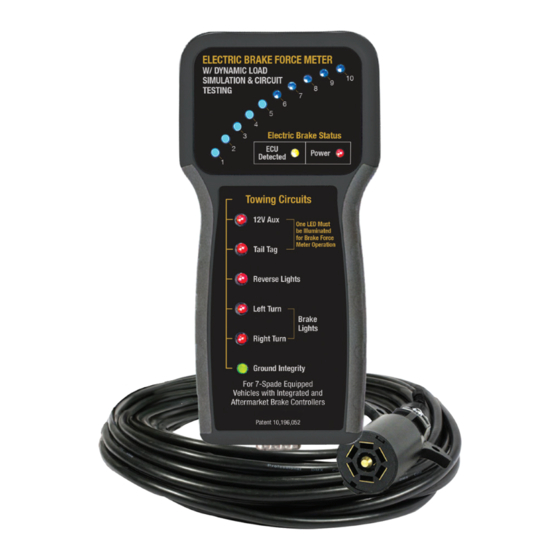

- Page 2 Right Turn Ground Integrity Ground Integrity For 7-Spade Equipped Vehicles with Integrated and Aftermarket Brake Controllers Multiple Patents Pending #9107B-AS INCLUDED PARTS AND ACCESSORIES Soft Case 25 ft. 7-Flat Pin Cable #9107-3 #KCBL-9107-AS Use the Provided Reference Numbers When Ordering Products and Parts Above...
- Page 3 COMPATIBILITY The #9107B Electric Brake Force Meter with Dynamic Load Simulation and Circuit Testing is designed to work with most all year/make/model vehicles equipped with 7-spade trailer connections including newer Ford and GM vehicles. If you suspect the Electric Brake Force Meter does not work with your application, please call us at 845-679-4500.
- Page 4 8. For vehicles equipped with integrated controllers, look for the words "Trailer Connected" on your instrument panel and the ECU Detection light to remain steady within a few seconds of connecting the #9107B to a vehicle with the engine running.
- Page 5 This start-up sequence can be monitored by watching the LED lights on the tool flicker on and off in sequence. The entire start-up sequence should take less than 30 seconds. For questions or support, please contact IPA at 845-679-4500, or email tech247@ipatools.com.
- Page 6 ECU DETECTION LIGHT The ECU Detected light indicates when the Electric Brake Force Meter detects a discovery pulse signal from the vehicle being tested. Modern vehicles with integrated controllers, as well as some aftermarket controllers, limit output to the Trailer Electric Brake circuit (blue wire) until they determine a trailer is connected.
- Page 7 CIRCUIT FAULT TROUBLESHOOTING When a circuit fault has been detected, the #9107B can monitor individual circuits while troubleshooting and repairing the vehicle. Circuit Type of Fault Diagnostic Procedure Check for faulty connection, fuse, No indication when energized wiring fault or controller gain too low...
- Page 8 LIMITED ONE-YEAR WARRANTY #9107B Electric Brake Force Meter with Dynamic Load Simulation and Circuit Testing Innovative Products of America Incorporated has established a Limited One-Year ® Warranty Policy for the Electric Brake Force Meter w/ Dynamic Load Simulation and Circuit Testing, not including any wearable parts, i.e. batteries (30 day warranty), battery clips, etc.
