Summary of Contents for Teknoline TSIP-24

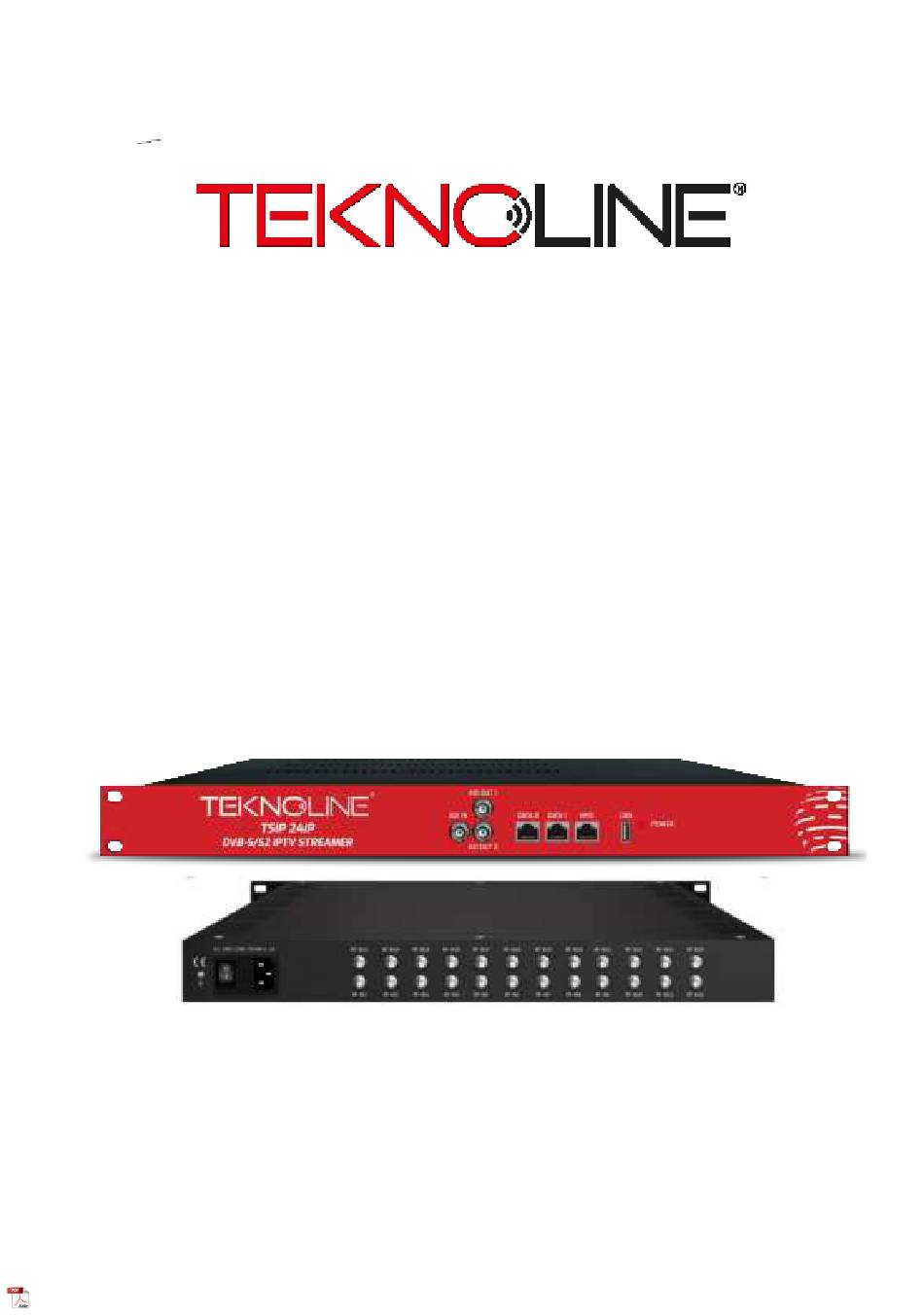

- Page 1 TSIP-24 IP Tuner to IP Gateway User’s Manual...
-
Page 2: Table Of Contents
CHAPTER 1 PRODUCT OUTLINE ....................1 1.1 Outline ................................1 1.2 Features ................................1 1.3 Inner Principle ............................... 2 1.4 Specifications ..............................2 1.5 Appearance and Description .......................... 3 CHAPTER 2 INSTALLATION GUIDE .................... 5 2.1 Acquisition Check ............................5 2.2 Installation Preparation .......................... -
Page 3: Chapter 1 Product Outline
Chapter 1 Product Outline 1.1 Outline TSIP-24 IP Tuner to IP Gateway is a head-end interface conversion device which supports MPTS and SPTS output switchable. It supports 24 MPTS or 512 SPTS output over UDP and RTP/RTSP protocol. It is integrated with tuner demodulation (or ASI input) -
Page 4: Inner Principle
TSIP-24 IP Tuner to IP Gateway User’s Manual 1.3 Inner Principle 1.4 Specifications Input 24 tuners input +1 ASI input---SPTS/MPTS output Frequency In 950-2150MHz Symbol rate 0.5 ~ 45Msps Signal Strength - 65- -25dBm DVB-S 1/2, 2/3, 3/4, 5/6, 7/8... -
Page 5: Appearance And Description
TSIP-24 IP Tuner to IP Gateway User’s Manual 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10, 2/3-L, 32/45, 11/15, Constellation QPSK, 8PSK, 8APSK, 16APSK, 32APSK ≤125 Mbps Max input bitrate BISS Mode 1, Mode E (Up to 850Mbps) (descramble individual program) Descrambling... - Page 6 TSIP-24 IP Tuner to IP Gateway User’s Manual Rear Panel Illustration 24 channels RF IN Interface Integrated power switch and socket Grounding Wire...
-
Page 7: Chapter 2 Installation Guide
TSIP-24 IP Tuner to IP Gateway User’s Manual Chapter 2 Installation Guide 2.1 Acquisition Check When users open the package of the device, it is necessary to check items according to packing list. Normally it should include the following items: ... - Page 8 TSIP-24 IP Tuner to IP Gateway User’s Manual Item Requirement When user installs machine frame array in one machine hall, the Machine Hall Space distance between 2 rows of machine frames should be 1.2~1.5m and the distance against wall should be no less than 0.8m.
-
Page 9: Wire's Connection
When the device adopts united way, the grounding resistance should be smaller than 1Ω. Caution: Before connecting power cord to TSIP-24 IP Tuner to IP Gateway, user should set the power switch to “OFF”. -
Page 10: Chapter 3 Web Nms Operation
Chapter 3 WEB NMS operation User can only control and set the configuration in computer by connecting the device to web NMS Port. User should ensure that the computer’s IP address is different from the TSIP-24’s IP address; otherwise, it would cause IP conflict. - Page 11 TSIP-24 IP Tuner to IP Gateway User’s Manual System information User can click any item here to enter Figure-2 the corresponding interface to check information or set the parameters. Parameter→ Tuner input (DVB-S2/S2X) From the menu on top side of the webpage, click “Tuner”, it displays the interface where users can check the 24 DVB-S/S2/S2X Tuners input status.
- Page 12 TSIP-24 IP Tuner to IP Gateway User’s Manual Figure-5 Parameter→ BISS From the menu on left side of the webpage, clicking “BISS”, it displays the interface where users can configure BISS and descramble the input channels (Figure-6). Figure-6 Users can set BISS parameter through click ”Add” button.
- Page 13 TSIP-24 IP Tuner to IP Gateway User’s Manual Parameter → Output: From the menu on left side of the webpage, clicking “Output”, it displays the interface where users can choose 24 DVB-S/S2/S2X Tuner input and 1 ASI Input programs to output from IP.
- Page 14 TSIP-24 IP Tuner to IP Gateway User’s Manual System → Network: Clicking “Network”, it displays the interface as Figure-10 where to set network parameters. Set NMS IP address, the default address 192.168.0.136 Set GE1 IP address Set GE2 IP address Figure-10 System →...
- Page 15 TSIP-24 IP Tuner to IP Gateway User’s Manual System → Configuration: From the menu on left side of the webpage, clicking “Configuration”, it displays the screen as Figure-12 where to save /restore/Factory Set/Backup/Load your configurations. Figure-12 System → Firmware: From the menu on left side of the webpage, clicking “Firmware”, it displays the screen as Figure-13 where to update firmware for the device.
- Page 16 TSIP-24 IP Tuner to IP Gateway User’s Manual System → Date/time: From the menu on left side of the webpage, clicking “Date/time”, it displays the screen as Figure-14 where to update Date and time information for the device. Figure-14 System → Log: From the menu on left side of the webpage, clicking “Log”, it displays the screen as...
